Edge Lighting 2x300W/12V Magnetic Remote Transformer - Manual (Page 6)

6

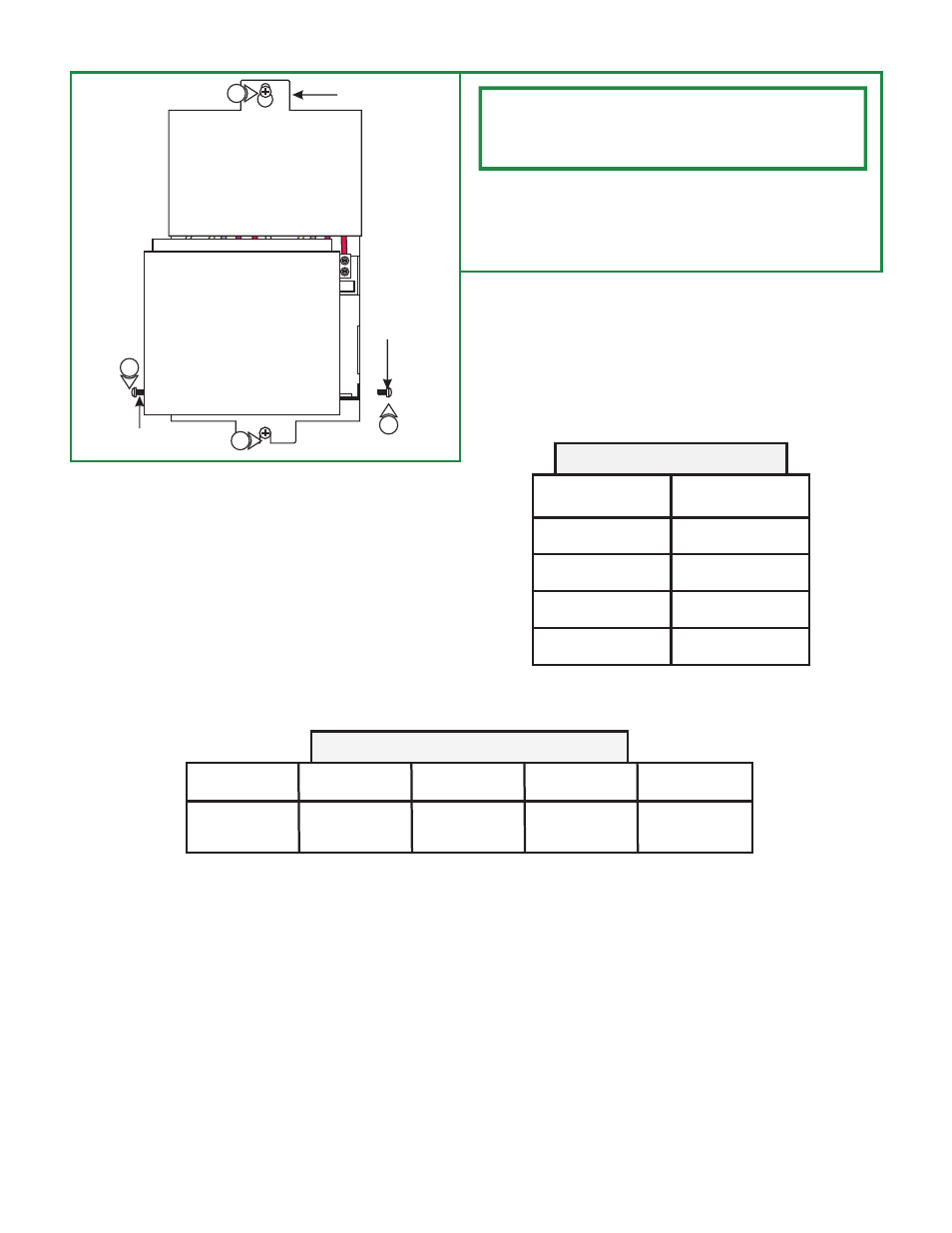

TRANSFORMER COVER
PHILLIPS
SCREW
2
COMT T1 T2 T3 T4 COMP P1 P2 P3 P4
TRANSFORMER
BRACKET
1
2
1
G
1: Use the transformer brackets to secure the transformers in
place (hardware not included).
2: Loosen and remove the two Phillips screws on the sides of
each transformer to remove the transformer cover.
NOTE: In order to use small gauge wires from the transformer
to the electrical box, it is recommended to install the remote
transformers as near as possible to the electrical box. See "Low
Voltage Wire Size Chart" on page 3.
TERMINAL TAP CHART
PRIMARY POWER
INPUT VOLTAGE TERMINAL TAP
TO BE USED
105-109 T4
110-114
115-120
121-125
T3
T2
T1
LOW VOLTAGE WIRE SIZE CHART
TRANSFORMER
WATTAGE WIRE SIZE
FOR 5 FT WIRE SIZE
FOR 6-15 FT WIRE SIZE
FOR 16-20 FT WIRE SIZE
FOR 21-40 FT
300 WATT #10 GA #6 GA #4 GA #1 GA
