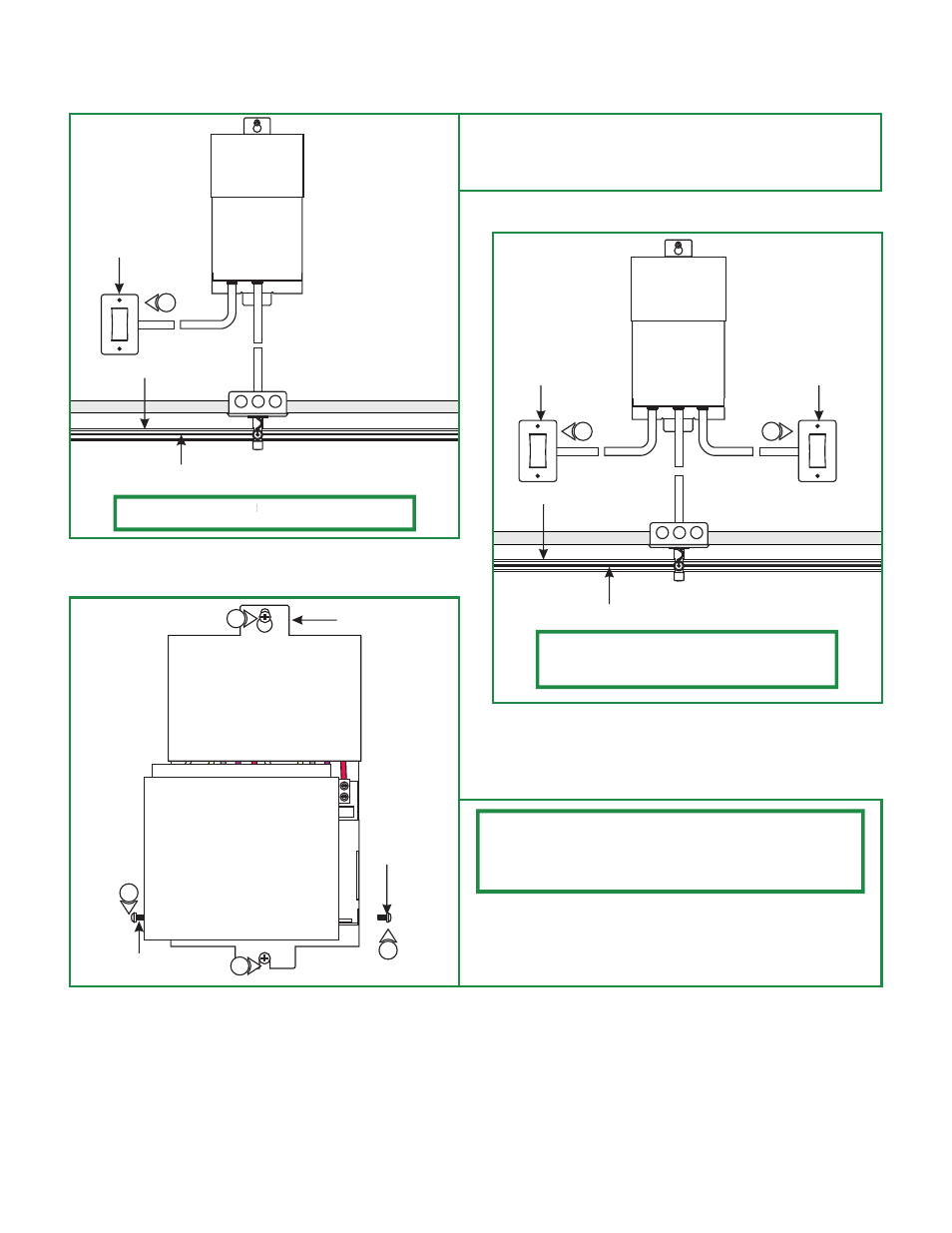

Installing the 120V wires to the T-2X300 Transformer
A1
CIRCUIT 1
CIRCUIT 2
SWITCH 1
Switch 1 turns on/off both Circuits.
CIRCUIT 2
CIRCUIT 1
SWITCH 1 SWITCH 2
Switch 1 turns on/off Circuit 1 and
Switch 2 turns/off Circuit 2.
A2
1: Select one of the two possible switching options that fits the
design.
2: Turn off the electrical power at the panel.
B
TRANSFORMER COVER
PHILLIPS
SCREW
4
COMT T1 T2 T3 T4 COMP P1 P2 P3 P4
TRANSFORMER
BRACKET
3
4
3
3: Use the transformer brackets to secure the transformer in
place (hardware not included).
4: Loosen and remove the two Phillips screws on the sides of
the transformer to remove the transformer cover.
NOTE: In order to use small gauge wires from the transformer
to the electrical box, it is recommended to install the remote
transformers as near as possible to the electrical box. See "Low
Voltage Wire Size Chart" on page 3.
