Edge Lighting Cirrus Float for Monorail - Manual (Page 4)

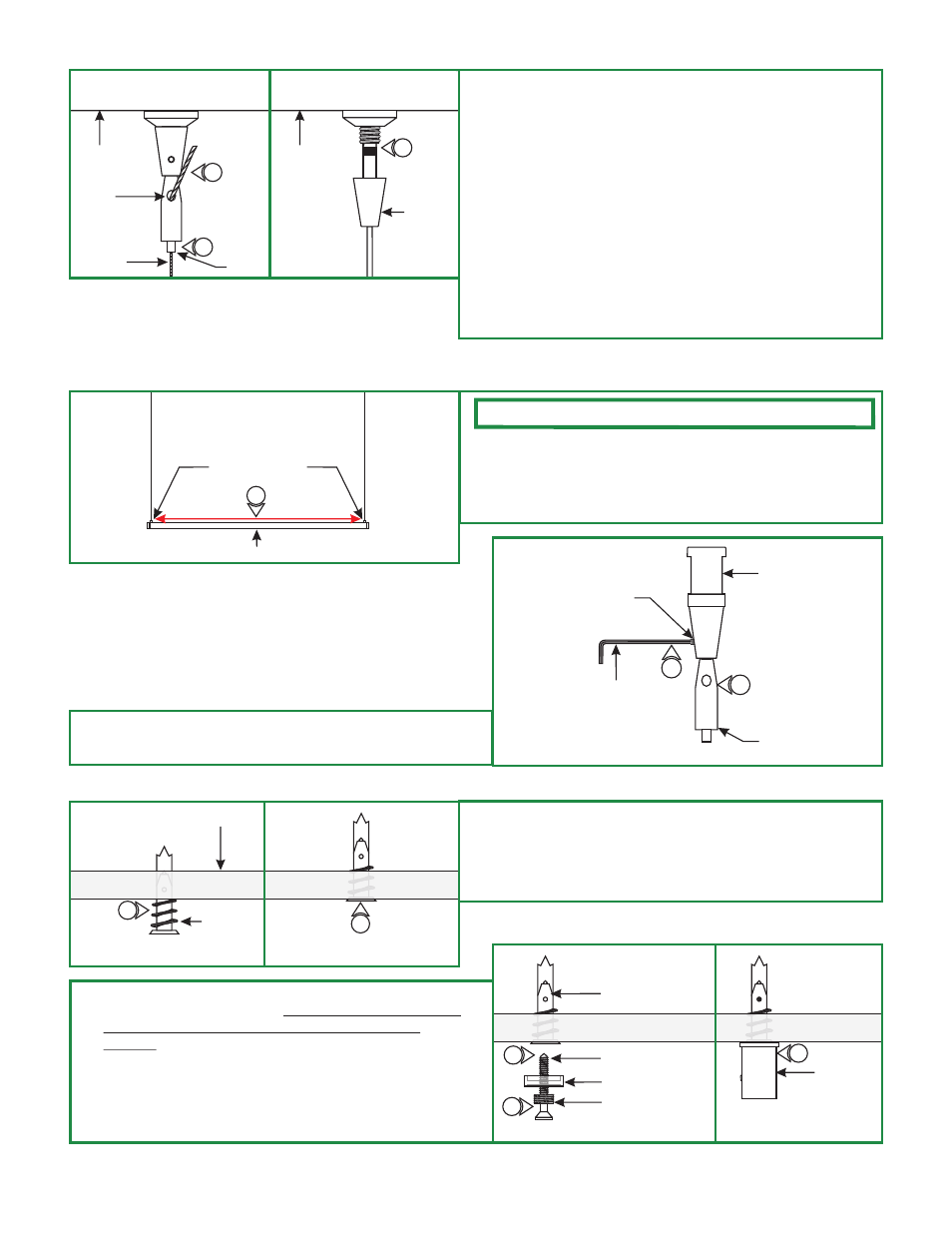

Install Cirrus Float to Single or Multi Port Fast Jack Canopies
9: Push the tab on the adjustable connector and feed the
aircraft cable through the tab.
10: Pull the aircraft cable coming out of the side of the
adjustable connector.
11: When desired height is achieved release the tab to lock the
aircraft cable in place.
12: Use fingers to tighten the Fast Jack fixture connector into
the Fast Jack canopy.
13: If necessary, repeat steps 9 through 11. Trim off excess
aircraft cable coming out of the adjustable connector side
hole for a neat finished look.
4
1: Measure the distance between the center of the coaxial
cable post and the aircraft cable post. This measurement
varies based on the fixture length. Use the measured
distance to mark the location of the aircraft post onto the
ceiling.
NOTE: Make sure that the Fast Jack canopy is installed.
TAB
SIDE
HOLE
AIRCRAFT
CABLE
12
CANOPY
FAST
JACK
CONNECTOR
M
CANOPY
9
10
N
M3 SET SCREW
1.5MM ALLEN
WRENCH
ADJUSTABLE
CONNECTOR
2
O
2: Loosen the M3 set screw on the adjustable post with the
1.5mm Allen wrench to remove the adjustable connector
from the Monorail connector.
P
CEILING
3
4 ANCHOR
3: Tap the anchors onto the marked locations up to the
threaded portion with a hammer.
4: Screw in the threaded portion of the anchors with a Phillips
screwdriver.
Q
#8 SCREW
WASHER
THREADED
POST
ANCHOR
6 7
THREADED NIPPLE
5
5: Feed the #8 screw through the countersink side of the
threaded nipple and washer. Make sure the side of the
washer with deeper countersink is facing the
anchor.
6: Tighten the #8 screw completely into the anchor.
7: Tighten the threaded post completely onto the threaded
nipple.
1
MONORAIL
CONNECTOR
CIRRUS FLOAT CHANNEL
SLIDING POST
2
