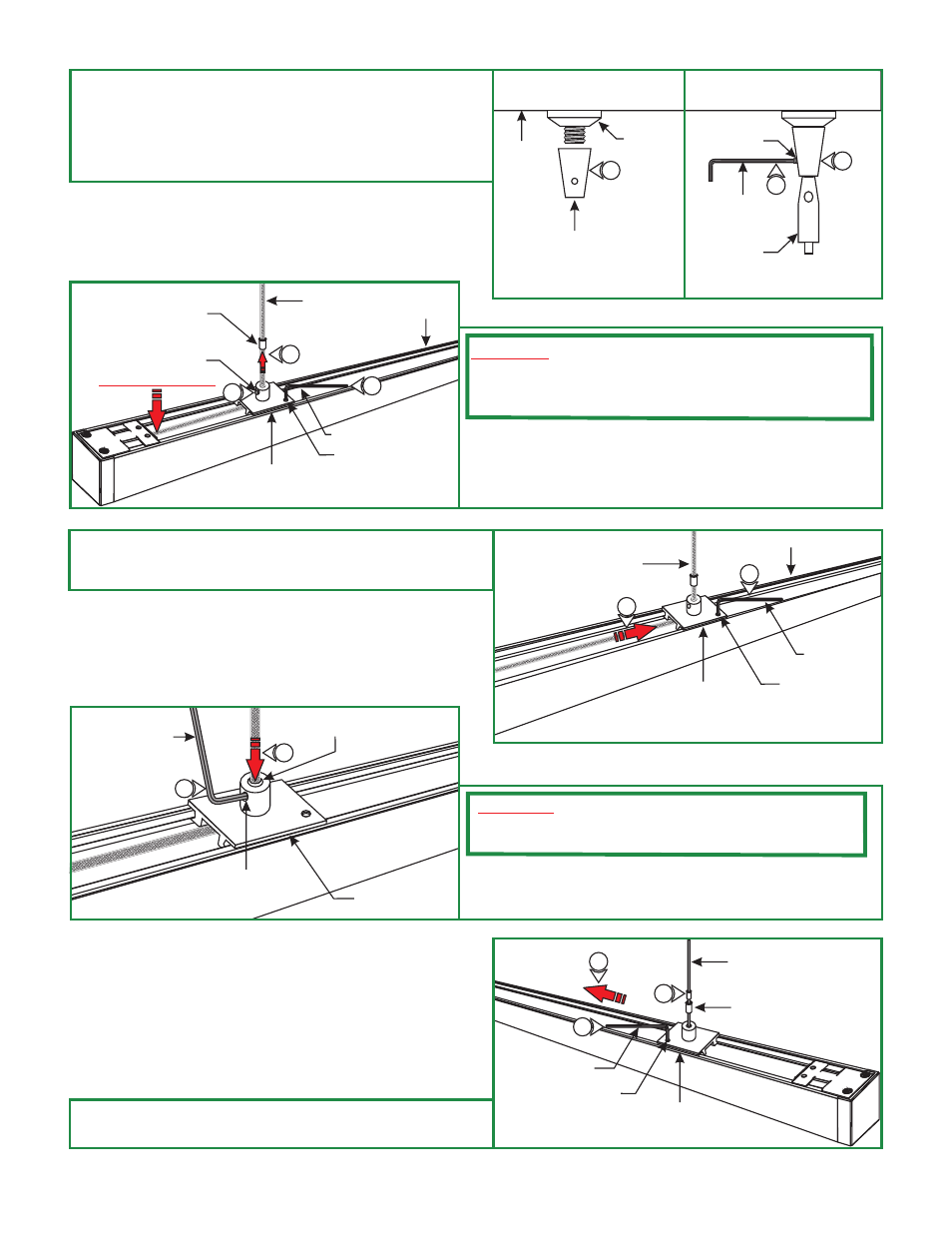

2: Screw the conical post provided with the fixture hardware
completely on to one of the Fast Jack ports.
3: Insert the adjustable connector completely into the conical
post and tighten the M3 set screw with the 1.5mm Allen
wrench.
4: Loosen (DO NOT REMOVE) the #4-40 set screw on the
sliding post bushing and bed with a 0.05" Allen wrench.
5: Slide the strain relief tube out of the sliding post using a pair
of needle-nose pliers.
WARNING: To avoid damaging the coaxial cable electrical
connection, make sure that the end of the coaxial cable coming
out of the fixture is held with thumb before relocating sliding
posts.
6: Carefully move the sliding post to the predetermined location
on channel and tighten the #4-40 set screw on the sliding
post bed with the 0.05" Allen wrench.
!CAUTION! Tightening the strain relief set screw CANNOT
BE REVERSED. Only tighten the set screw AFTER the cable
location is set properly.
7: Insert the strain relief tube back inside the sliding post
bushing and tighten the #4-40 set screw with the 0.05"
Allen wrench.
