DFI INFINITY CS (V- M3598/N/0906)

12

CF 70

Table 3-2 AC-Power Connections

WIRE COLORS
TB1 AC

POWER

EUROPE

USA

7

AC Line

Brown Black

8

AC Neutral

Blue White

9

AC Earth

Green/Yellow Green


Connect the DC main power connections as shown in Figure 3-12.

When using DC power, refer to Table 8-1 Color Chart in the Specifications Section for Display Color,
Intensity, Excitation Voltage and Current, and Analog Output Isolated Option. Failure to use proper ratings
may result in damaging the unit.

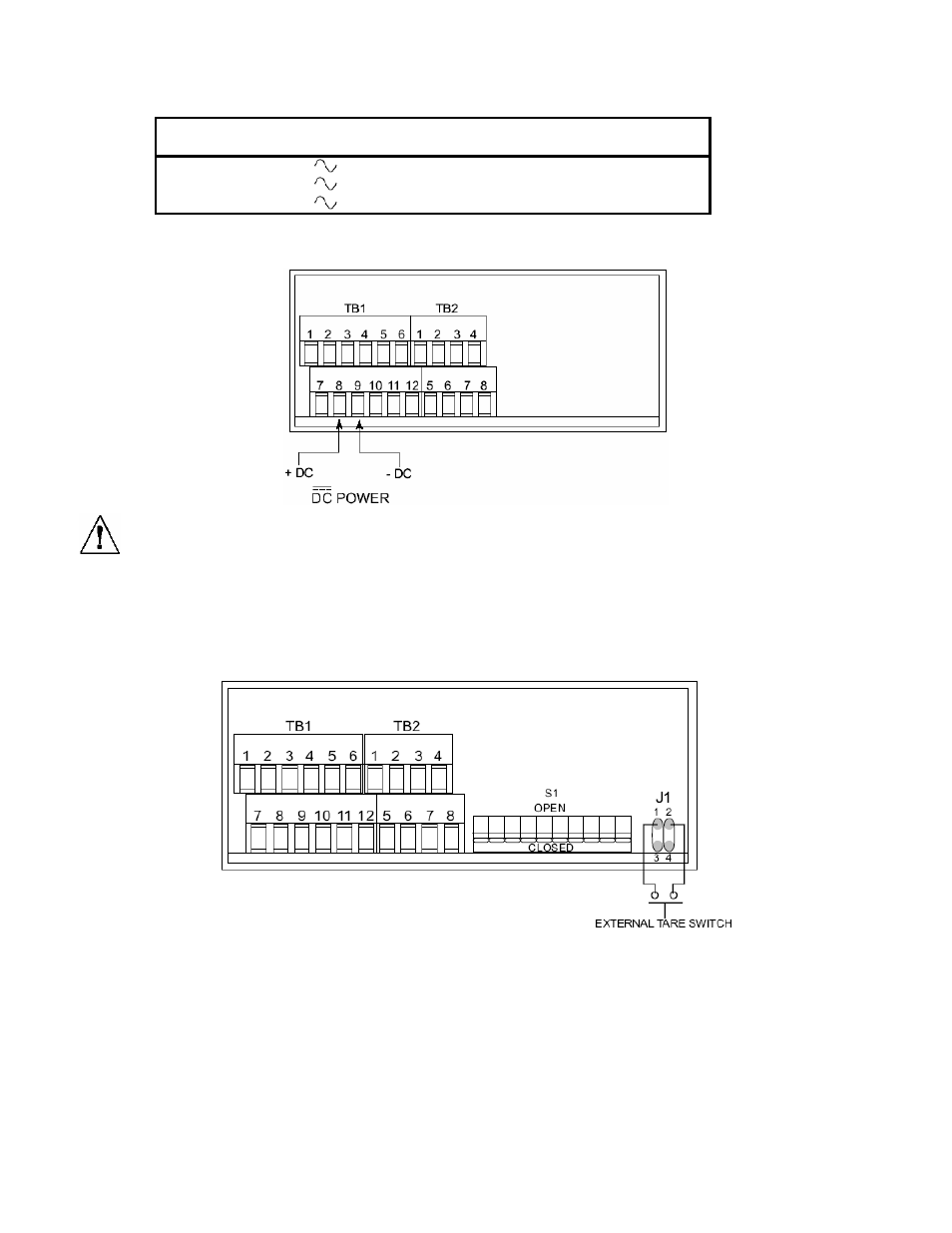

Figure 3-12 Main Power Connections DC

3.6 Connecting External Tare Switch

Connect external tare connections as shown in Figure 3-13.

Figure 3-13 External Tare Connections

3.7 Connecting Analog and Relay Outputs

If your have purchased a meter with analog or dual relay or isolated analog output, refer to the following drawings
for output connections.
