DFI INFINITY CS (V- M3598/N/0906)
11
CF 70

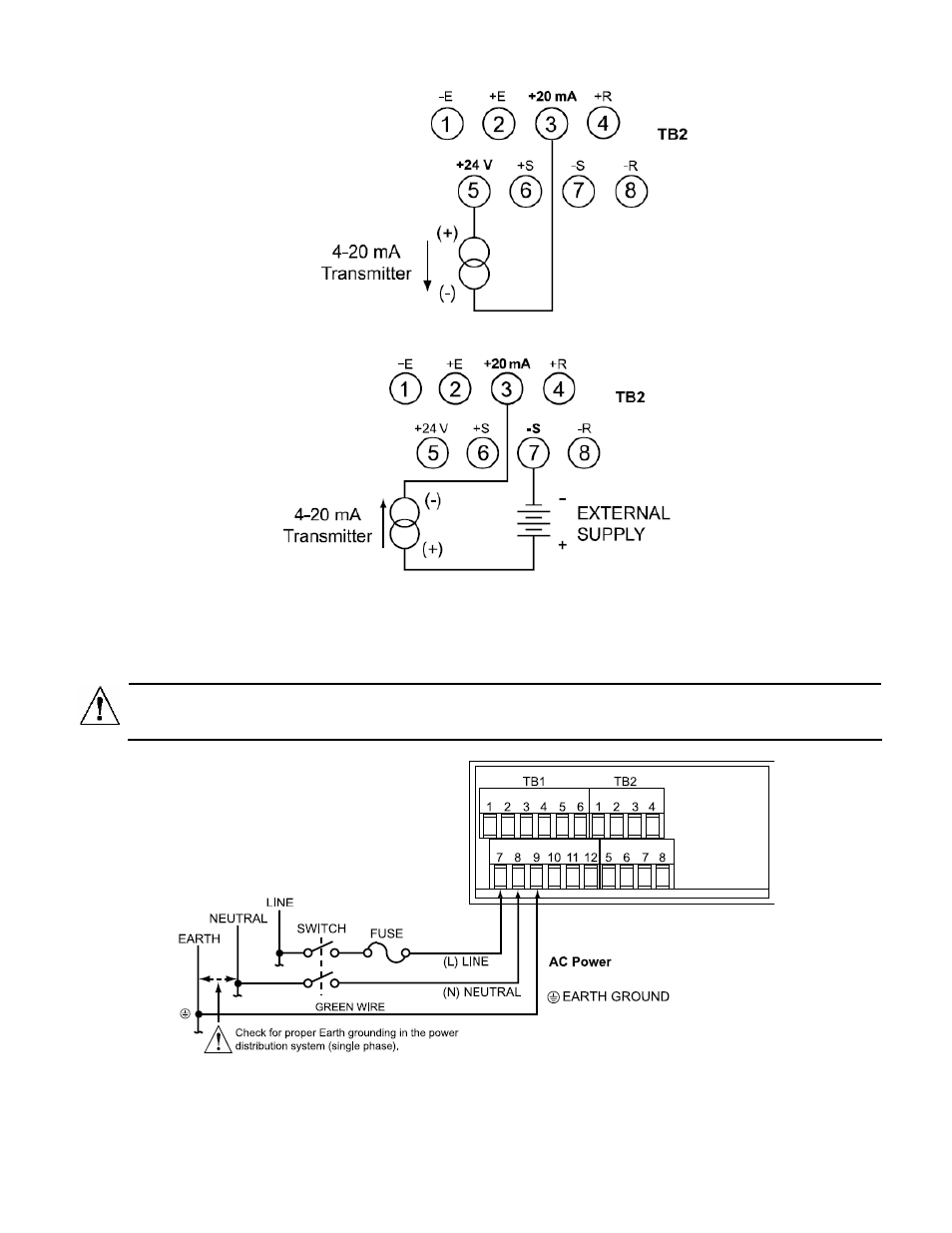

Figure 3-9 Current Input Connections with Internal Excitation
Figure 3-10 Current Input Connections with External Excitation
3.5 Connecting Main Power
Connect the AC main power connections as shown in Figure 3-11.
WARNING: Do not connect AC power to your device until you have completed all input and output
connections. This device must only be installed by a specially trained electrician with corresponding
qualifications. Failure to follow all instructions and warnings may result in injury!
Figure 3-11 Main Power Connections - AC
Table 3-2 shows the wire color and respective terminal connections for both USA and Europe.
