System Operation
Table 9. (continued)
Manual Mode Operation: UV Monitor
Reference Description
Set Max: Use this function to set a UV range other than that
selectable using Set Range. When the UV absorbance reading
reaches the maximum range set, the system delivers 1 volt to
the chart recorder. Enter a value between 2.0 and .001 AUFS.
Lamp: This turns the UV lamp on/off. You may want to leave
the BioLogic LP system ON but shut off the lamp when the sys-
tem is not in use. Method: <> Manual Operation
UV Lamp: On
(lamp on) LAMP OFF OK
M4
MU
Method: <> Manual Operation
UV Monitor: 0.0111 AU
Range: 1.000 AUFS
SET RANGE ZERO SET MAX LAMP
Method: <> Manual Operation
UV Monitor: 0.0111 AU
Range: 1.000 AUFS
INCREASE DECREASE CANCEL OK
sets the
current UV
reading to
0.0000 AU
press to set the
UV Monitor range
Method: <> Manual Operation
UV Monitor: 0.0111 AU
Max Range: 2.000 AUFS
CANCEL OK
Method: <> Manual Operation
UV Lamp: On
(lamp on) LAMP OFF OK
(return to MU)
(return to MU) (return to MU)
MU
MU MANUAL MODE: UV MONITOR
SET RANGE MENU
SET MAX MENU
M1
M3
M1
M2
M3
M4
LEGEND
Method: <> Manual Operation
UV Monitor: 0.0111 AU
Max Range: 2.000 AUFS
CANCEL OK
M3
MU
MU
(Turns Lamp
ON/OFF)

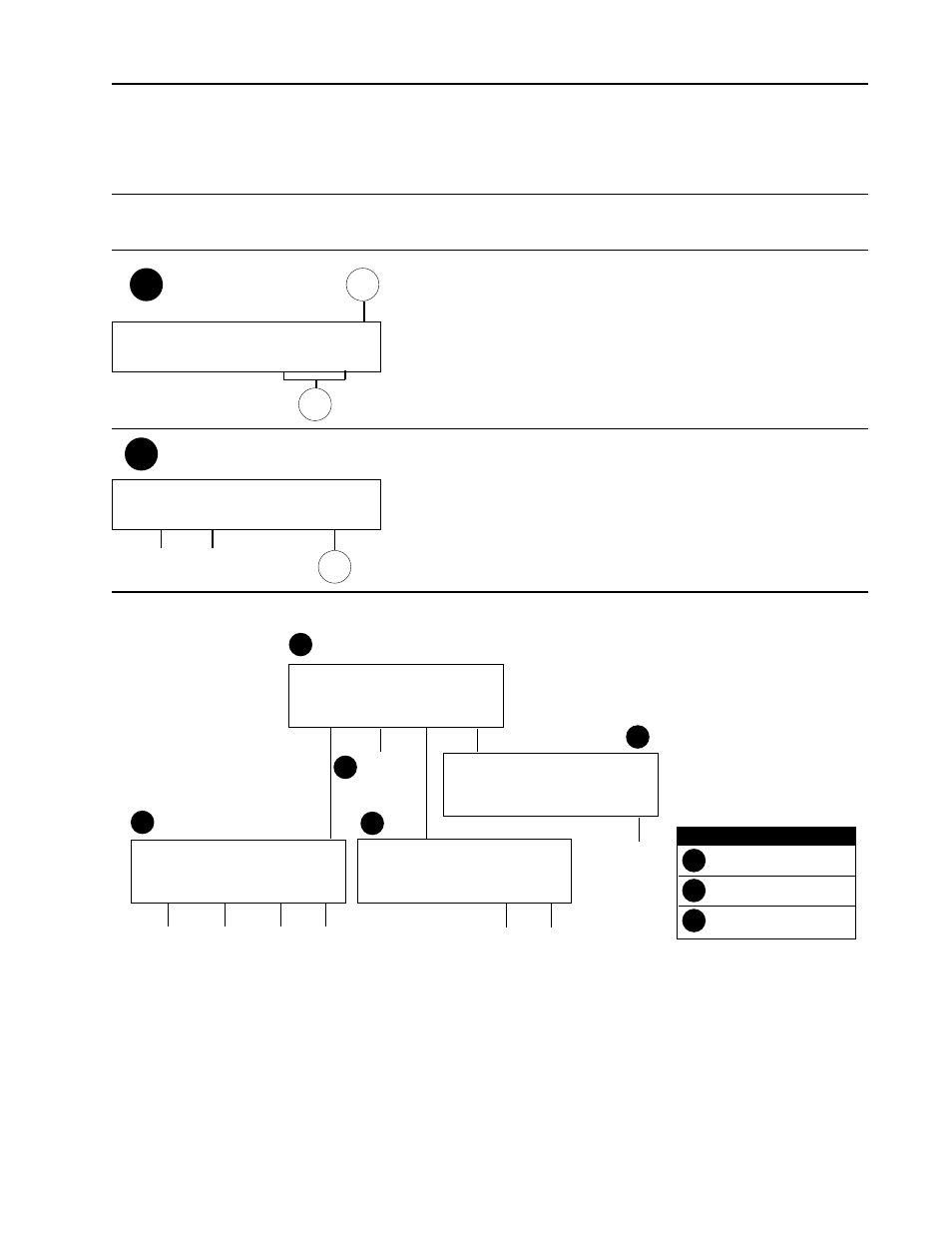

Figure 18. Manual Operation of the UV Monitor
(Screen displays are keyed to the discussion in Table 9, Manual Mode Operation : UV Monitor)
