D | Accessories
236 | ChemiDoc MP Imaging System with Image Lab Software

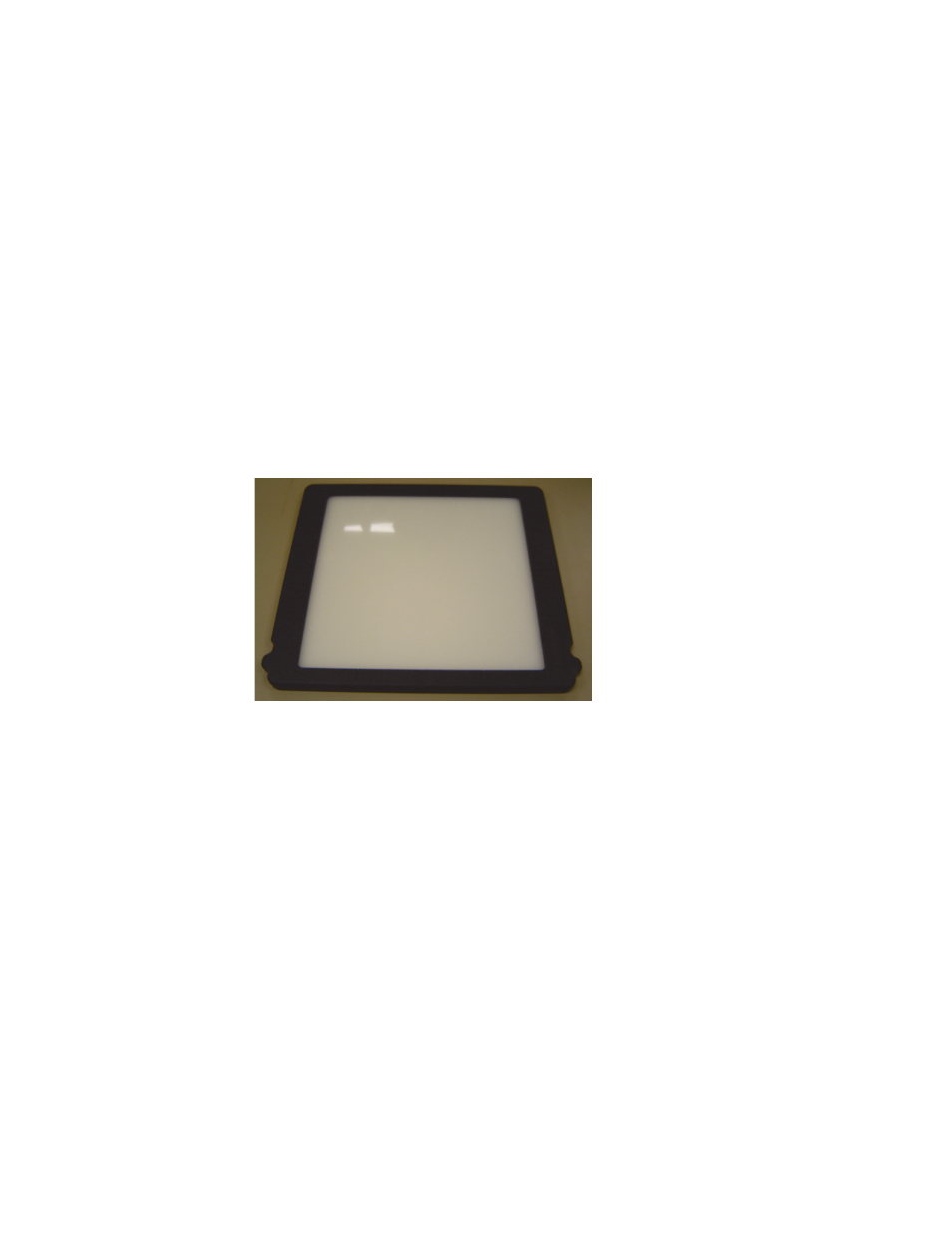

UV/White Light Conversion Screen
This optional white light conversion screen (catalog #170-8289) converts the UV
light generated in the universal hood to white light. Your imager must be calibrated
to use the white light conversion screen.
To use the white light conversion screen
1.
Center the conversion screen on the imager stage.
2.
Center your samples on top of the conversion screen.
3.
Image the gel using your preferred application.
