Fuse Replacement
User Guide | 215
Fuse Replacement
Always unplug the instrument before changing or checking the fuses.
This unit is protected by two fuses (5 x 20 mm, 2 A Slo-Blo). The fuses are located in
fuse holders housed in the power entry module. This module is located on the right
side of the back of the universal hood.
To replace the fuses
1. Unplug the main power cable from the power outlet.
2. Use a flat screwdriver to turn the slotted front of each fuse holder
counterclockwise; the holder pops out so you can extract the fuse.
3. Remove the blown fuses and replace them with two new fuses
(catalog #900-8935).
4. Slide each fuse holder into the power entry module until it snaps in place.

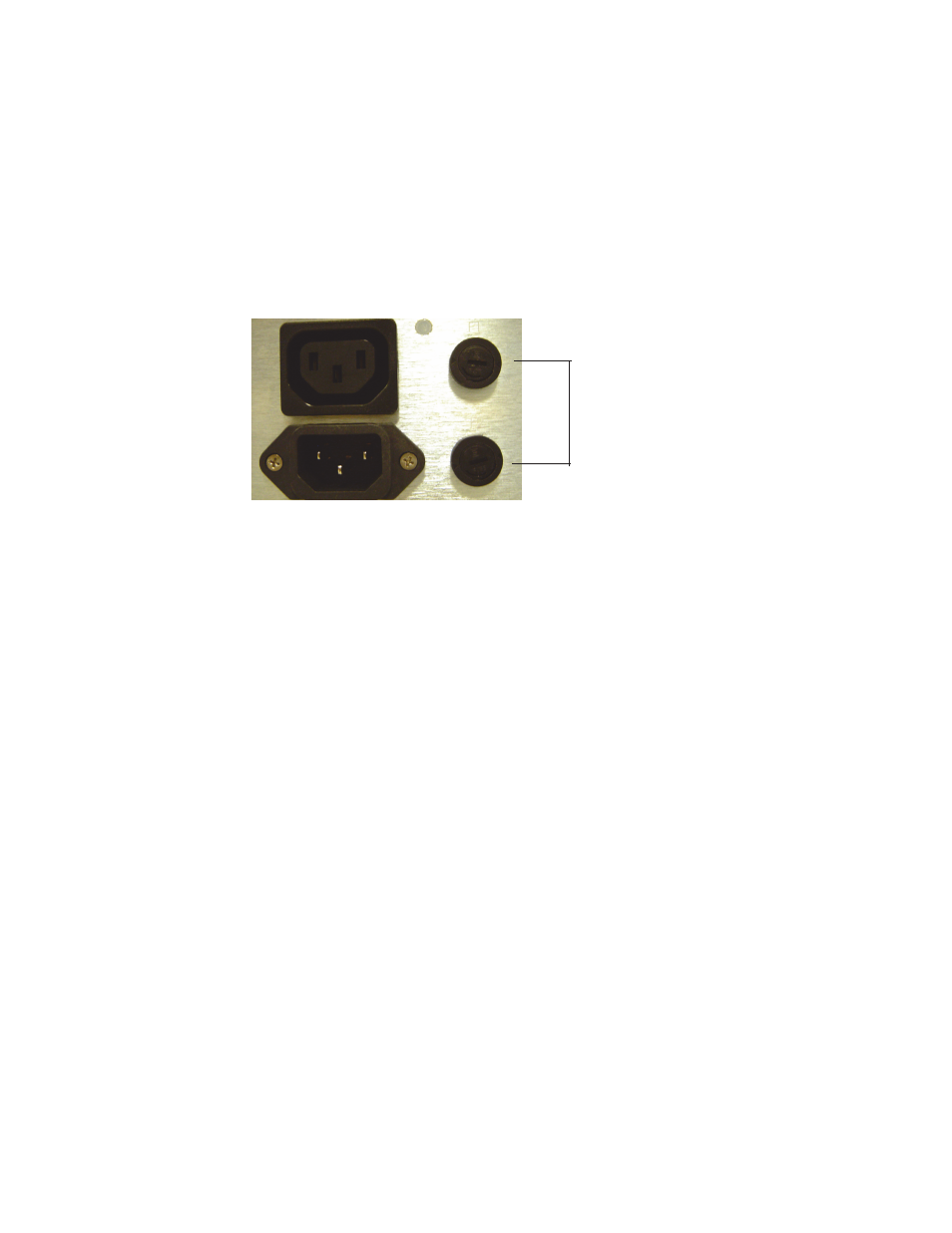

Fuse holders
