Displaying multichannel images – Bio-Rad Image Lab™ Software User Manual
Page 110
5 | Viewing Images
110 | ChemiDoc MP Imaging System with Image Lab Software

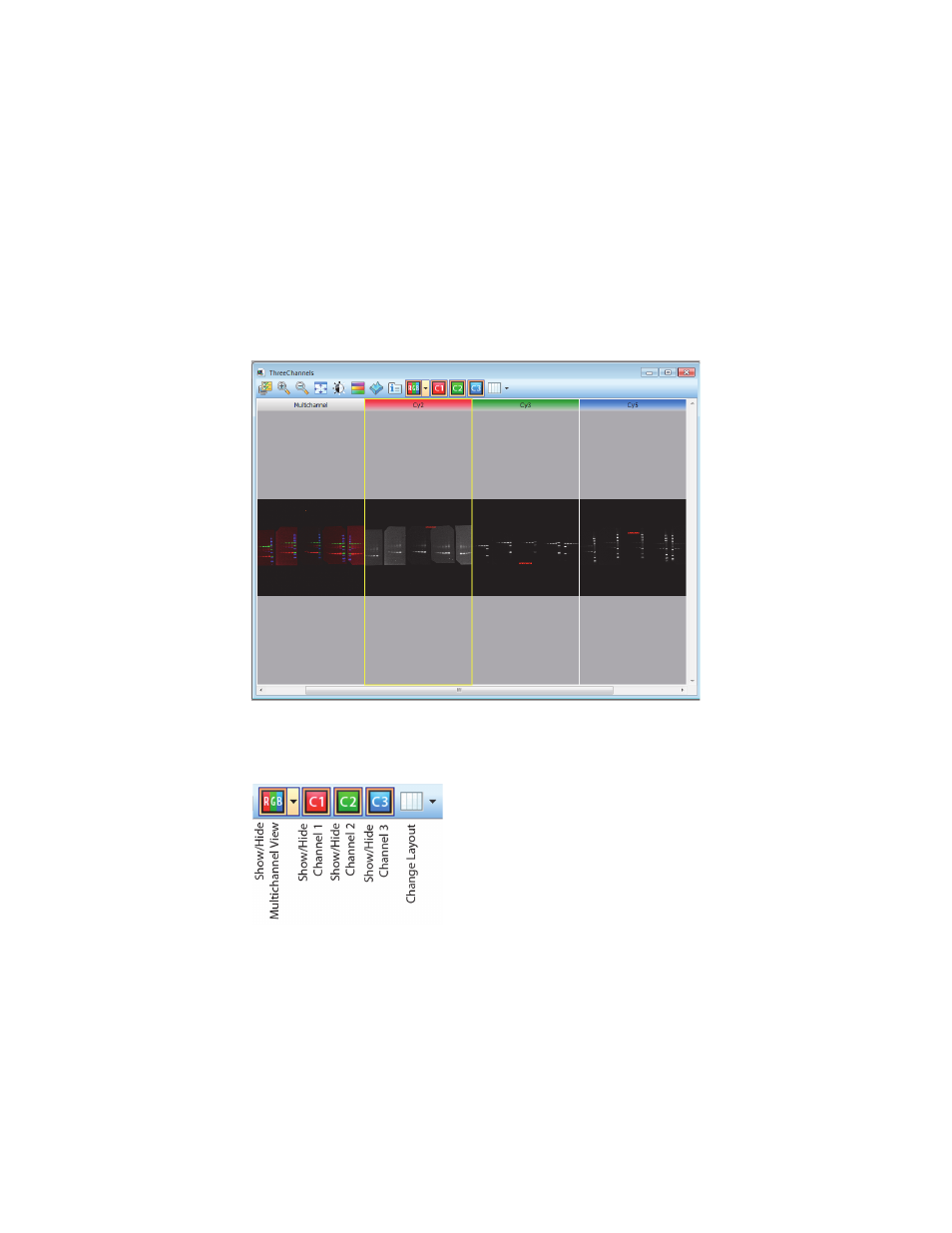

Displaying Multichannel Images
The Multichannel View includes a pane that displays the merged channels and
panes for individual channels. Application names appear in the toolbar. A yellow
border surrounds the active pane.
In the display toolbox above the image, additional controls are available for viewing
the multichannel image.
