Recalibrating your imager – Bio-Rad Image Lab™ Software User Manual
Page 188
9 | System Calibration
188 | ChemiDoc MP Imaging System with Image Lab Software
Recalibrating Your Imager
When you add light sources or filters to a ChemiDoc™ MP imager, recalibrate your
imager using the Instrument Setup dialog box.
To recalibrate your imager
1.

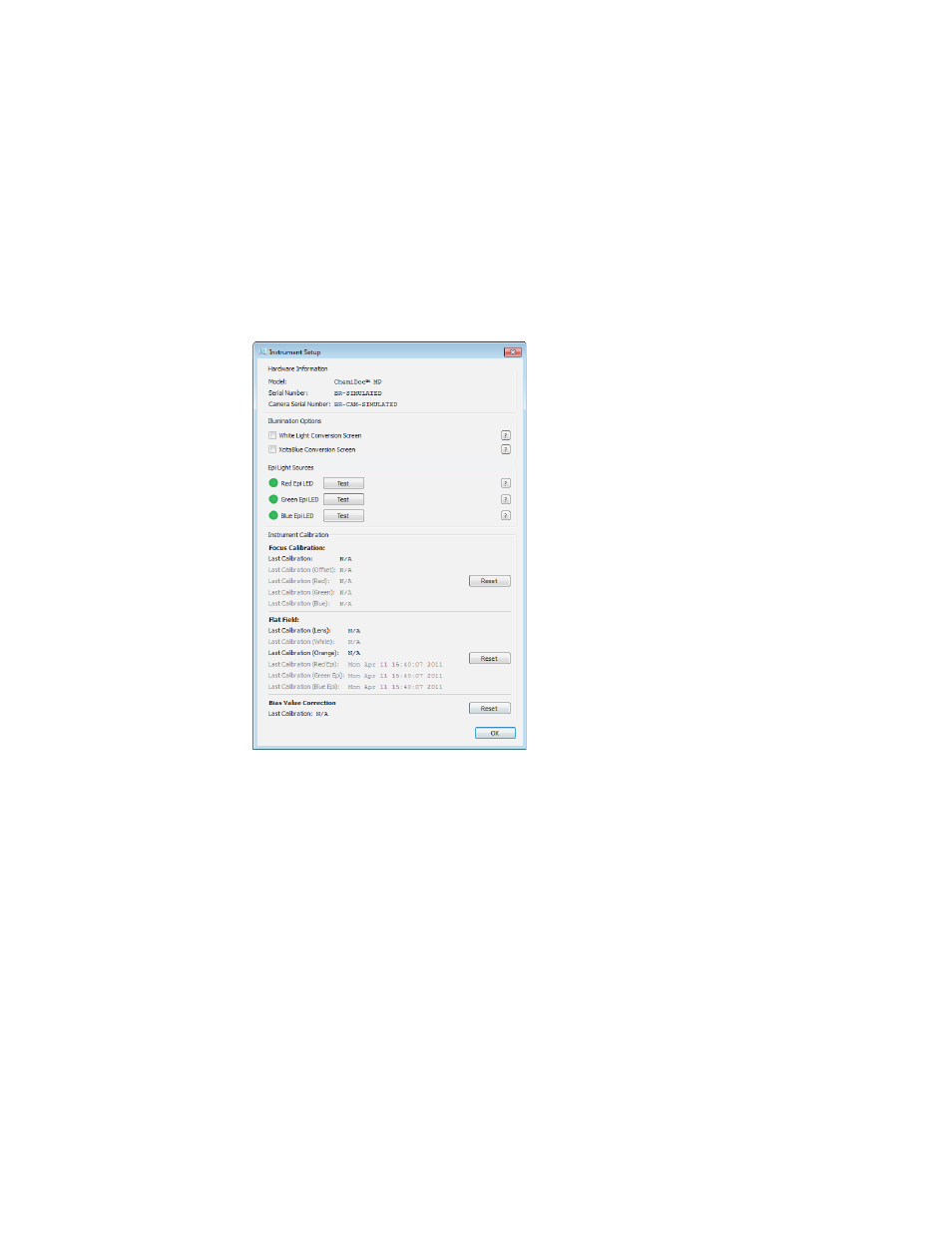

In Image Lab, click Edit > Instrument Setup to open the Instrument Setup dialog
box.
If you are adding a new light conversion screen (refer to
), select the appropriate box in the
Illumination Options field.
If you are adding additional filters, select the appropriate box in the Filter
Options field.
