1.
The compass calibration swing can be aborted at any time. To do
this press the enter key once. Next press the scroll down key
and change the value from ‘1’ to ‘0’.
2. You can re-calibrate at any time by following the above
procedures.
(1) If you have any constant error in your heading, you can correct
for this.
Enter the value to offset your heading e.g. if your heading
displays 100
°
and it should read 97
°
, then the value to enter
would be –3.
The M indicates Magnetic reference headings and a T will indicate True
referenced headings.
Heel Trim will be shown as the following:-
The H symbol will be placed on
left indicating heel to port and on
the right for heel to starboard.
The display will always be
shown to 1 decimal point
The U symbol on
the left indicates
that the bow is up,
while a d will be
shown indicating
bow down. The
display will always be shown to 1 decimal point
If you have any constant error in your heading, you can correct for this.
NAVIGATE
→ → HEEL, CALIBRATE → → CAL VAL 1
NAVIGATE
→ → TRIM, CALIBRATE → → CAL VAL 1
3.4.6 Halcyon Gyro Processor Setup
Data under the MISC
→ → HALCYON heading describes the setup of the
Halcyon Gyro Processor, and are as follows:
OFF No heading source from either a Halcyon Gyro Stabilised
Compass or a B&G system compass
GYRO Receiving data from Halcyon Gyro Stabilised Compass or
NMEA input to Halcyon Gyro Processor
SPD/DEP PAGE
WIND
NAV
RESET

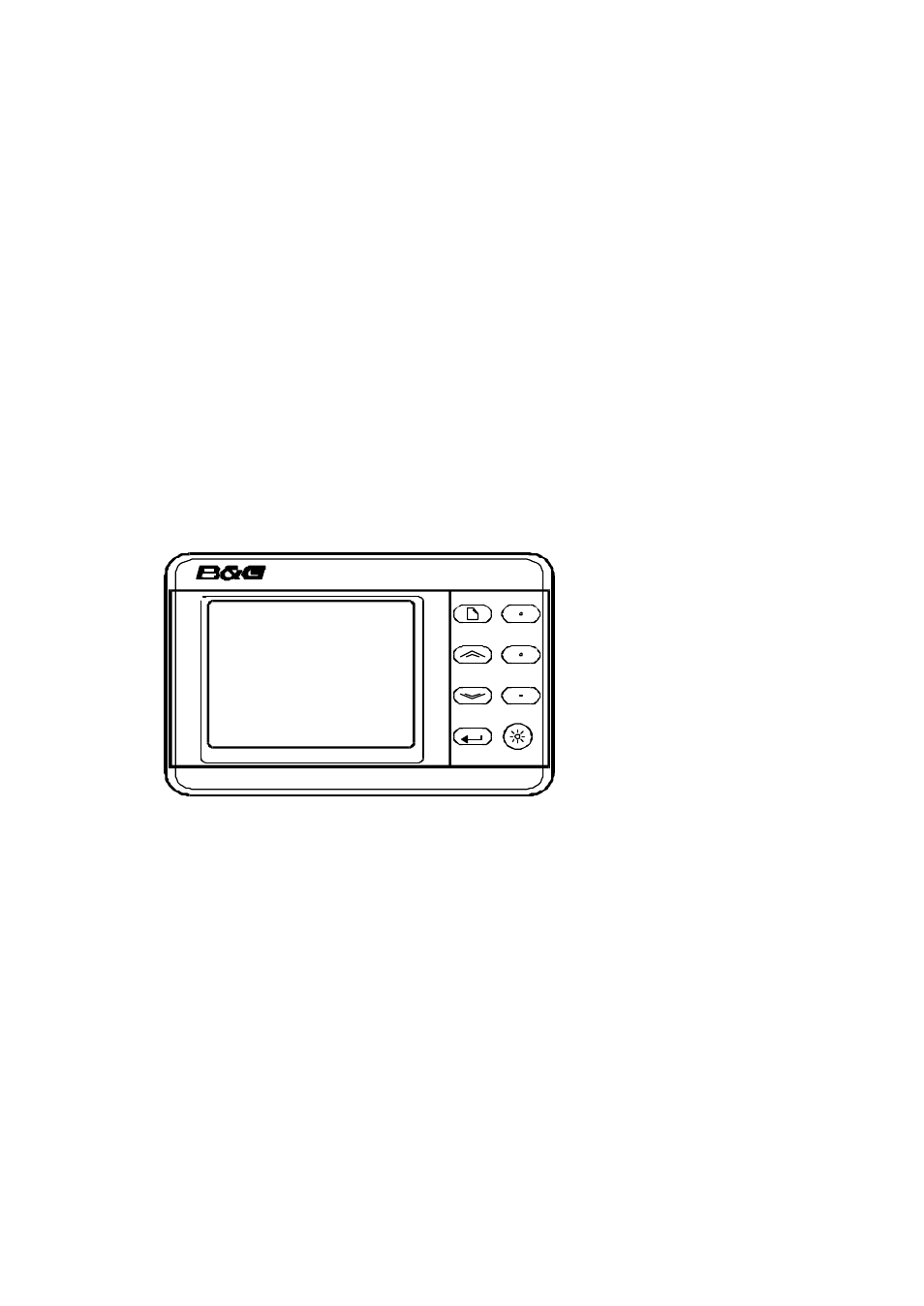

Hercules 2000
HEEL °
H 5.4
u
2.4
TR1M °
