HB-0844-04
5-14
5.7 40/40 DISPLAY
5.7.1
The Display
The 40/40 is a fully programmable, single function, large digit, display which
may be installed anywhere in the yacht.

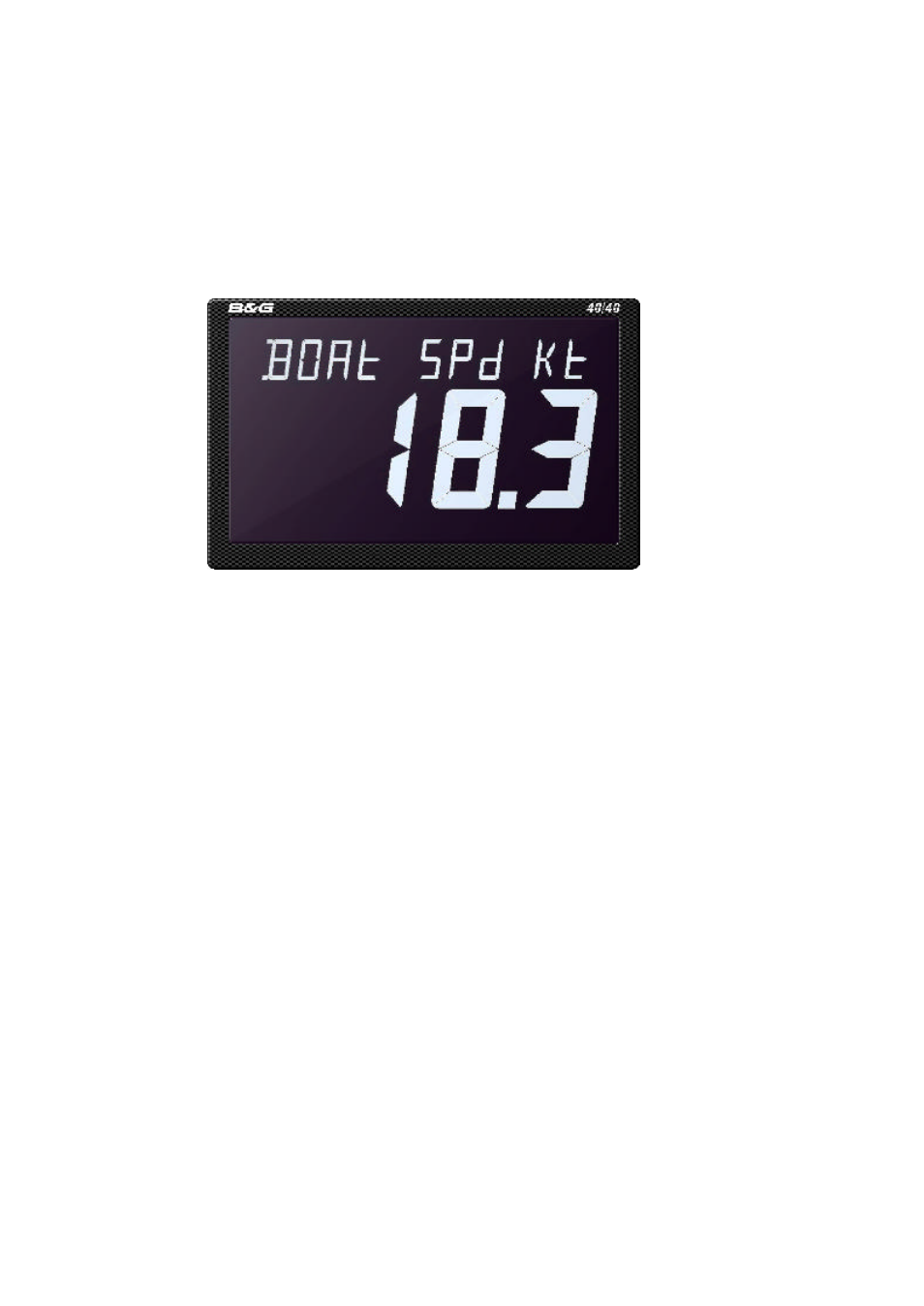

Fig 5.3 - 40/40 Display
5.7.2
Display Configuration
The 40/40 may be configured to repeat any function (except
latitude/longitude) available on your Hercules 2000 System. It is however
provided with 14 pre-set functions that may be selected by use of a remote
push-button connected to the display or via any FFD on the system.
The pre-set functions are as follows:
Boat Speed Depth m
Depth ft Apparent Wind Speed
Apparent wind Angle True Wind Speed
True Wind Angle Velocity Made Good
Compass heading Timer Count Up/Down
Bearing to Waypoint* Course Over Ground*
Speed Over Ground* True Wind Direction
Note
Functions marked with an * are NMEA Functions and are available only when
a suitable Position Fixer is interfaced with the system.
