Appendix 53
03/28/2007 407-158M
25. Connect one end of the hose to the adaptor
, and secure it with the clamp .
If the valve was not attached to a mount, use a
tie to secure the valve end of the hose to
the hose of the right-most 2in valve on the mount.
Tie it several inches back from the valves to allow
slack for making connections.
26. Route the new hose forward and out the right
wing, securing loosely with ties .
One of the two hoses (or the only hose) at hitch
right is the “Hi-Rate” line to the planter’s right wing.
Follow this hose to assure clearance from moving
parts/sharp edges, and to provide correct slack for
planter operations.
27. Select the:
507-030K MAGNET MOUNT 3 1/2 GAUGE
ASSY
and the remaining:
800-126C CLAMP WRM DRV #5 SS (.44-.70)
28. Find a position on the wing tool bar, within reach of
the forward end of the new hose , and approxi-
mately near the point where the right pull-bar joins
the wing.
29. Set the magnetic valve on the tool bar, facing
forward. Adjust the dump line from the purge valve
so that it points forward and down.
30. Re-adjust the valve position so that fluid from the
dump line strikes no planter parts, including row
unit components and frame-mounted row options.
31. Route the free end of the new hose to the valve
, and secure it with a clamp . Coil-up or cut off
any excess hose length before making the con-
nection.
32. Secure the hose installation by tightening ties .
25
23 21
22
11 25
25
11

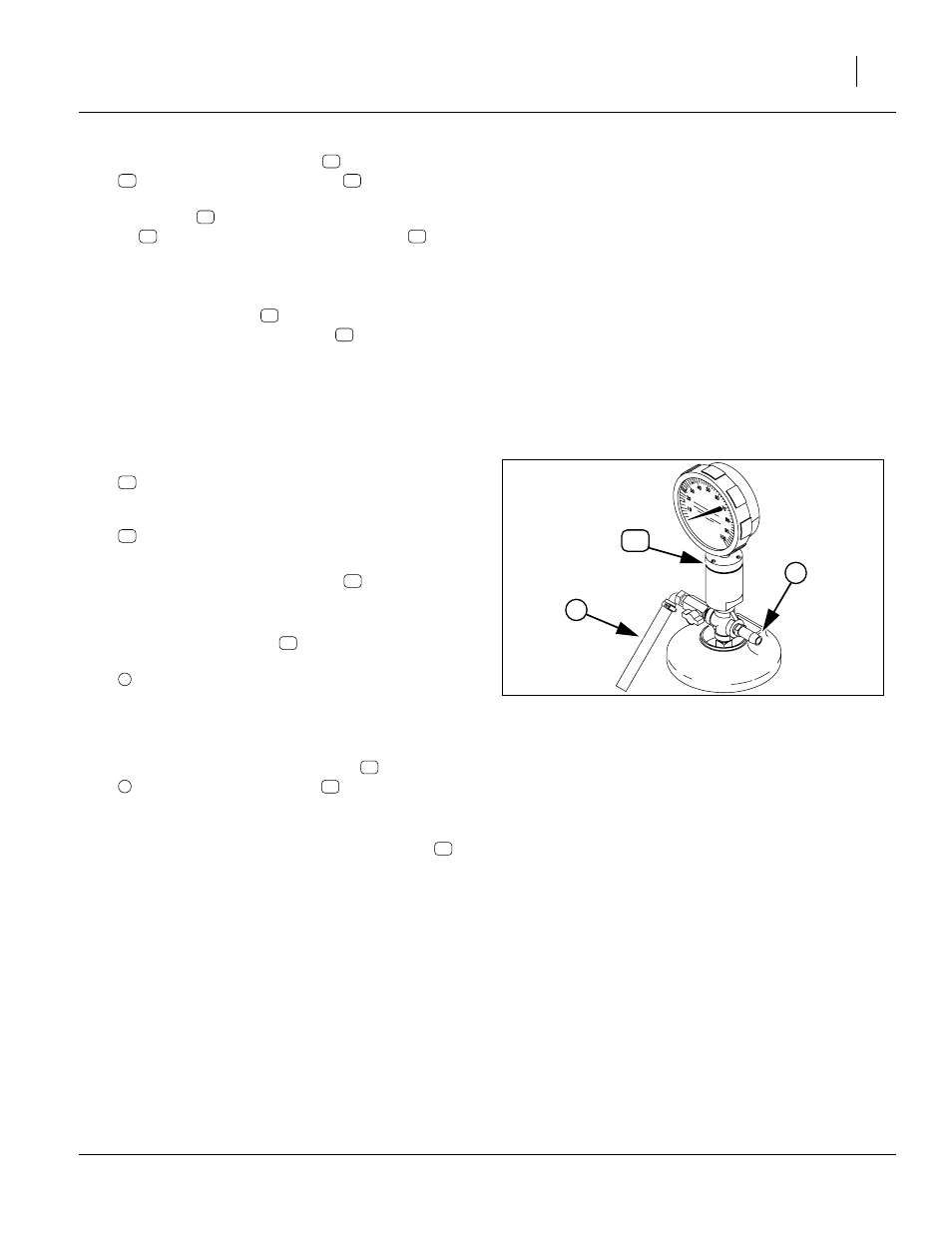

Figure 31
Magnetic Mount Gauge
26164
1
2
20
20
21
25
20
1
25
2 21
11
