Loading 1600 Gallon Tank
Refer to Figure 10
1. Close quick-fill shutoff valve :
Handle pointing back: no flow at inlet
Handle pointing left: inlet open
2. If cart is model PFC2000, set selector valve to
1600 gallon tank:
Handle forward: quick-fill to 400 gallon tank
Handle down: no flow from quick-fill inlet
Handle back: quick-fill to 1600 gallon tank
Note: This valve is not present (or needed) on tank
model PFC 1600.
Refer to Figure 10 and Figure 11
1. Set the inlet valve of the 1600 gallon tank to the
fill position:
Handle left: tank inlet open to quick-fill
Handle back: no flow to or from tank
Handle right: tank inlet open to cart pump
2. Remove cap at inlet .
3. Connect supply hose to 2in CAM inlet .
4. If monitoring fill level at hatch, swing down walk-
board ladder and position observer (in suitable
protective apparel).
5. Open quick-fill shutoff valve . Also open any
valve(s) on the supply hose(s).
6. Using an external pump (usually on the fertilizer
supply tank), pump fertilizer to desired level in
tank.
7. Shut off pump when tank is at desired level.
8. Close shut-off valve .
9. Close valve(s) on supply hose(s) and disconnect
fertilizer source.
10. If cart is model PFC2000, set selector valve off.
11. Set the discharge valve of the 1600 gallon tank
to closed (back) or to pump (right), depending on
the next planned task.

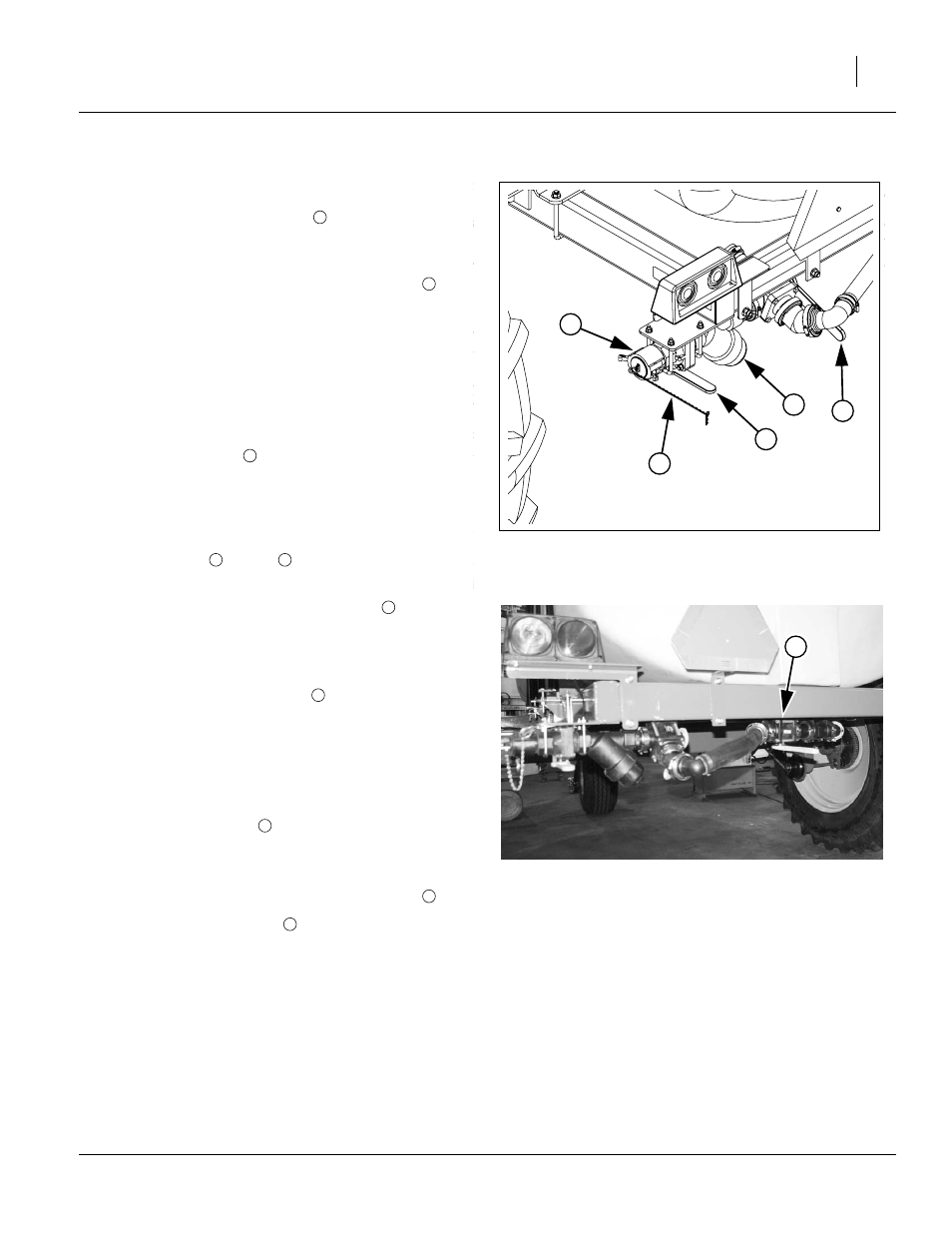

Figure 10
Quick Fill for 1600
26151
3
5
6
4
7
3
4
8
5 6
Figure 11
1600 Gallon Tank Inlet
26165
8
6
3
3
4
8
