Loading 400 Gallon Tank
(Model PFC2000 only)
Refer to Figure 12
1. Close quick-fill shutoff valve :
Handle pointing back: no flow at inlet
Handle pointing left: inlet open
2. Set selector valve to 400 gallon tank:
Handle forward: quick-fill to 400 gallon tank
Handle down: no flow from quick-fill inlet
Handle back: quick-fill to 1600 gallon tank
Refer to Figure 12 and Figure 13
1. Close the outlet valve of the 400 gallon tank:
Handle forward: outlet supplies planter
Handle down: outlet closed / no flow from tank
Handle back: outlet supplies cart pump
2. Set the inlet valve of the 400 gallon tank to the
fill position:
Handle down: no flow at tank inlet
Handle forward: tank inlet open to quick-fill
3. Remove cap at inlet .
4. Connect supply hose to 2in CAM quick-fill inlet .
5. If monitoring fill level at hatch, swing down walk-
board ladder and position observer (in suitable
protective apparel).
6. Open quick-fill shutoff valve . Also open any
valve(s) on the supply hose(s).
7. Using an external pump (usually on the fertilizer
supply tank), pump fertilizer to desired level in
tank.
8. Shut off pump when tank is at desired level.
9. Close shut-off valve .
10. Close valve(s) on supply hose(s) and disconnect
fertilizer source.
11. Set selector valve off.
12. Set the 400 gallon tank inlet valve to closed
(handle down).
13. Set the 400 gallon tank outlet valve to planter
(forward) or pump (back) depending on next
planned task.

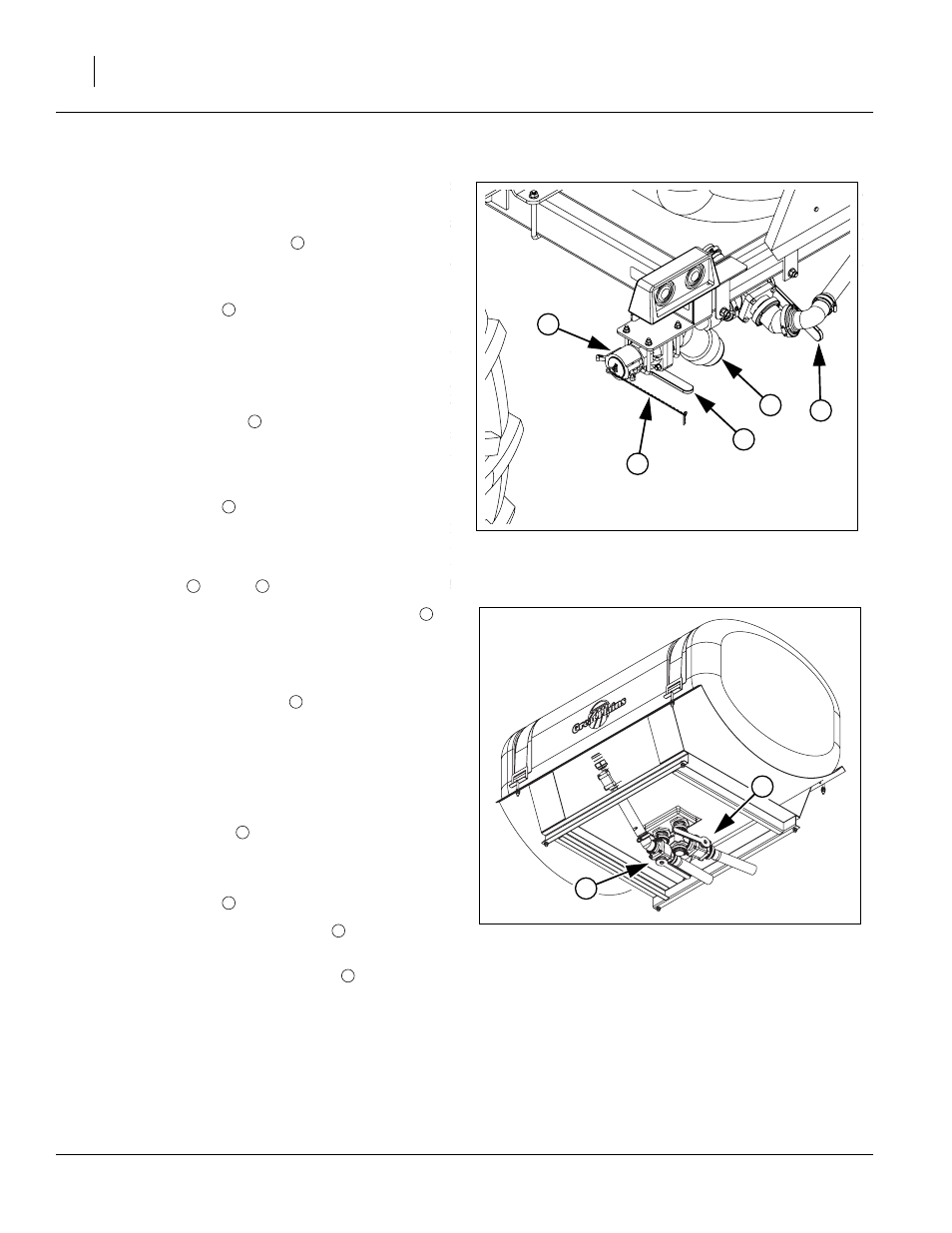

Figure 12
Quick Fill for 400
26151
3
5
6
4
7
3
4
2
1
5 6
Figure 13
400 Gallon Tank Inlet
26153
1
2
6
3
3
4
1
2
