Appendix 51
03/28/2007 407-158M
Planter Lighting Cable Extension
Refer to Figure 27 and Figure 27
11. Select the:
890-601C AG LIGHT HARNESS, Y-CONN
and a few:
800-082C CABLE TIE .31X21.5 6DIA 120LB
12. From one of the planter tail lights, follow a lead of
existing Y-cable back to its 4-pin Wesbar plug.
13. Disconnect the existing Y-cable and connect the
new Y-harness between the existing plug and
receptacle.
14. Have ready:
890-600C AG LIGHT HARNESS, EXT-15’
15. Route the Y harness toward the planter’s rear
hitch, securing with cable ties every 18in or so.
16. Connect/secure extension harness cables as
needed until a receptacle end is at the hitch.
17. If the hitch connector can touch the ground, coil
the excess under a tie near the hitch. Verify that
the cart’s lighting cable has enough reach to make
the connection and maintain it during tight turns.
Callout Quantity Part No. Part Description Comment
1 890-390C LIGHT HARNESS, 10’ WISHBONE Existing part on planter
2 890-600C AG LIGHT HARNESS, EXT-15’ New parts
1 890-601C AG LIGHT HARNESS, Y-CONN New part
15
16
17

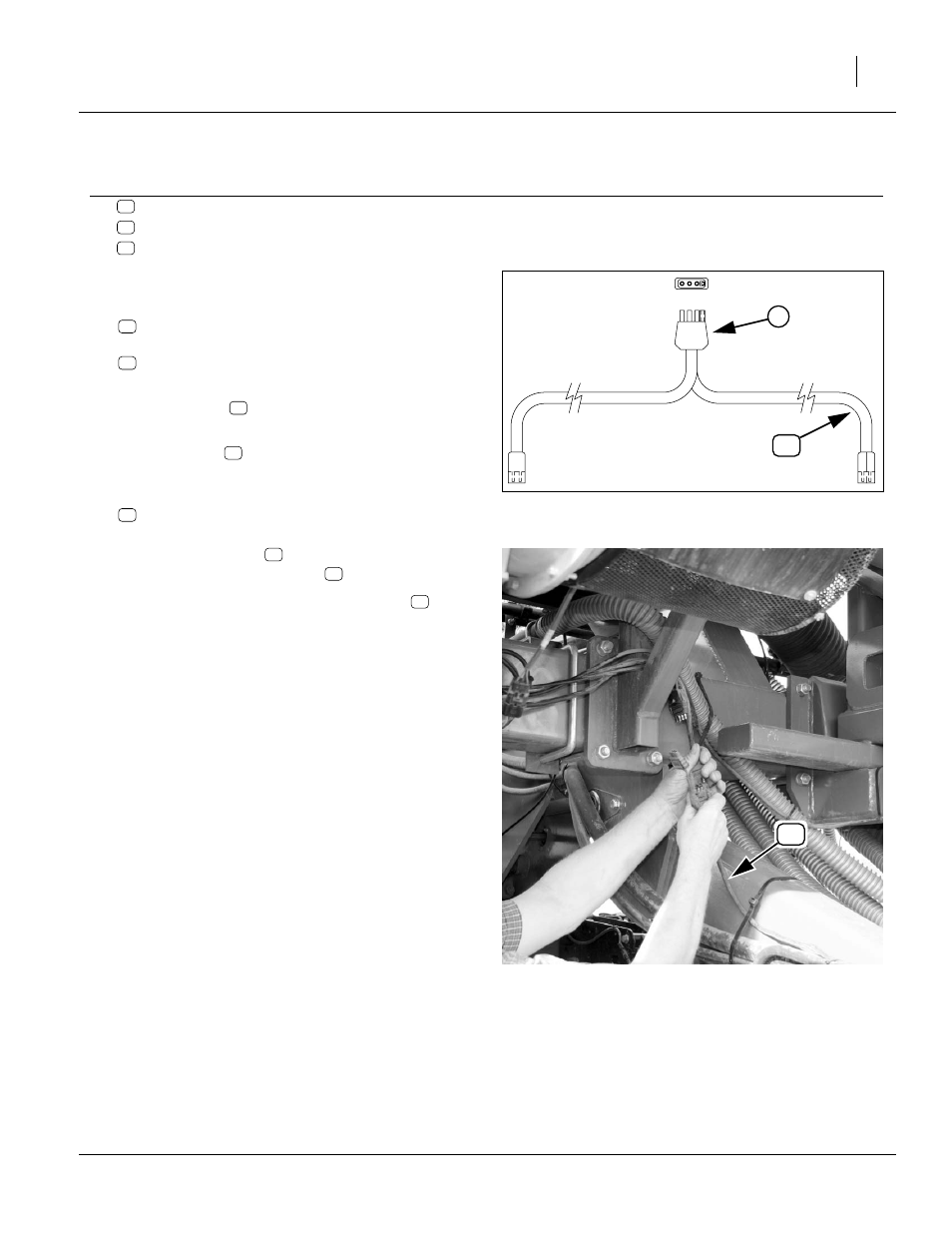

Figure 27
Planter Lighting Y-Cable
26160
1
15
17
11
15
17
16
Figure 28
Existing Lighting Y-Cable
26161
16
17
11
16
