14
407-158M 03/28/2007
Electrical and Monitor Connections
Monitor Setup
Before using the cart for the first time, it is necessary
to configure the planter seed monitor to correctly pro-
cess cart signals and correctly control the clutch and
manifold valves.
For the 3-inlet Hi-Rate” manifold, this configuration
includes telling the monitor which row number range is
served by each inlet. If your manifold system has one
drop line per row unit, Clutch Switch Coverage table in
the planter Operator’s Manual shows the row unit num-
bers for Left/Center/Right.
Making Electrical Connections

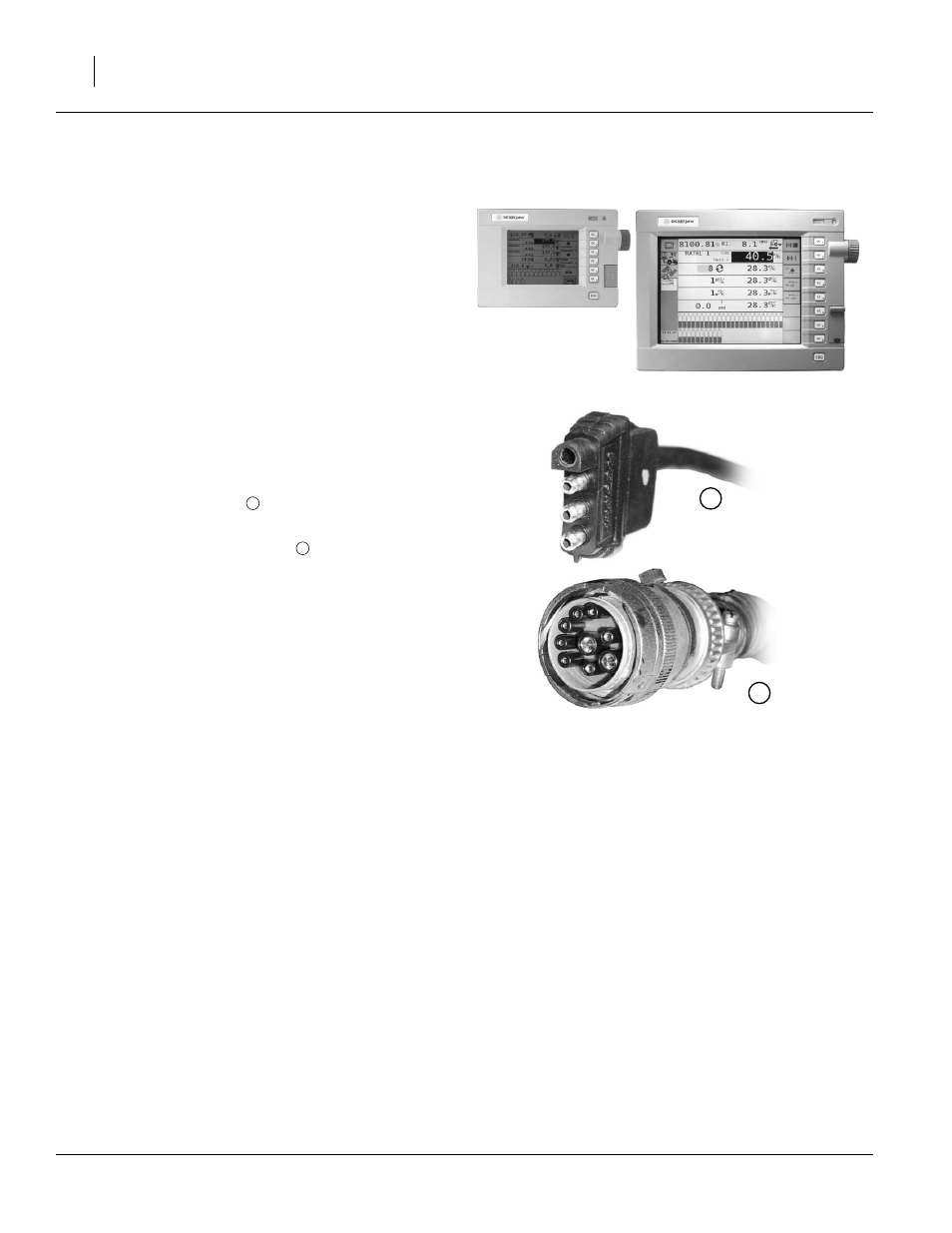

Refer to Figure 4
Make sure tractor is shut down with accessory power
off before making connections.
11. Mate the lighting plug to the outlet connector on
the planter.
12. Mate the pump control cable to the DICKEY-
john outlet on the planter.
13. Secure cables so they do not get caught in pintle
hitch. Failure to do so could cause cables to be
crushed, requiring cable replacement, and possi-
ble electrical damage to systems.
25421
Figure 4
Connector Identification
26144
25237
1
2
1
2
