PFC2000 Plumbing

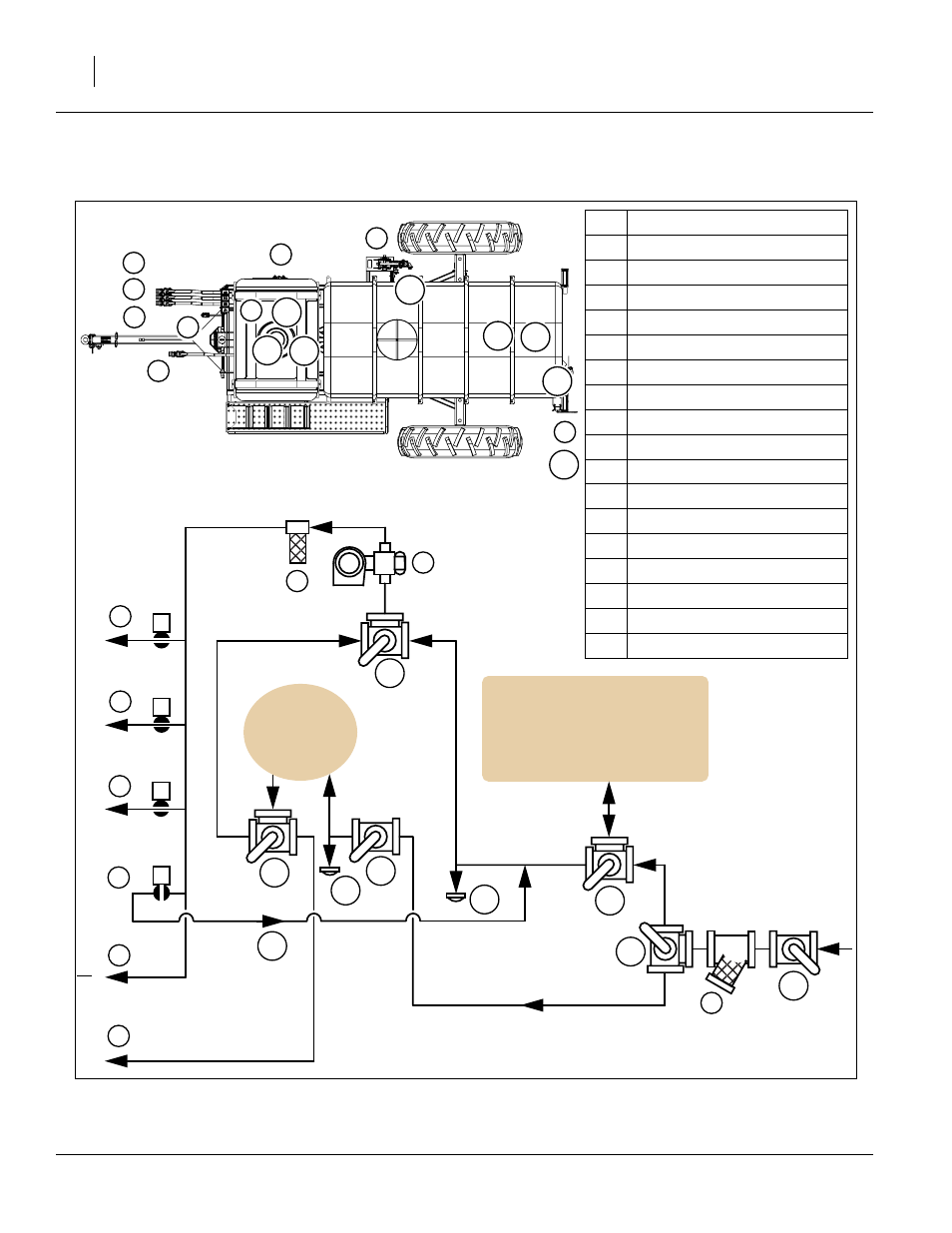

This figure shows the general location and a flow/control diagram of the plumbing system.
4
1
2
3
3
2in
2in
2in
4
in
2in
400 1600
Figure 23
PFC2000 Plumbing
26071
1 Manifold valve #1 (planter L.)
2 Manifold valve #2 (planter C.)
3 Manifold valve #3 (planter R.)
4 Recirculation valve
5 Gauge line
6 400 gallon line to planter
7 Ground drive pump
8 Quick-fill strainer
9 Pump strainer
10 Quick-fill shut-off valve
11 Inlet selector valve
12 1600 gal discharge line valve
13 400 gal inlet shut-off valve
14 400 outlet selector valve
15 Pump selector valve
16 Recirculation line
17 400 gal drain cap
18 1600 gal drain cap
