Great Plains PFC2000 Operator Manual User Manual
Page 54
52
407-158M
03/28/2007
Planter Pressure Gauge Installation
18. Find the right fertilizer valve mount
planter rear hitch. Note whether it has one or two
2in inlet valves
and
.
Note: A planter with only a 3-inlet “Hi-Rate” fertilizer
manifold will have only one valve
on the right
side
. The extra position
has mounting holes
for the
3
⁄
4
in valve
to be installed.
A planter with both optional fertilizer manifolds
will already have all mount positions occupied by
2in valves. In this case, the line to be installed is
tie-wrapped to the hose of the right-most valve.
19. Select the:
830-082C AD 3/4MNPT X 3/8HB POLYPROP
830-166C AD 3/4MNPT X 3/4FCL POLYPROP
20. Operate the valve handle. When open, the handle
points to the outlet side of the valve.
21. Assemble the
3
⁄
8
in hose adaptor
side of the valve
22. Assemble the
3
⁄
4
in quick-connect adaptor
the inlet side of the valve
23. Per step 18, if there is an open position on the
mount, install the valve assembly there as shown
in Figure 29. If there is no position, set the valve
aside until step 25.
24. Select the:
990-080R HOSE 3/8 ID 150PSI EPDM
the remaining:
800-082C CABLE TIE .31X21.5 6DIA 120LB
and one:
800-126C CLAMP WRM DRV #5 SS (.44-.70)
Callout Quantity
Part No.
Part Description
Comment
1
407-279D
FERT VALVE HOOKUP MOUNT
Existing part at planter rear hitch
1 or 2
829-048C
VALVE - 1 1/2FNPT X 2FCL POLYP
Existing part at planter rear hitch
1
507-030K
MAGNET MOUNT 3 1/2 GAUGE ASSY
New part
2
800-126C
CLAMP WRM DRV #5 SS (.44-.70)
New part
1
829-010C
VALVE - 3/4FNPT BALL POLYPROP
New part
1
830-082C
AD 3/4MNPT X 3/8HB POLYPROP
New part
1
830-166C
AD 3/4MNPT X 3/4FCL POLYPROP
New part
30ft
990-080R
HOSE 3/8 ID 150PSI EPDM
New part
18
19
20
21
22
23
24
25

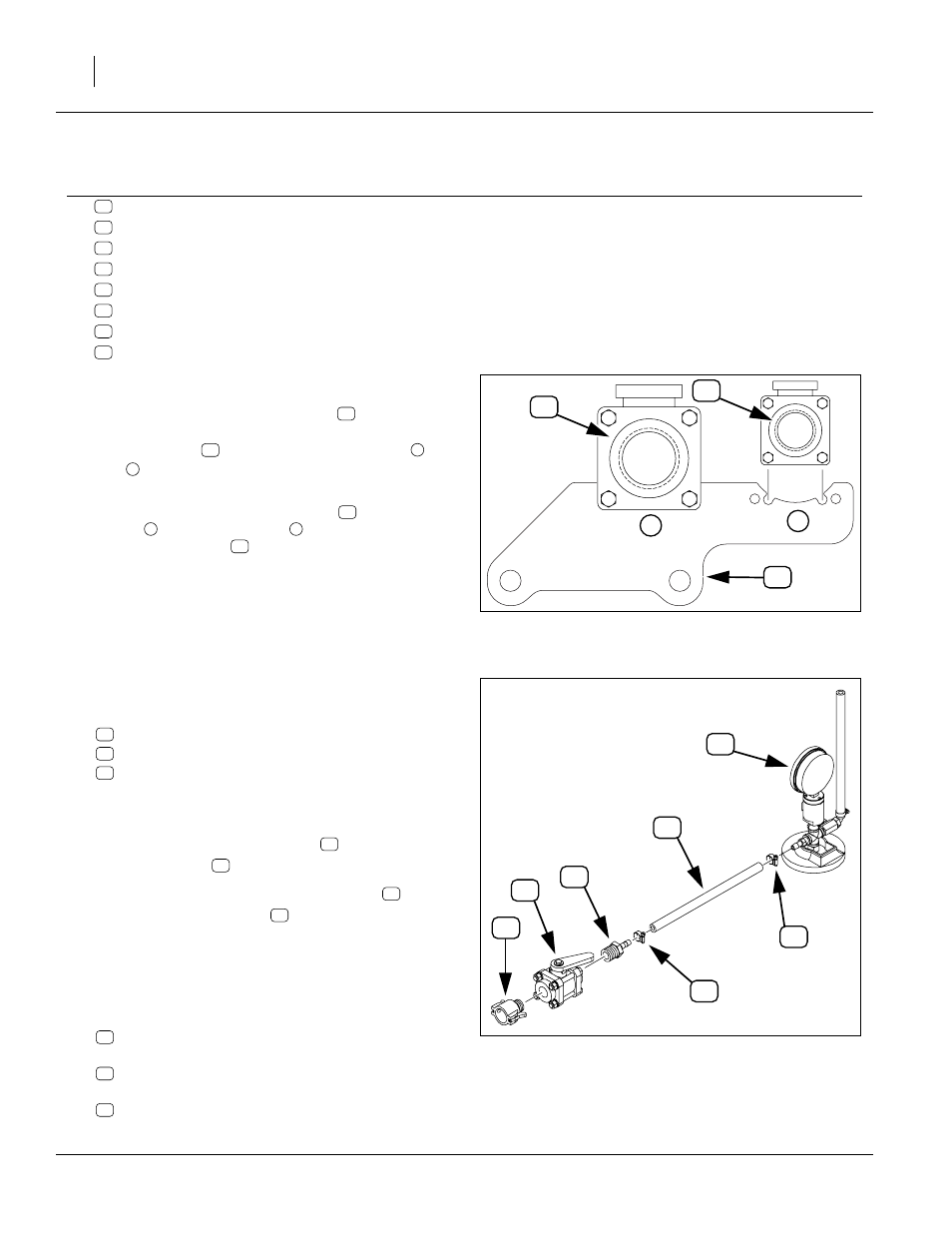

Figure 29
Planter Hitch Hose Bulkhead
26162
1
2
1
Figure 30
Gauge Line Components
26163
