Hydraulic Drive Operating Instructions
Drive Operational Requirements
Hydraulic System:
Closed Center, pressure compensated or load sensed
systems only
IMPORTANT !
Drive will not operate on Open-Center hydraulic sys-
tems
Electrical System:
Tractor Hookup
Hydraulics:
1. Connect pressure hose (P) to retraction outlet
2. Connect motor return hose (T) to motor return port (if
available) or to extension outlet.
3. Set flow rate at maximum required flow of 13 gpm.
4. If tractor is equipped with electro-hydraulic valves,
set timer to “constant” flow.
Electrical:
Refer to Figure 97
Power must be connected directly to the battery. Make
sure that eyelets are properly connected (red to positive,
black to negative). Connect female socket to power port
adapter.
Minimum Hyd. Pressure 2250 psi
Maximum Hyd. Pressure 3000 psi
Maximum Required Flow 13 gpm
Voltage 12 volt DC
Current 4 amperes
22715

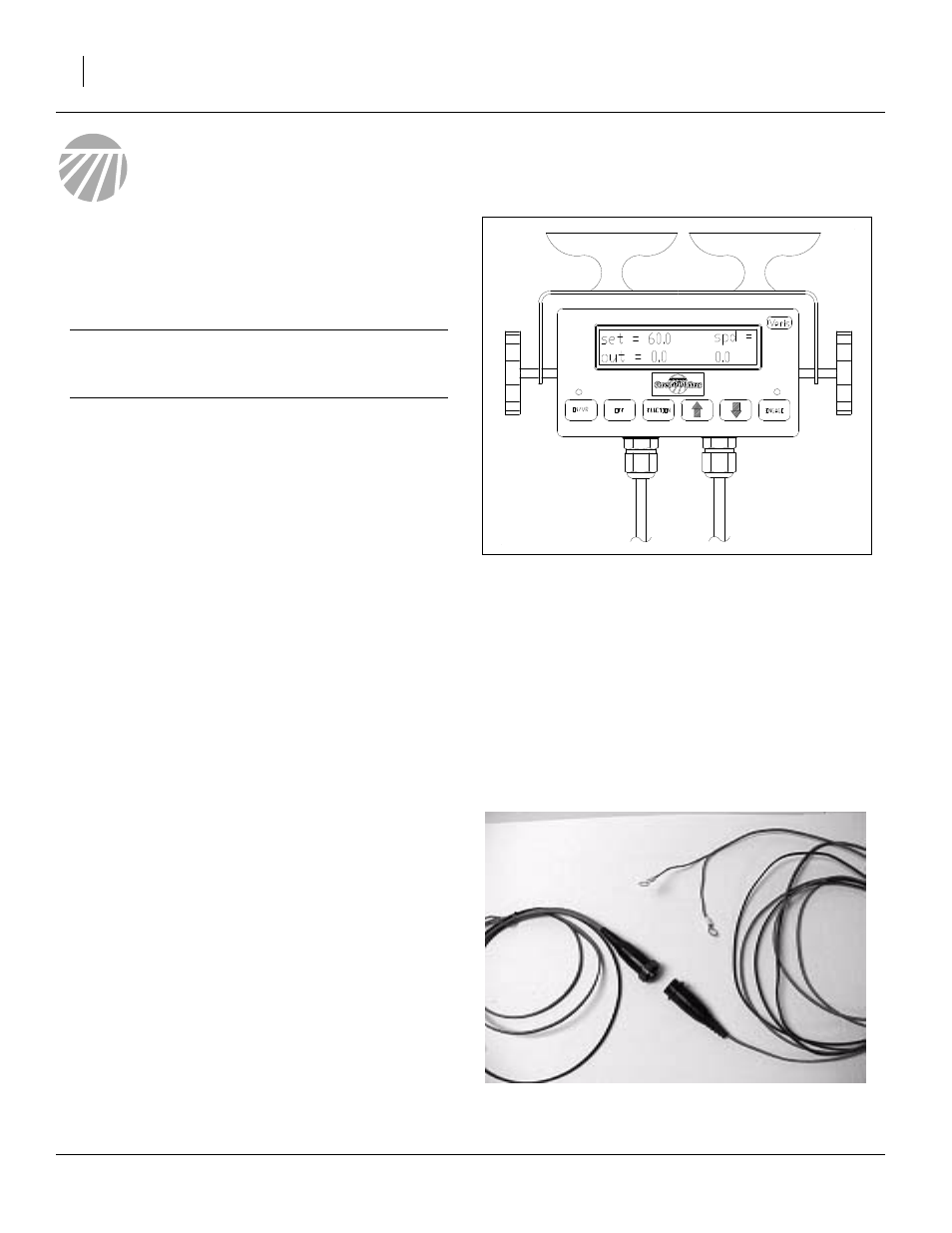

Figure 97
Veris Electrical Connection
22714
