Optional Monitor Mounting Plate
The Yield-Pro Planter® is supplied with an optional
mounting plate that may be used to mount the Point Row
Monitor, the Electro-hydraulic Control Valve, the Veris
Monitor, and the DICKEY-john® Monitor.
Refer to Figure 12
1.
If equipped with Veris, remove suction cups and
mounting bracket from veris monitor. Keep suction
cups and bracket for reuse.
2. Attach large suction cup included with mounting
plate to the top hole on the plate using bolt and lock
washer.
3. If not equipped with Veris, skip this step and continue
with step 4. If equipped with Veris, using lock wash-
ers and nuts secure suction cups removed in step 1
to plate. Secure suction cups to holes directly above
the bottom two holes on the plate.
4. Place DICKEY-john® mounting bracket on mounting
plate. Secure bracket to plate in bottom two holes
directly below the suction cups. Use bolts and nuts to
install.
5. If equipped with Veris, attach Veris Drive mounting
bracket above DICKEY-john® mounting bracket
using the included bolts and nuts.
6. Remove mounting bracket from electro-hydraulic
valve control. Install mounting bracket to mounting
plate.
7. Attach point row monitor to mounting plate with 10-
32 x
5 ⁄
8
machine screws, lock washers, and nuts. Let
wires fall in the front of the plate.
8. Secure electro-hydraulic valve control to mounting
bracket on plate using 10-32 x
5 ⁄
8
machine screws,
lock washers, and nuts. Let wires fall in the front of
the plate.
9. Mount veris drive monitor to mounting bracket on
plate. Secure veris drive monitor to bracket using 1/
4-20 x
5 ⁄
8
bolts, 1 ⁄
4
in lock washers, and 1 ⁄
4
-20 nuts.
Wires should fall in the front of the mounting plate.
10. Attach DICKEY-john® Monitor to DICKEY-john®
mounting bracket on plate. Thread monitor wires
through slot in plate. Trap all other wires between
DICKEY-john® monitor and mounting plate.

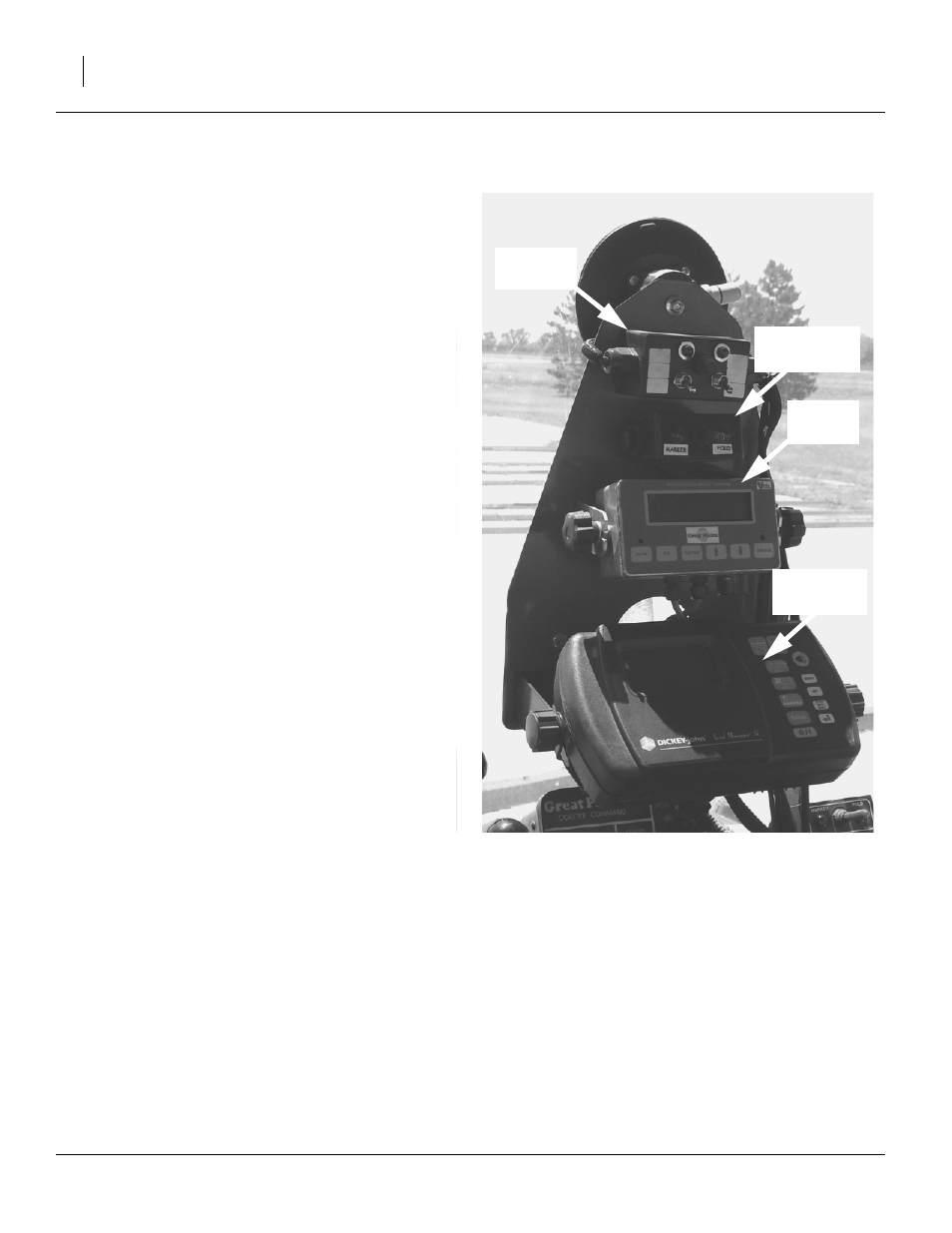

Figure 12
Optional Monitor Mounting Plate
23283
Point Row
Monitor
Electro-hydraulic
Valve Control
Veris Drive
Monitor
DICKEY-john®
Monitor
