Marker Disk Adjustment
!
CAUTION
Marker disks may be sharp. Use caution when making adjust-
ments in this area.
Refer to Figure 43
To change angle of cut, and the width of the mark, loosen
1 ⁄
2
-inch bolts holding disk assembly.
For a wider mark (W), increase the angle of the marker
with respect to the tube
. For a narrower mark (N),
reduce the angle.
Tighten bolts .
Note: The direction of travel (T) tends to drive the disk an-
gle to Wide. If bolts are not tight enough, or loosen
over time, the disk will slip into the Wide mark con-
figuration.
Hydraulic Drive Height Switch
The optional Hydraulic Drive is supplied with a height
switch
that is used to activate the Drive when the
planter is lowered for field operation.
Refer to Figure 44
1.
Loosen the bolts holding the height switch bracket
and rotate the switch
and bracket away from the
frame pivot .
2. Lower the planter to the height at which seed deliv-
ery should begin.
3. Rotate the switch towards the frame pivot until the
spring actuator
just touches the frame.
4. Rotate the switch in until it clicks. Tighten the bolts to
secure it in place. Be sure frame tube will not crush
switch when unit is fully loaded.
Note: It may be necessary to loosen the screws holding
the switch and rotate the switch slightly on the
bracket.

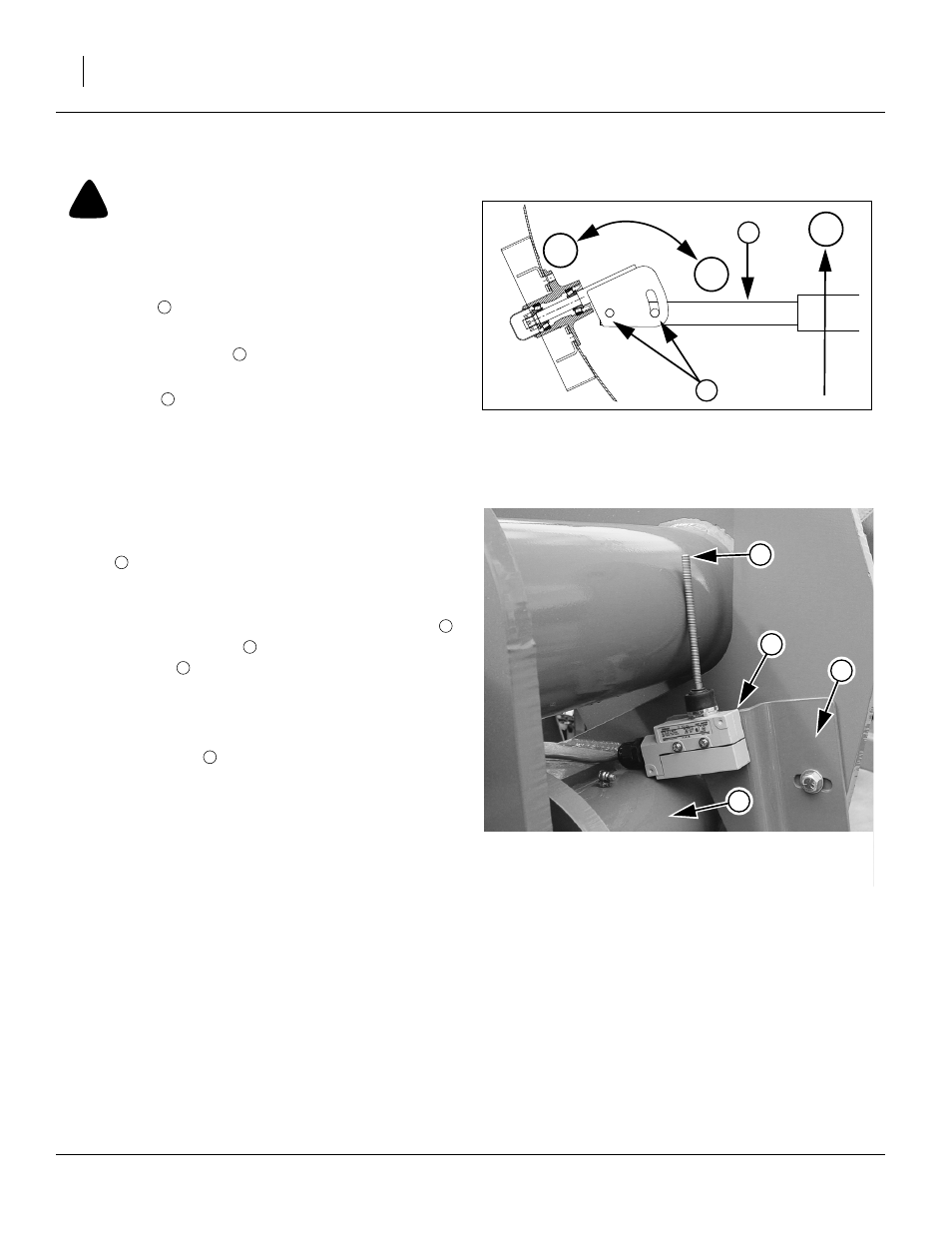

Figure 43
Marker Disk Angle
11757
N
W
T 5
6
6
5
6
Figure 44
Veris Height Switch
23398
4
1
2
3
1
2
1
3
4
