58 YP1225 and 1625 Great Plains Manufacturing, Inc.
401-226M 07/09/2009
Meter Installation
Installation is the reverse of the removal process, with
two steps omitted.
Refer to Figure 75
1.
Insert the meter.
Insert the top meter tab (with the hook).
Align the meter base with the latch plate ears.
Insert the bottom meter tab.
Mind the lower latch, as it tends to swing under the
meter base and block mating with the latch plate.
Refer to Figure 68 on page 54
2.
Engage the upper latch.
Refer to Figure 67 on page 54
3.
Engage the lower latch, and swing the mounting
plate into engagement with the meter. it may be nec-
essary to spin the drive coupler to ease this.
Refer to Figure 66 on page 54
4.
Slide the seed hose over the meter inlet tube, and
then slide the retaining ring down the seed hose.
Refer to Figure 76
5.
Release the upper latch.

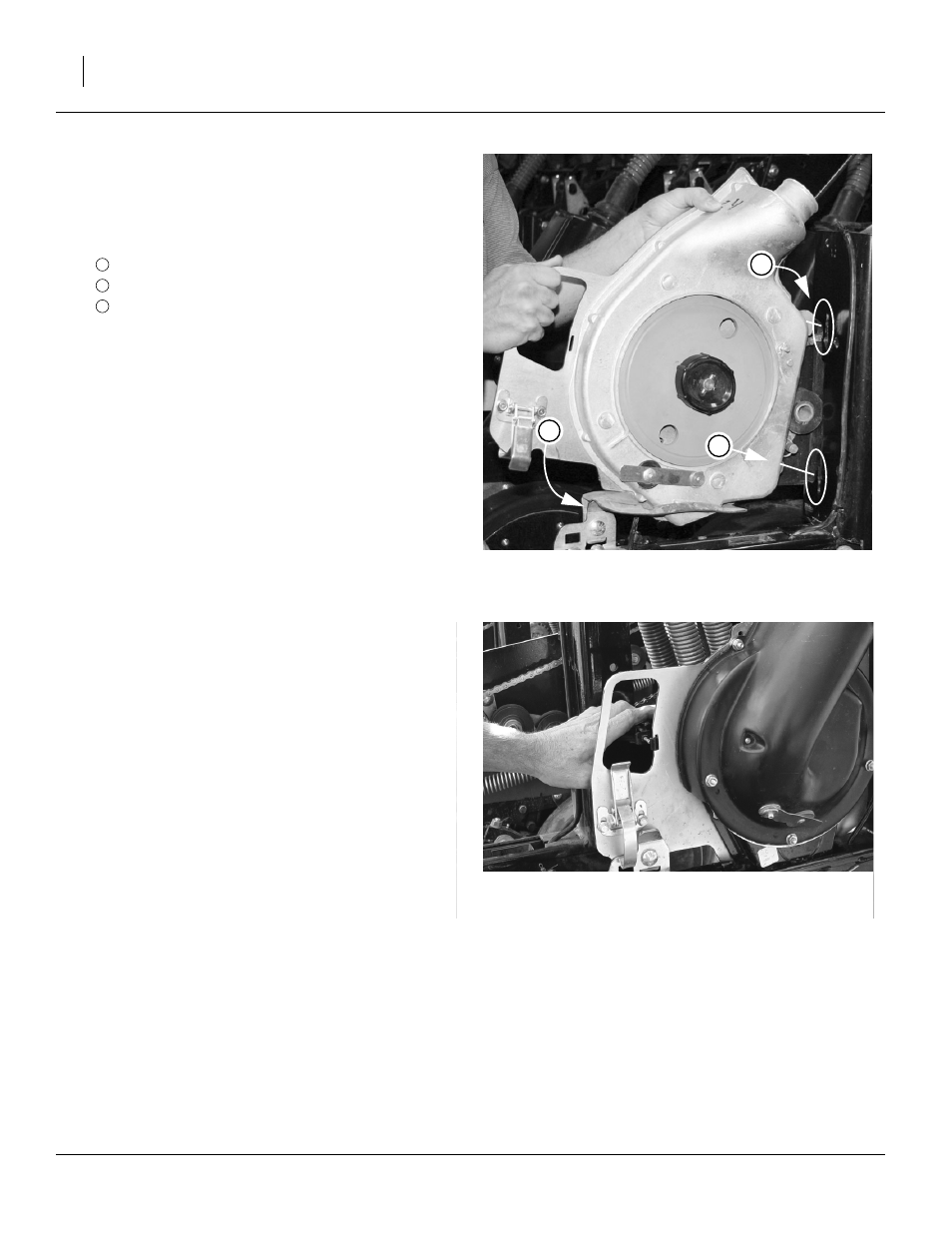

Figure 75
Install Meter
25275
1
3
2
1
2
3
Figure 76
Upper Meter Latch
21922
