Frame-Mounted Coulters
Refer to Figure 49
At the shaft
, adjust the coulter depth for a running
depth of 4 to 4 1 ⁄
2
in below ground level . Refer to the
Vantage I manual (204-376M) for further adjustments.
Do not adjust the spring tension. It is factory pre-set.
Vantage I Fertilizer
Refer to Figure 49
At the back plate
, adjust the tine height for a running
depth of 1in below ground level . Refer to the Van-
tage I manual (204-376M) for further adjustments.

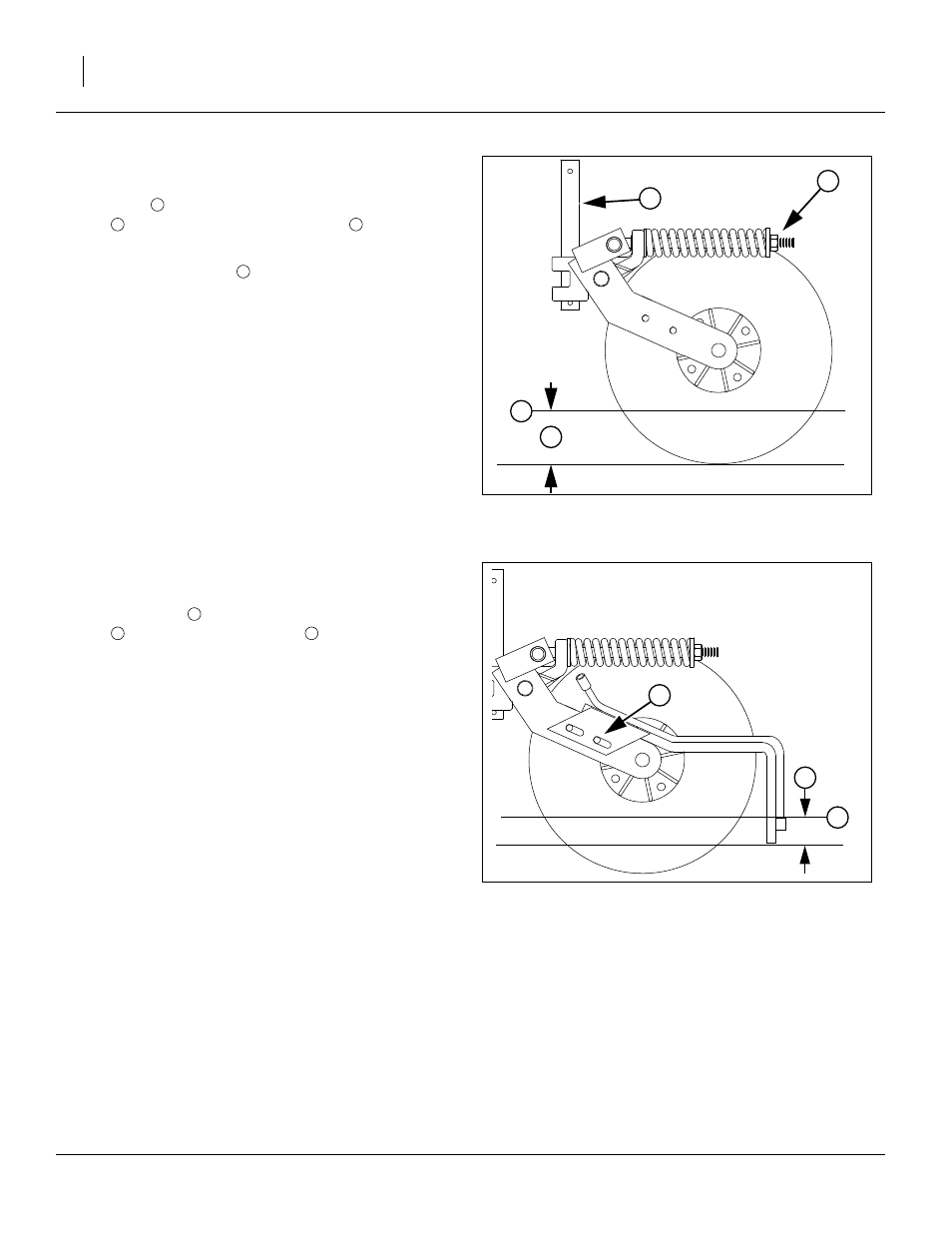

Figure 49
Frame-Mount Coulter
25392
1
4
3
2
1
2 3
4
Figure 50
Vantage I Applicator
22951
5
3
6
5
6 3
