RELAY CONTACTS FOR
ELECTRIC STRIKE.
ELECTRIC LATCH RETRACT
EXIT DEVICE, MAGNETIC
LOCK, ETC.
See Note 3.
Notes:
1. Power input Door Operator Unit is at
Power Input Terminal Strip (not shown)
120VAC 60Hz.
2. Current draw must not exceed 0.500
amps at terminal Jp4 – 2.
Vestibule Function
Note 3:
If product being connected does
not have an integrated diode, one
must be installed across contracts
to protect relays . Suggested diode is
1N4001 or equivalent.
See pages 9 - 11 for illustration of use.
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8
5
678
90
1
23 4
5
678
90
1
23 4
5
678
90
1
23 4
5
678
90
1
23 4
NEU HOT GND 18VAC
GND +24V NO1 CO1 NC1 NO2 CO2 NC2
0/0
RES1
A
UX2
GND
INV
OUTV
GND
R
F
T
GND
A
UX2
GND
PDET
GND
A
UX1
6600/6700 SERIES DOOR OPERATOR
41-6700-0056 REV A MADE IN USA
OFF ON
SW1
P/A
A/D
RES1
RES2
JP4
JP1
JP5
JP3
JP2
CL/AS DLY VEST DLY
EXSOL DLY M. DLY
G
EM
G
H+
V
L
2
G
L1
MO
T
OR/SOLENOID
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8
5
678
90
1
23 4
5
678
90
1
23 4
5
678
90
1
23 4
5
678
90
1
23 4
NEU HOT GND 18VAC
GND +24V NO1 CO1 NC1 NO2 CO2 NC2
0/0
RES1
A
UX2
GND
INV
OUTV
GND
R
F
T
GND
A
UX2
GND
PDET
GND
A
UX1
DOOR OPERATOR
41-6700-0056 REV A MADE IN USA OFF ON
SW1
P/A
A/D
RES1
RES2
JP4
JP1
JP5
JP3
JP2
CL/AS DLY VEST DLY
EXSOL DLY M. DLY
G
EM
G
H+
V
L
2
G
L1
MO
T
OR/SOLENOID
RELAY CONTACTS FOR
ELECTRIC STRIKE.
ELECTRIC LATCH RETRACT
EXIT DEVICE, MAGNETIC
LOCK, ETC.
See Note 3.
INSIDE DOOR
OUTSIDE DOOR
VESTIBULE
All Switches are either
Wall Switches, Card
Readers, Key Switches,
etc.
Normally Open Momentary
dry contacts
Inside Switch
Outside Switch
Inside
Corridor Switch
Outside
Corridor Switch

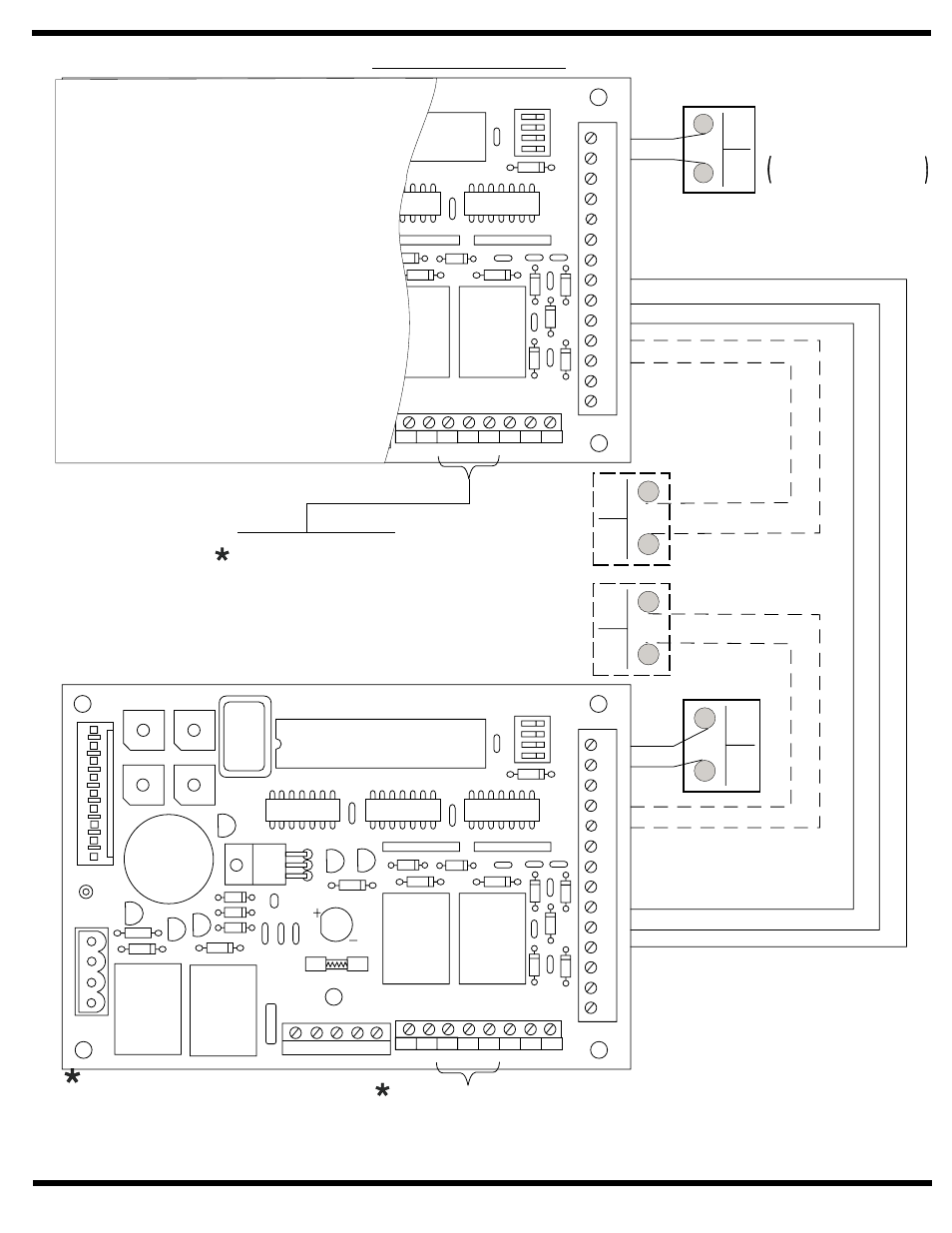

Operation:
Doors are normally closed.
Activating outside door switch will open the outside
door. After the vestibule time delay has elapsed, a
signal will be sent to the inside door which will open.
Activating the inside door switch will open the inside
door. After the vestibule time delay has elapsed, a
signal will be sent to the outside door which will
open.
Both doors will close when the hold open time delay
has elapsed.
Activating the inside Corridor door switch located
with-in the corridor will open the inside door only.
This door will re-close after the hold open delay has
elapsed.
Activating the outside Corridor door switch located
with-in the corridor will open the outside door only.
This door will re-close after the hold open delay has
elapsed.
