4
800-810-WIRE (9473) • www.sargentlock.com • A7854B
Profile Series v.G1.5 Cylindrical Lock
05/06/09
A7854:B
Copyright
©
2009,
Sargen
t
Manufacturing
Company
,an
A
S
S
A
AB
LO
Y
G
roup
company
.All
right
s
reser
ved
.
Reproduction
in
whole
or
in
par
t
without
the
express
writ
ten
permission
of
S
AR
G
EN
T
Manufacturing
is
prohibited
.

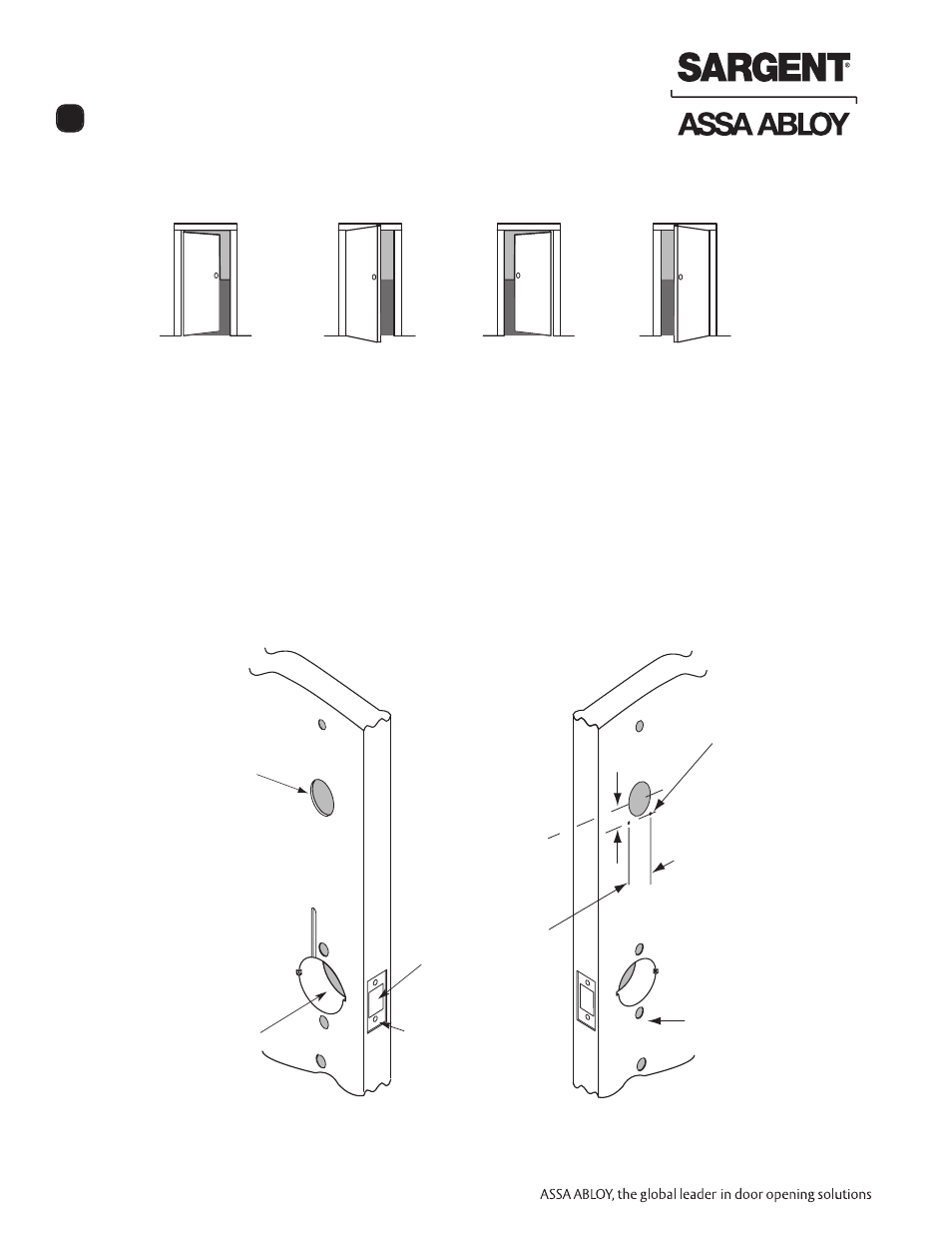

Left Hand
Hinges Left.
Open inward.
“LH” Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB” Right Hand
Hinges Right
Open Inward.
“RH” Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”
Installation Instructions 6
6.1–Verify Hand and Bevel of Door
6.2–Door Preparation
Prepare door according to appropriate template
(see website www.sargentlock.com):
• For metal door template, see 4531 and 4532
• Wood Door Templates A7456 & A6719 are shipped with product
• Prior to installation, all holes must be free of burrs, debris
and sharp edges
• If doors are not properly reinforced per ANSI 115.2,
commercially available reinforcements
should be installed
Stand on outside/locked side of the door when determining the door hand
Wood Door Preparation
1-1/2"
(2) 1/8" Dia. holes x 1/4" Deep
required
7/8"
Through-bolt
hole (2)
CL of
1-1/2" Dia.
Lockbody
hole
Latchbolt
door prep
Pre-drill
and/or tap
holes (2)
Inside
of door Outside
of door
Hole for ribbon
cable from keypad
to controller
