24
12. Remote Control Socket: The 10 pin Remote Control Socket is used to connect remote control
devices for Pulse MIG welding. To make connections, align keyway, insert plug, and rotate
threaded collar fully clockwise.
Socket Pin Function
1 5 VDC auxiliary high side
2 Communication signal
3 Communication signal
4 Communication signal
5 Communication signal
6 5 VDC neutral
7 Chassis ground
8 N/C
9 N/C
10 N/C
3.02 Weld Parameter Descriptions for ARC MASTER 400 MSTP

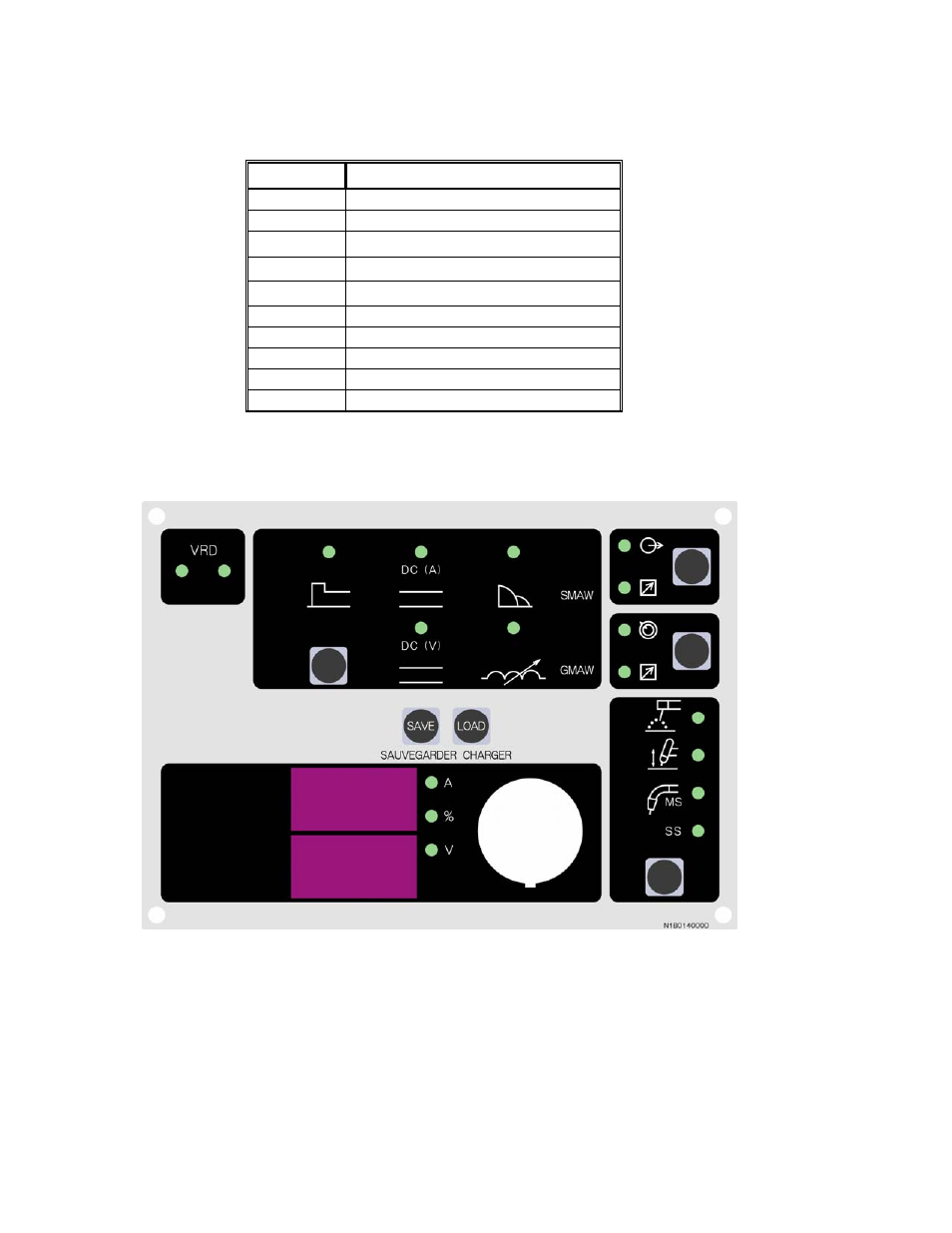

Figure 5. ARC MASTER 400 MSTP Front Panel with Parameter Description
