ASSEMBLY AND INSTALLATION N7500
Manual 89250890 4-3 ASSEMBLY AND INSTALLATION
4.02 Assembly
The assembly instruction steps are divided into five groups; Miscellaneous Cable/Plumbing Assemblies, Control Box,
Torch Head, Remote Pendant, and Final Connections. Remote Pendant Storage is located at the end of this section.
4.03 Miscellaneous Cable/Plumbing Assemblies
Cable assemblies required to operate the N7500 system come in various lengths and must be specified by the end
user to meet their specific needs.

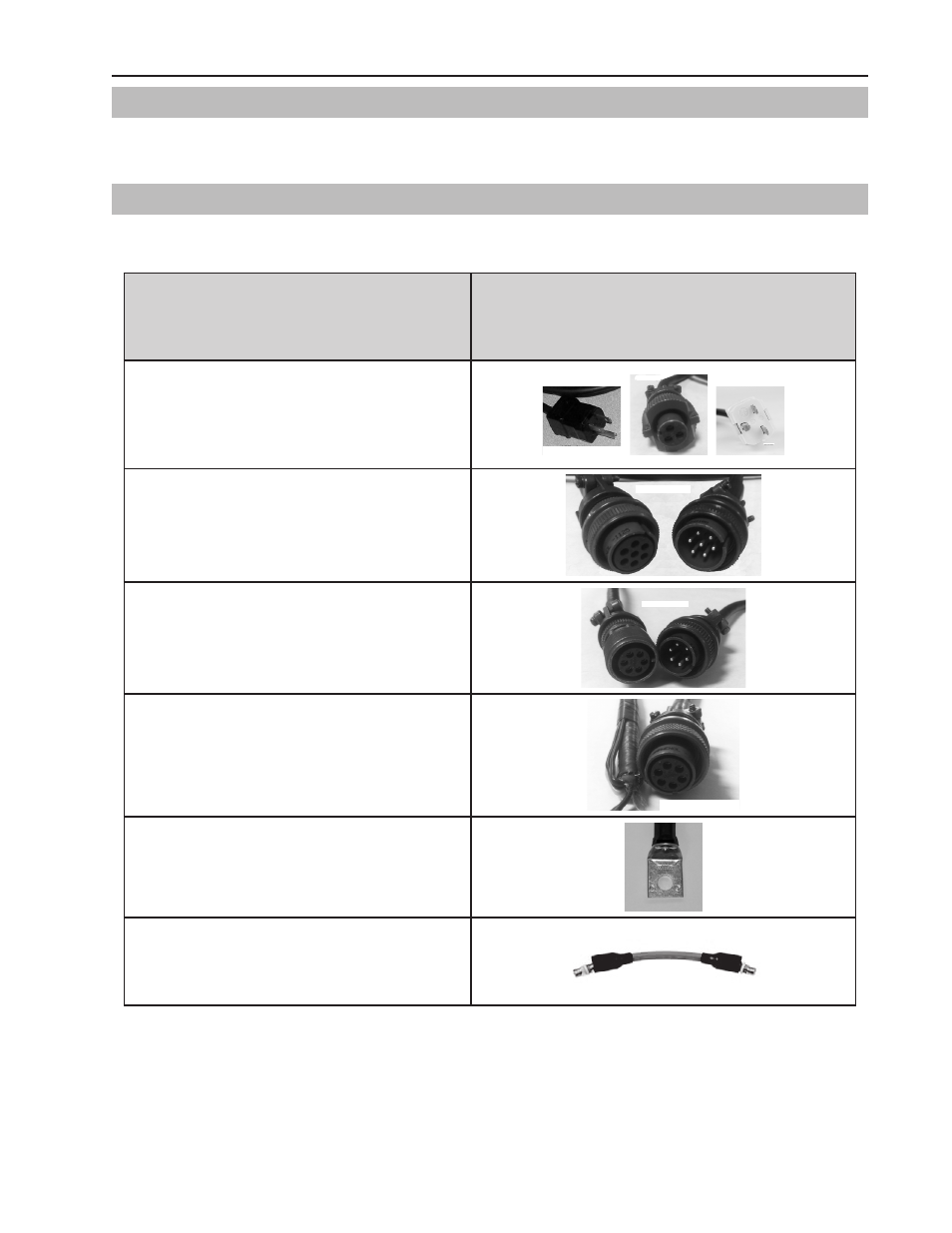

Cable
Description
Routing
AC Power Cable Assembly
Plug rated for 110VAC 60Hz or 220VAC 50Hz with
3 pin connector at opposite end.
Outside power to Control Box ART# A-10858_AB
ART# A-10863_AB
ART# A-10854_AB
Remote Pendant Cable Assembly
Large 7 pin connector with male/female ends.
Pendant to Control Box
ART# A-10862_AC
Motor Cable (on Torch Head) Assembly
6 pin connector with male/female connectors.
Control Box to Torch Head
ART# A-10859_AB
Power Supply Communication Assembly
6 pin connector with female connector and a cut
end.
Control Box to Power Supply
ART# A-10860_AC
DC Power Cable Assembly
Based on customer requirements.
Control Box to Torch Head
ART# A-10839_AC
Air Hose Assembly
Based on customer requirements.
Control Box to Torch Head
Table 4-7: Cable Identification
