SYSTEM COMPONENT DESCRIPTION 3-6 Manual 89250890
N7500 SYSTEM COMPONENT DESCRIPTION
3.03 Remote Pendant
Remote Pendant provides the welder/operator the ability to:
• Start/stop the gouging operation,
• Manually jog of the air carbon-arc electrode in the Torch Head prior to gouging,
• Pre-set options to ensure proper operation of the system.
8
9
6
7
2
4
3
1
10
12
5
11
ART# A-10856_AB

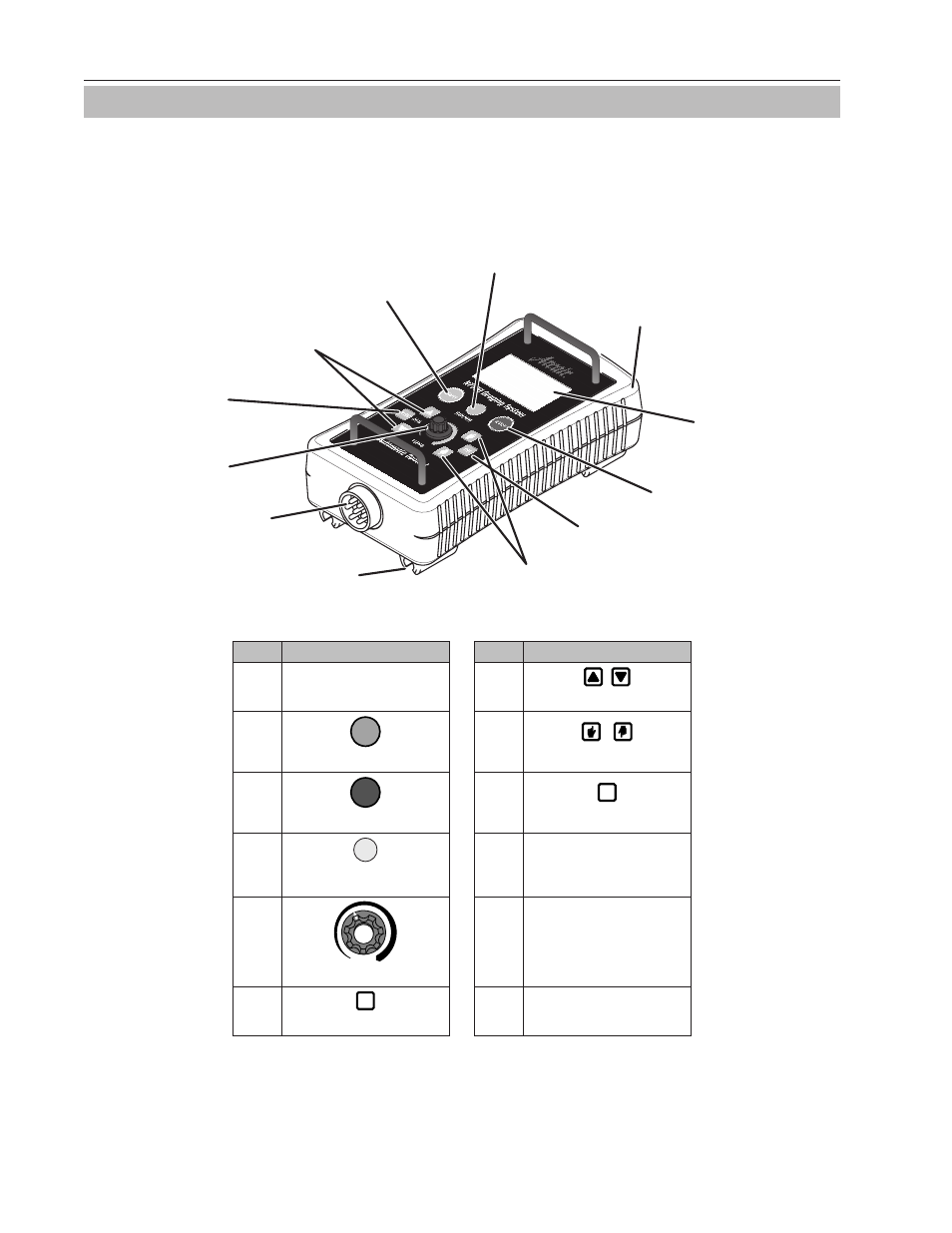

Figure 3-9: Remote Pendant
Item Feature Item Feature
1 Mode-indicator Display 7
Jog Up/Down Travel
2
START
Start Button
8
Mode Selector
3
STOP
Stop Button
9
OK
OK Button
4
Rough (Machining)
10 Connector
5
Rotary Dial
11 Bumper
6
TRV
Travel Button
12 Grip Feet
Table 3-10: Remote Pendant Controls
For additional details on the operation of the Remote Pendant see “5.04 Remote Pendant Programming” on page
5-3. For storage information see “4.07 Remote Pendant Storage” on page 4-9.
