Page 38

iCNC XT

3-18

INSTALLATION

Manual 0-5299

3.14 Setting up the Motion

CAUTION

Disengage all motors from rails before doing the motion test. Disregarding this may result in mechanical damage.

NOTE

Important - Please complete all motion set up, in sequence, before operating the controller.

Supply voltages must be present for the system to work.

1. Start with the following switches in the position listed.

• Plasma Enable - OFF
• EStop - Pushed IN.
• Drive Enable - OFF
• Drive - OFF

2. Apply servo drive power.

3. Apply 115 VAC to CNC.

4. Turn on CNC via momentary input power toggle switch located lower right corner of system.

5. Wait for all screens to appear then pull (release) the EStop button.

6. Wait for the optional Lift Enable screen to fade. (See Lifter instructions) Select NO to the Home Question

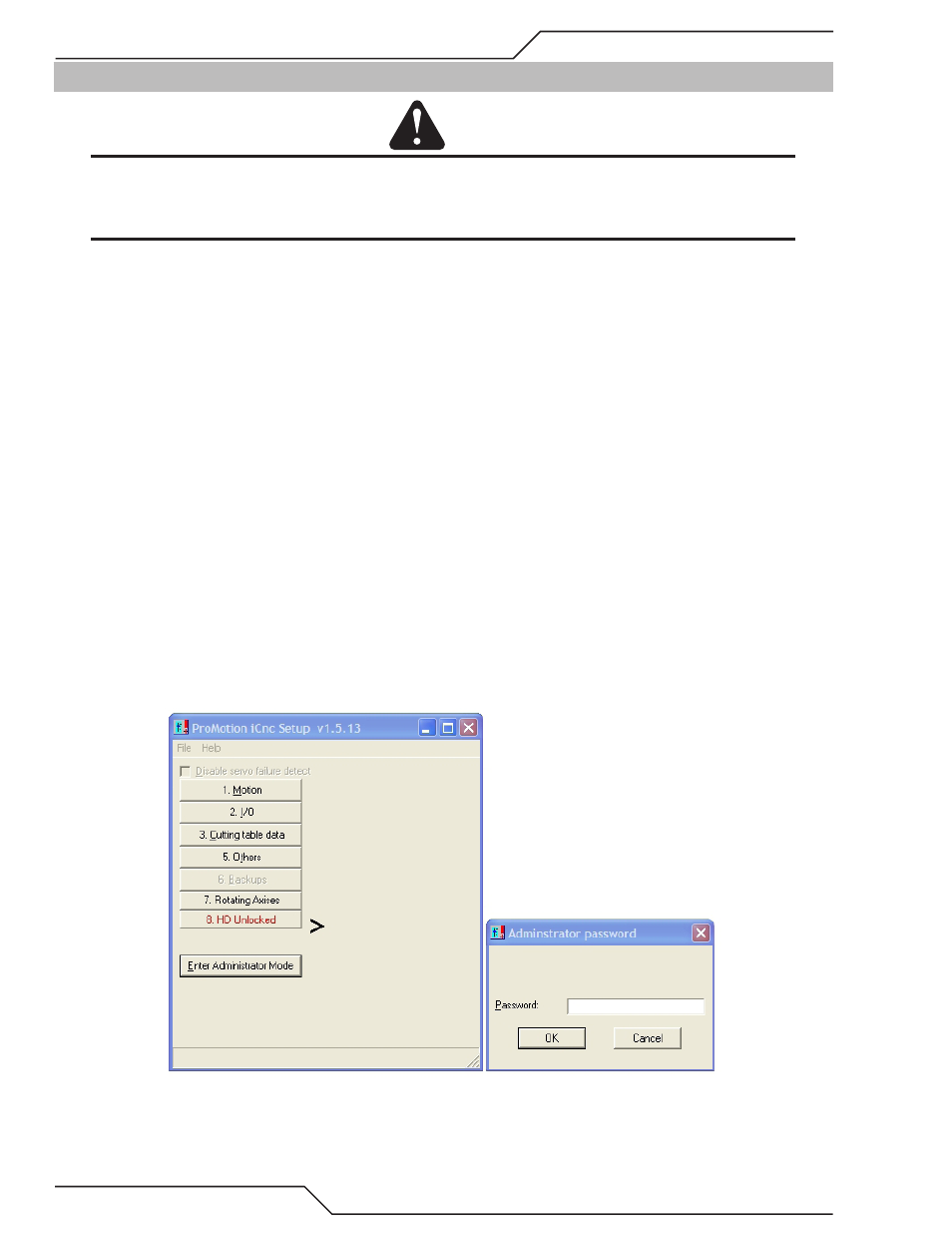

7. From the ICNC screen click on the following:

• Info
• File
• ICNC Setup

8. Click Enter Administrator Mode and enter the password (pmcs1).
