iCNC XT

Manual 0-5299

INSTALLATION

3-9

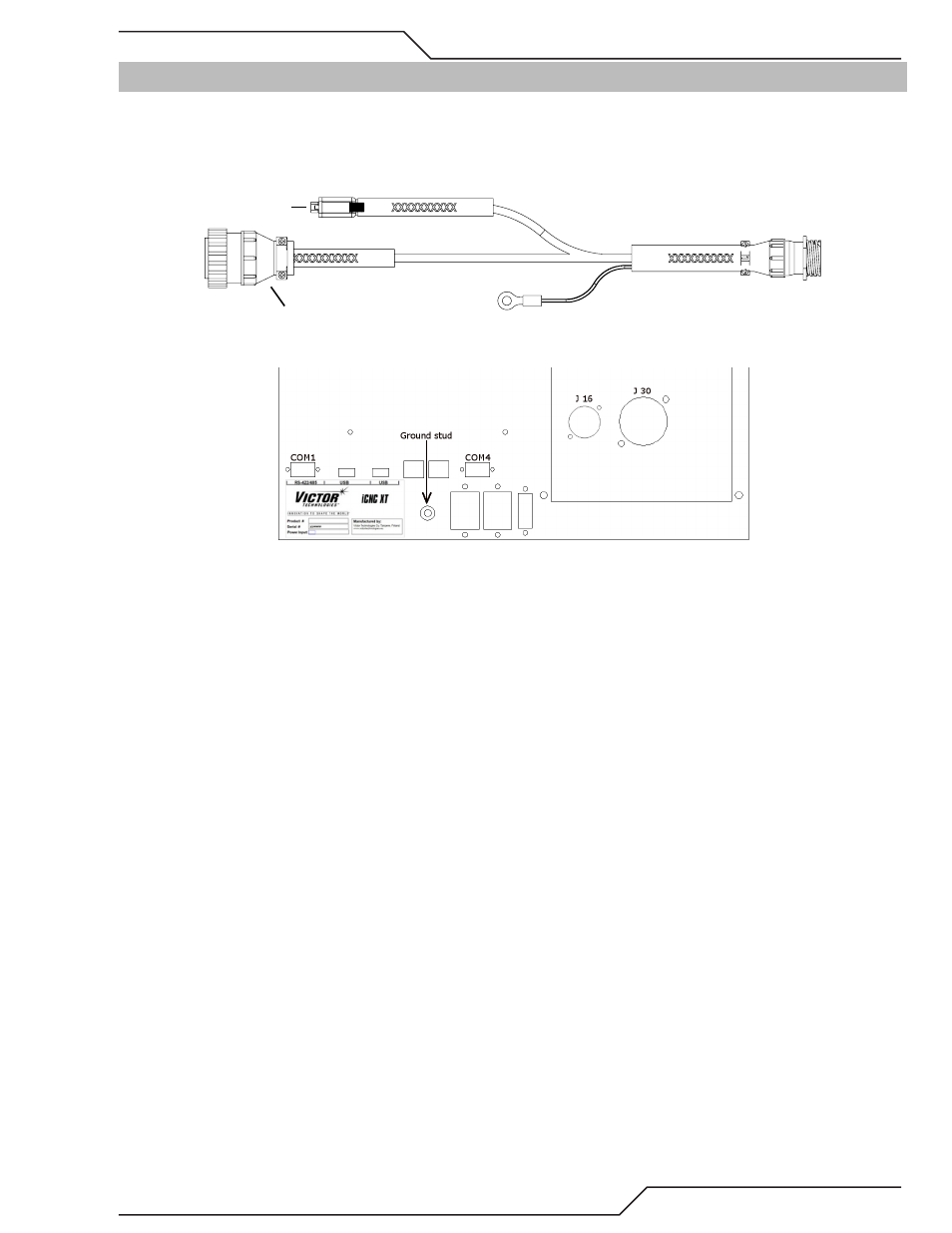

3.7 Plasma Communication, Plasma I/O

1. Connect the CNC end of the 9pin D connector to the serial port marked COM1 at the back of the XT CNC.

2. Connect the 37 pin male amp connector at the back of the XT CNC as follows: For XT211/XT231, J30 to the J30 plasma connector. For

XT2/242, J25 to the J25 plasma connector.

3. Connect the ground wire to the ground stud at the back of the XT CNC.

CNC J25 / J30

CNC COM1

CNC Ground Stud

J54 TCS / COM

4. Route the cables in the cable track Try to place the cables with the other I/O cables on the opposite side from the plasma work, electrode,

ohmic and other high noise cables.
