2-2 SPECIFICATIONS Manual 0-5299
WARNINGS
DO NOT CONNECT the controller directly to a computer through the RJ45 or RS232 port! Connections must be made
with fiber optic devices, wireless LAN, short haul modems or other approved devices which provide galvanic isolation,
due to ground loops, electrical noise, or high frequency which can destroy electrical components in the controller or
host computer. Failure to follow these rules will VOID THE WARRANTY!
This device is an enclosed type AC Servo Driver with single-phase input and three-phase output. This device is pro-
vided with an integrated PLC and a Windows based user interface.
1. Use minimum 75 ºC copper wire only
2. Use Copper Conductors Only
3. Suitable for use on a circuit capable of delivering not more than 5000 rms symmetrical Amperes, 230 Volts maxi-
mum.

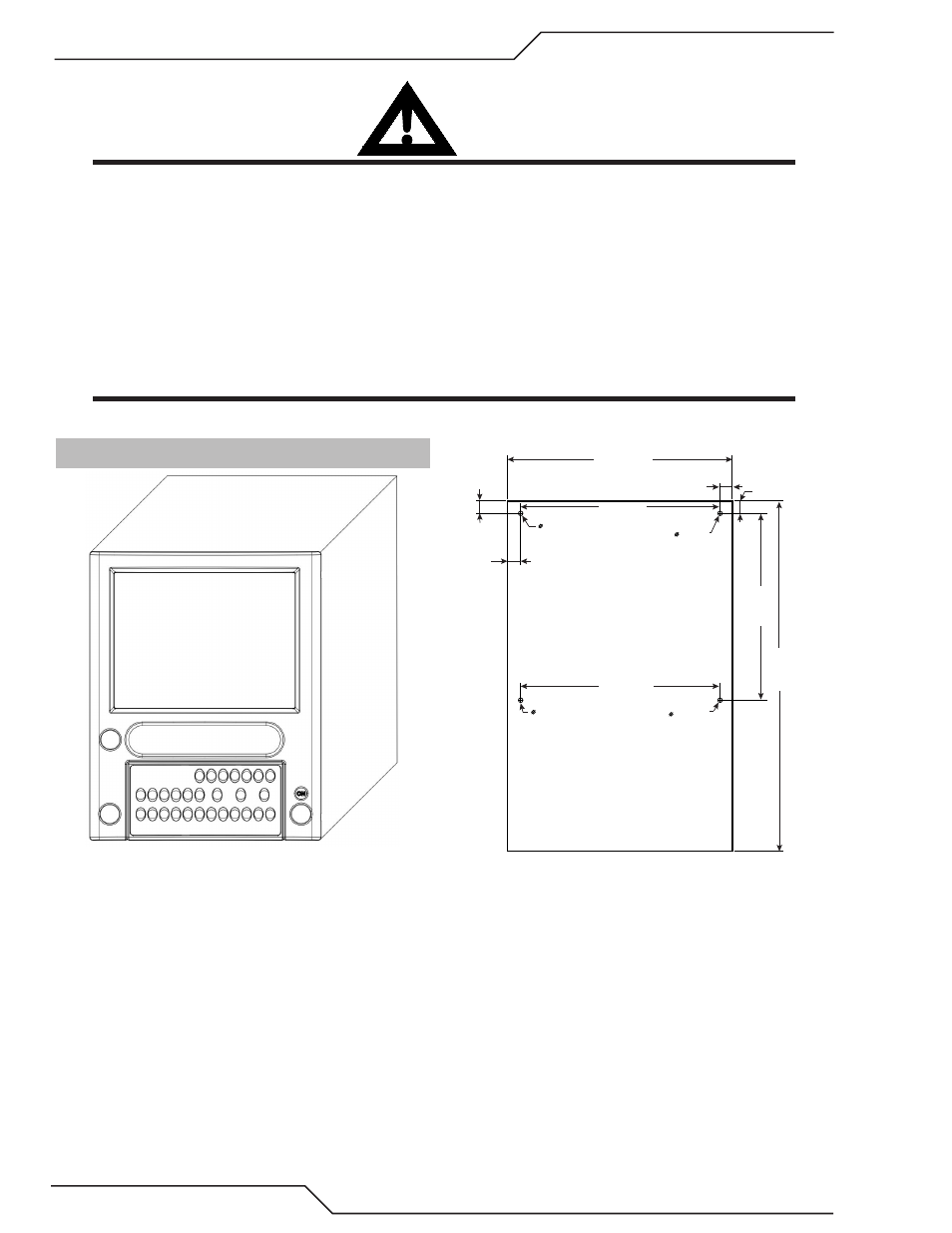

2.1 Mechanical dimensions XT CNC
Cnc dimensions:
Height 17.7 in. (450mm)
Width 15.7 in. (400mm)
Depth 16.9 in. (430mm)
15.35in
(390mm)
0.86in
(22mm)
0.9in
(23mm)
0.83
(21mm)
0.3in
(8mm)
13.6in
(345mm)
0.83
(21mm)
12.6in
(320mm)
23.6in
(600mm)
0.3in
(8mm)
0.3in
(8mm)
0.3in
(8mm)
13.6in
(345mm)
Mounting Plate:
Width 15.35 in. (390mm)
Depth 14.3 in. (363mm)*
Mounting holes 13.7 in. X 12.6 in. x 4xM6 (349mm x 320mm, 4
x M6)
* Max plate thickness 20mm with the provided mounting screws.
* Some users might want to expand the bottom plate from the front side. Usually you would create a space for a keyboard, mouse, or just some
work space for papers etc.
