OPERATION 4-2 Manual 0-4764
4.02 Control Console Features
GAS
SHIELD
H 2 O MIST
RUN
SET
PLASM A
SHIELD
GAS
H 2 O MIST
RUN
SET PLASMA SHIELD
SHIELD
A
CUT
OUT

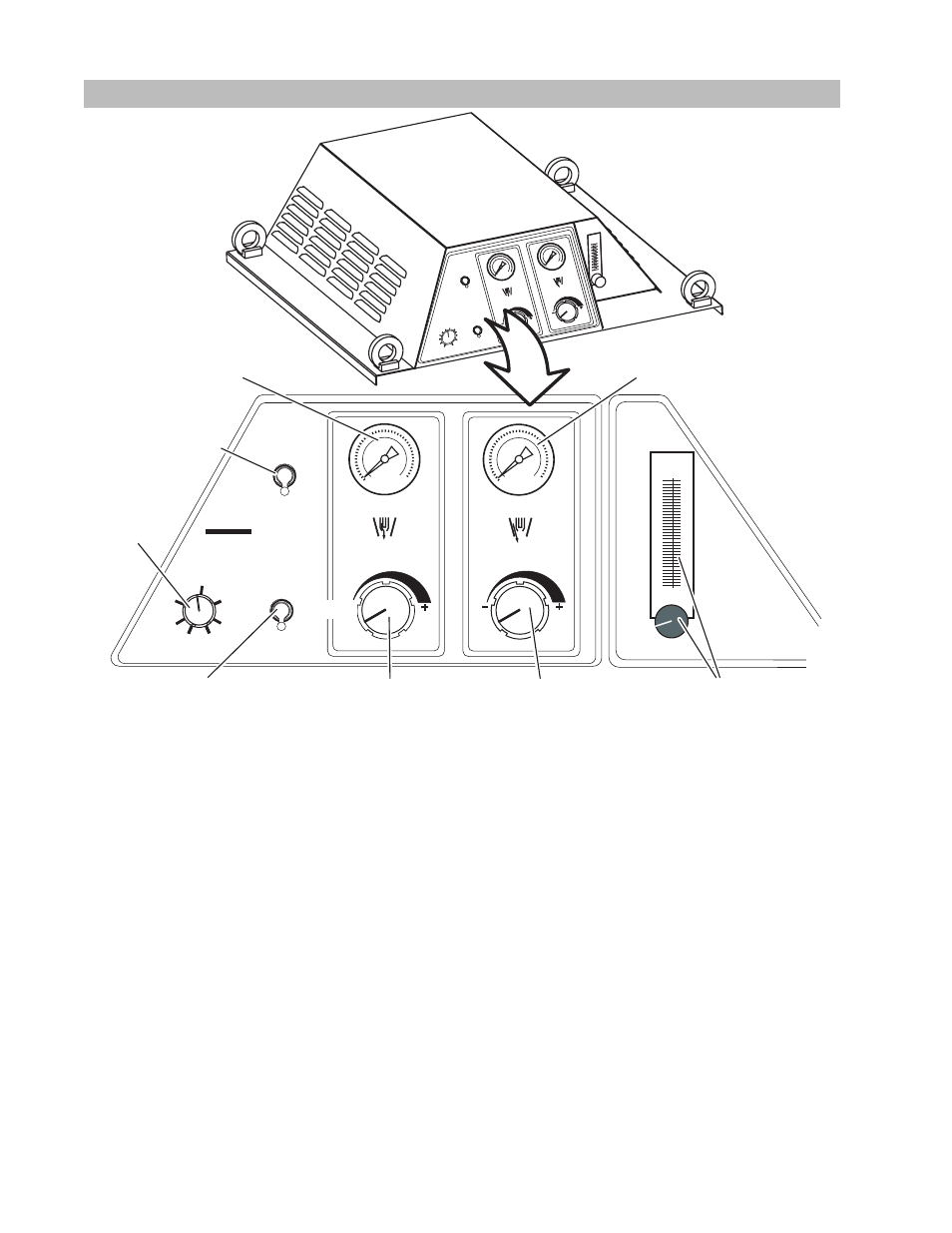

Art # A-06802
Amperage
Selector
Shield
Selector
Run / Set Selector
Plasma Gas
Pressure Gauge
Shield Gas
Pressure Gauge
Plasma Gas Pressure
Control Knob
Shield Gas Pressure
Control Knob
H2O MIST
Water Mist (Shield) Flow Meter
and Control Knob
GCM
1000
A
CUT OUT
Run / Set Selector: Use SET position to adjust plasma and shield pressures and flows. Once these are set, switch to
RUN position for operation.
Plasma Gas Pressure Control Knob: Adjust plasma pressure. Turn knobs to set desired level.
Shield Gas Pressure Control Knob: Adjust shield gas pressure. Turn knobs to set desired level.
Plasma and Shield Gas Pressure Gauges: Display plasma and shield gas pressures.
Shield Selector: Selects shield fluid, gas or H
2
O Mist (water).
Water Shield Mist (H
2
O) Flowmeter and Control Knob: Controls flow rate of shield water supply.
Amperage Selector: Continuously adjustable up to 100 Amps.
