Tweco 100 Auto-Cut - Manual (Page 46)

INSTALLATION 3-10 Manual 0-4764
3.07 Connect Work Cable
1. Pass the end of the work cable upward through the bracket at the bottom edge of the rear panel, and
through the opening in the connections cover support panel.
2. Refer to the illustration. Connect the lead as shown. Tighten securely. Do not overtighten.
WARNINGS
Ensure that lead attachment hardware is properly sized. Excess length may cause damage if hardware contacts
other parts of the system.
The clear connections cover must remain in place.
AC INPUT
L1
L2
L3
PILOT
WO
RK
T
ORCH
Connection Panel
Work Lead
Work Cable
Connections Cover
Support Panel

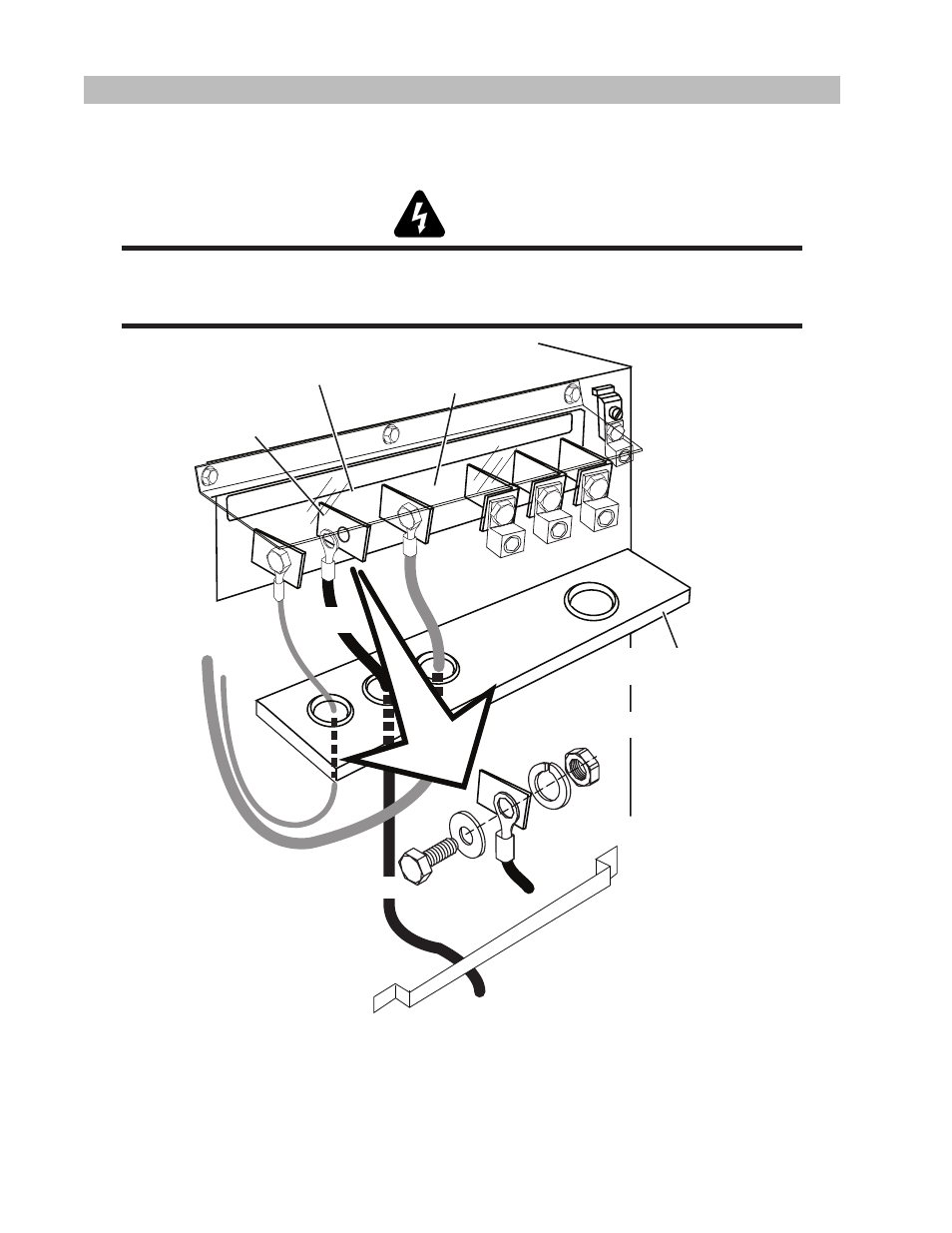

Art # A-04845
Connections Cover
Leads Bracket
To Cutting Table
Work Lead Connection Detail
