INSTALLATION CUTMASTER 42
Manual 0-5171 3-5 Installation
Art# A-09333_AC
26lb / 11.8kg
7" (177mm)
18.5" (469.9mm)
9" (228.6mm)
CUTMASTER
® 42
120V 15A
120V 20A
230V 20A
A
24
40
20 20
30
27

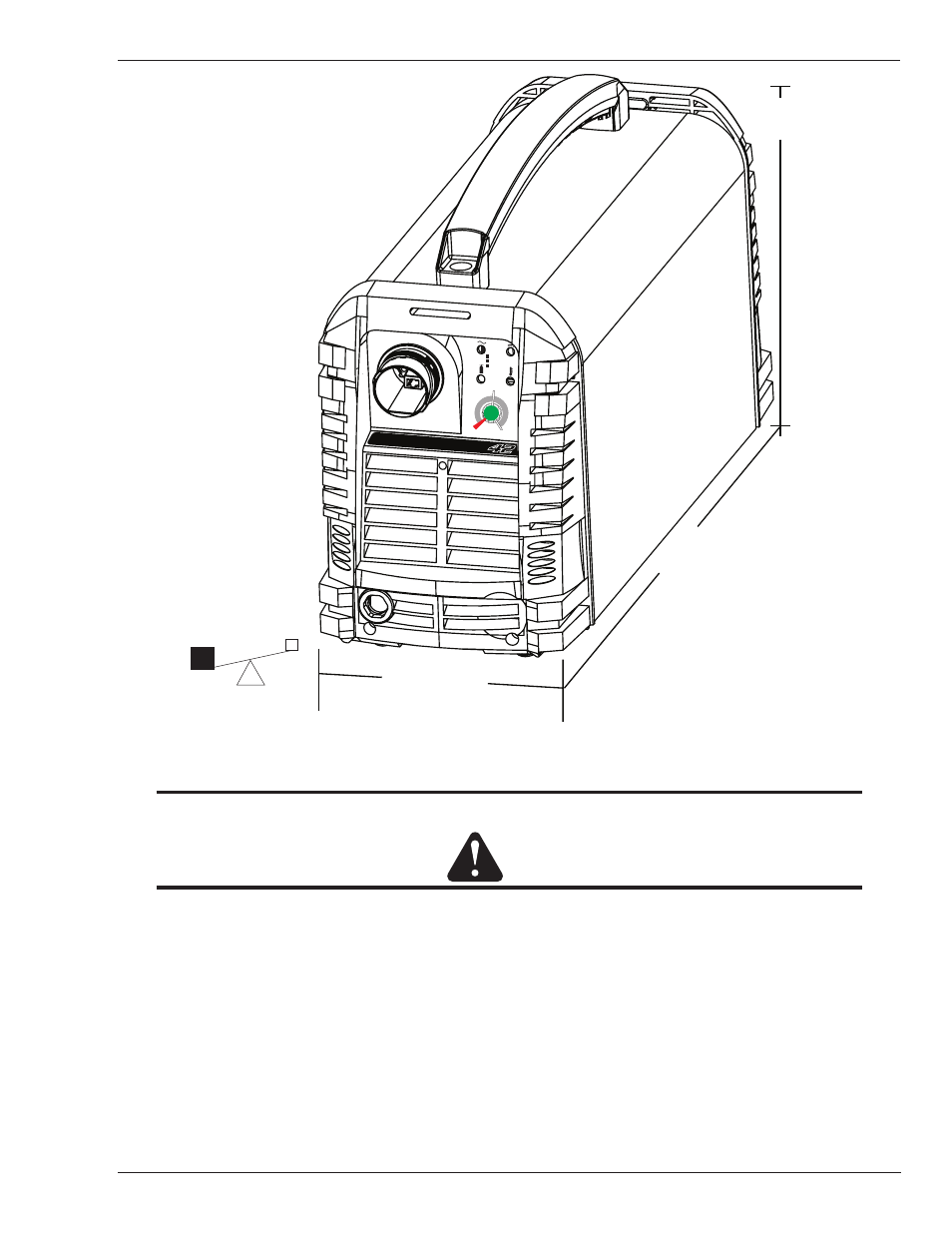

Figure 2-1 Power Supply Dimensions & Weight
NOTE
Weight includes torch & leads, input power cord, and work cable with clamp.
CAUTION
Provide clearance for proper air flow through the power supply. Operation without proper air flow will
inhibit proper cooling and reduce duty cycle.
