CUTMASTER 42 INSTALLATION
Installation 3-2 Manual 0-5171
3.03 Primary Input Power Connections
Power Cords Included With Power Supply
Attached to the power supply is an input power cord with a 230 Volt 50 Amp NEMA 6-50P for plug. Supplied adapters
allow for connection of the power supply input cable plug for when using 120V input power.
Art# A-09432_AB

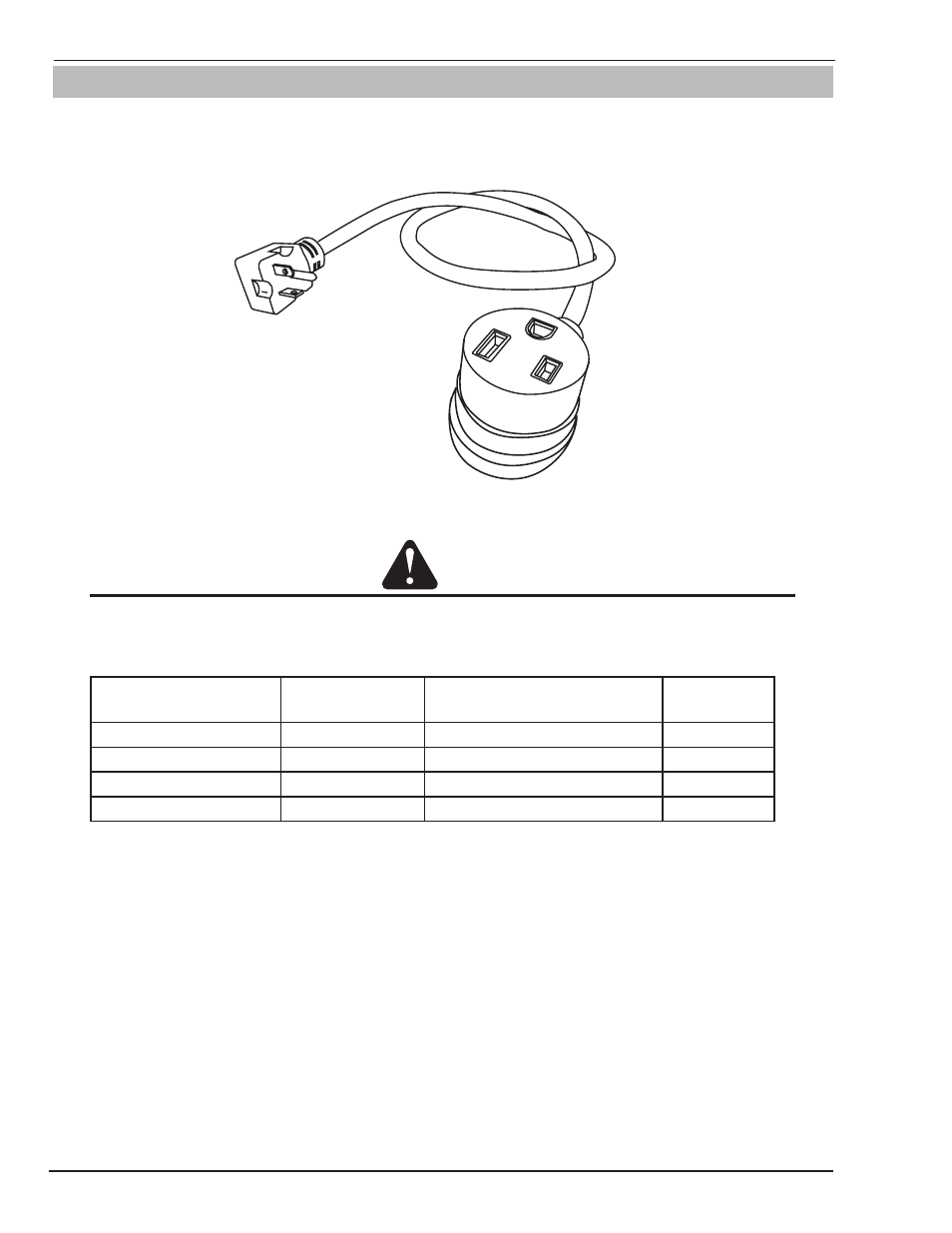

Figure 3-1 120VAC Adapter Pigtail
CAUTION
Check your power source for correct voltage before plugging in or connecting the unit. The primary power
source, fuse, and any extension cords used must conform to local electrical code and the recommended
circuit protection and wiring requirements as specified in Section 2.
Input Voltage (VAC) Rated Output
Amps (RMS) input at rated out-
put, 60 Hz, single-phase
kVA
120V, 15A Circuit 20A, 88V 20.4 2.5
120V, 20A Circuit 27A, 91V 28.5 3.5
120V, 30A Circuit 27A, 91V 28.5 3.5
208-230V, 20A Circuit 40A, 96V 23-21.4 4.8
