SONIQ DVR150 - Manual (Page 18)

SCART IN SCART OUT
21 pin Scart connector to 21 pin
Scart input on Television(option)
Scart
/RGB
input
SYSTEM CONNECTIONS
Connection of using rear panel input trminals
Monitoring
Output
S-VIDEO
Connect One of the Two Cables
Y
ellow
Red
White
S-VIDEO
VIDEO
AUDIO
L
R
IN
R-A/V Source
R-SV Source
TV Source
External Input Signals
Connection
Antennas
or
Cable
TV
Signals
S-VIDEO
VIDEO AUDIO L R
OUT
The Rear Panel of this Unit
External Source Signals
Yellow
Red
White
Red
White
Y
ellow
S-VIDEO
IN IN
VIDEO
AUDIO
L Y FL VIDEO RL CENTER
OPTICAL S-VIDEO OUT
TV
R C b Cr FR S-VIDEO RR SUBWOOFER COAXIAL
INPUT VIDEO OUTPUT DIGITAL OUT 5.1CH SURROUND AUDIO OUT

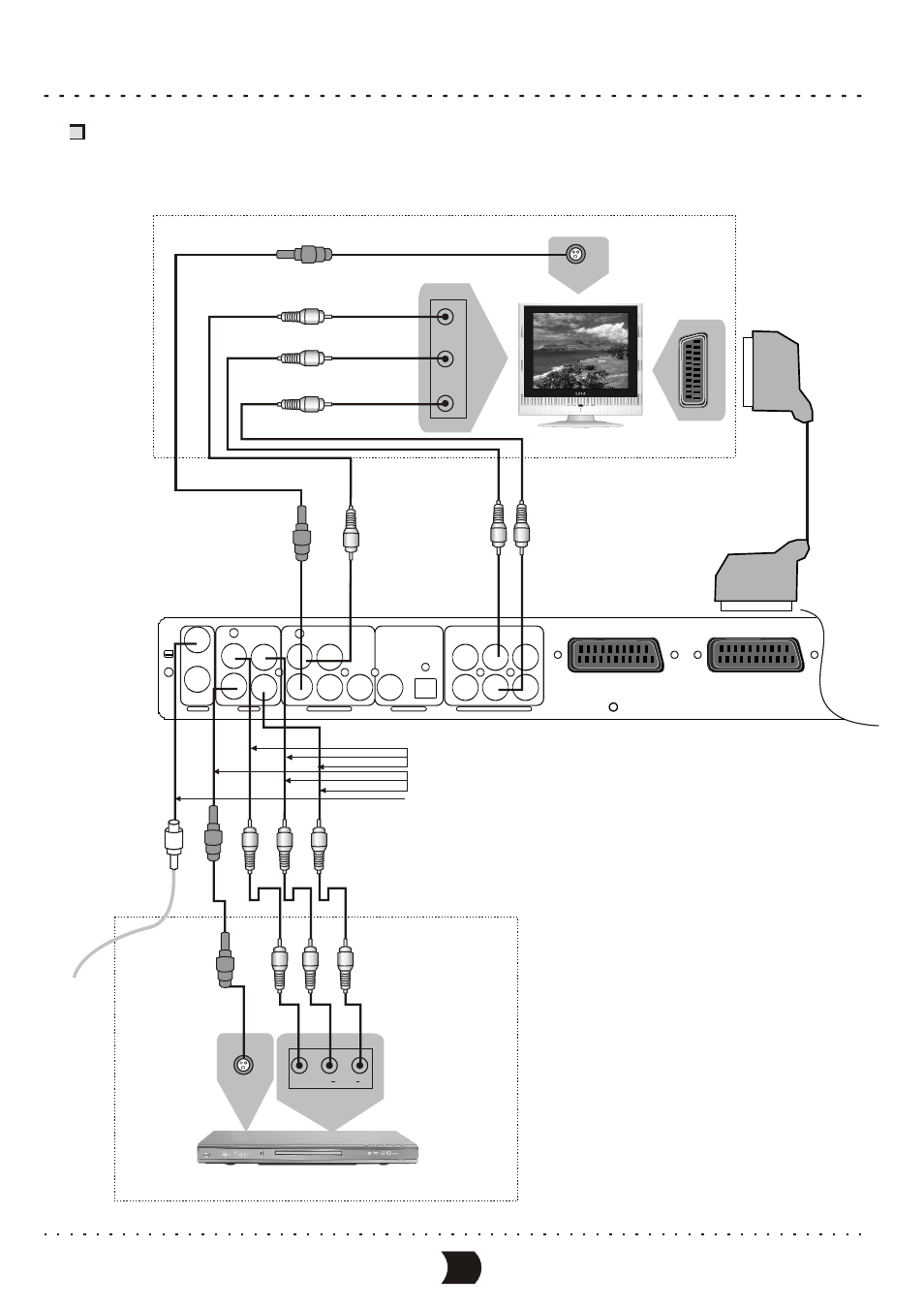

System Connection of Recording External Signals
