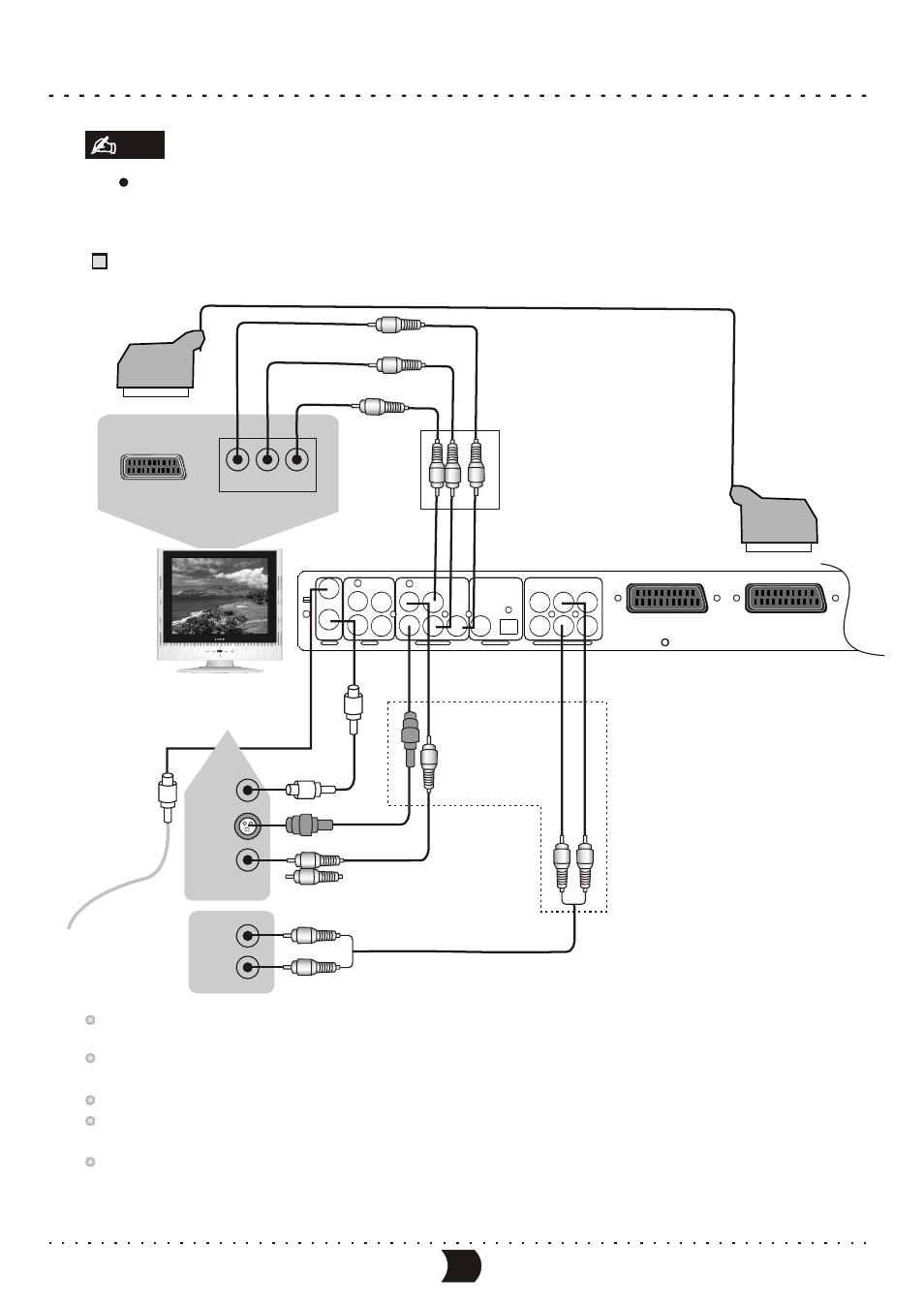

Connecting to the TV set
Illustration of the Rear Panel
Antennas
Cable
75
TV Coaxial Ca
ble
S-Video Cable
Video Cable
Audio Cable
connect one of the two cable
Output
of
this
unit
Component
video
output
9
SYSTEM CONNECTIONS
Note
Make sure that the player and other equipments are unplugged before connecting.
This unit incorporates three video output: component video, S-video and composite video. You can connect
one of them according to your TV set’s input terminals.
Make sure that this unit outputs video by component video output terminals when you select the progressive scanning
function.
In terms of picture quality, component video is the best followed by S-video and composite video.
If the audio output is connected to a TV set, please connect L and R to the AUDIO INPUT terminals
in the same group as the VIDEO IN terminals in the TV set.
When you are not recording TV programs, you do not necessarily need to connect the Antennas Cable and TV Coaxial
Cable to this unit.
