SYSTEM CONNECTIONS
The Rear Panel of this Unit
Video In
Amplifier with 5.1CH Audio Input
This unit is equipped with built-in Dolby Digital decoder (Dolby AC-3 decoder). Therefore, it does not necessarily need
amplifiers with Dolby Digital processor to play DVD discs recorded with Dolby Digital Surround. When this unit is connected
to amplifiers with 5.1CH audio input to play DVD discs recorded with Dolby Digital Surround, you can enjoy theater
effect at your home. Please set the Analog Audio Output to “5.1CH”. (Please refer to”System Setup-Analog Audio Output
Setup” for details).
CENTER
L
R
FRONT
SUBWOOFER
SURROUND
IN
IN
VIDEO
AUDIO
L
Y
FL
VIDEO
RL
CENTER
OPTICAL
S-VIDEO
OUT
TV
R
C
b
Cr
FR
S-VIDEO
RR
SUBWOOFER
COAXIAL
INPUT
VIDEO OUTPUT
DIGITAL OUT
5.1CH SURROUND AUDIO OUT

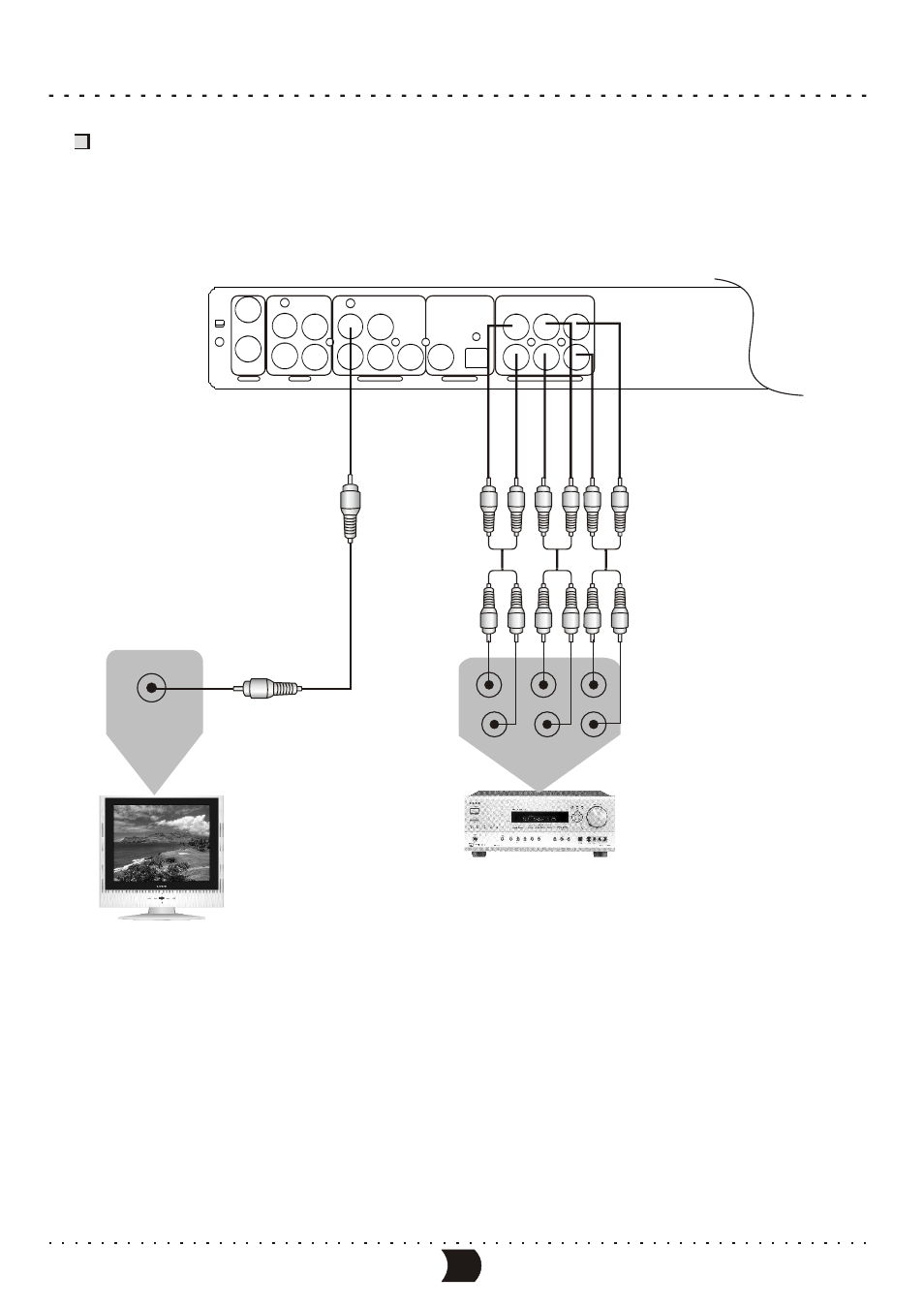

Connecting to the Amplifier with 5.1CH Audio Input
12
