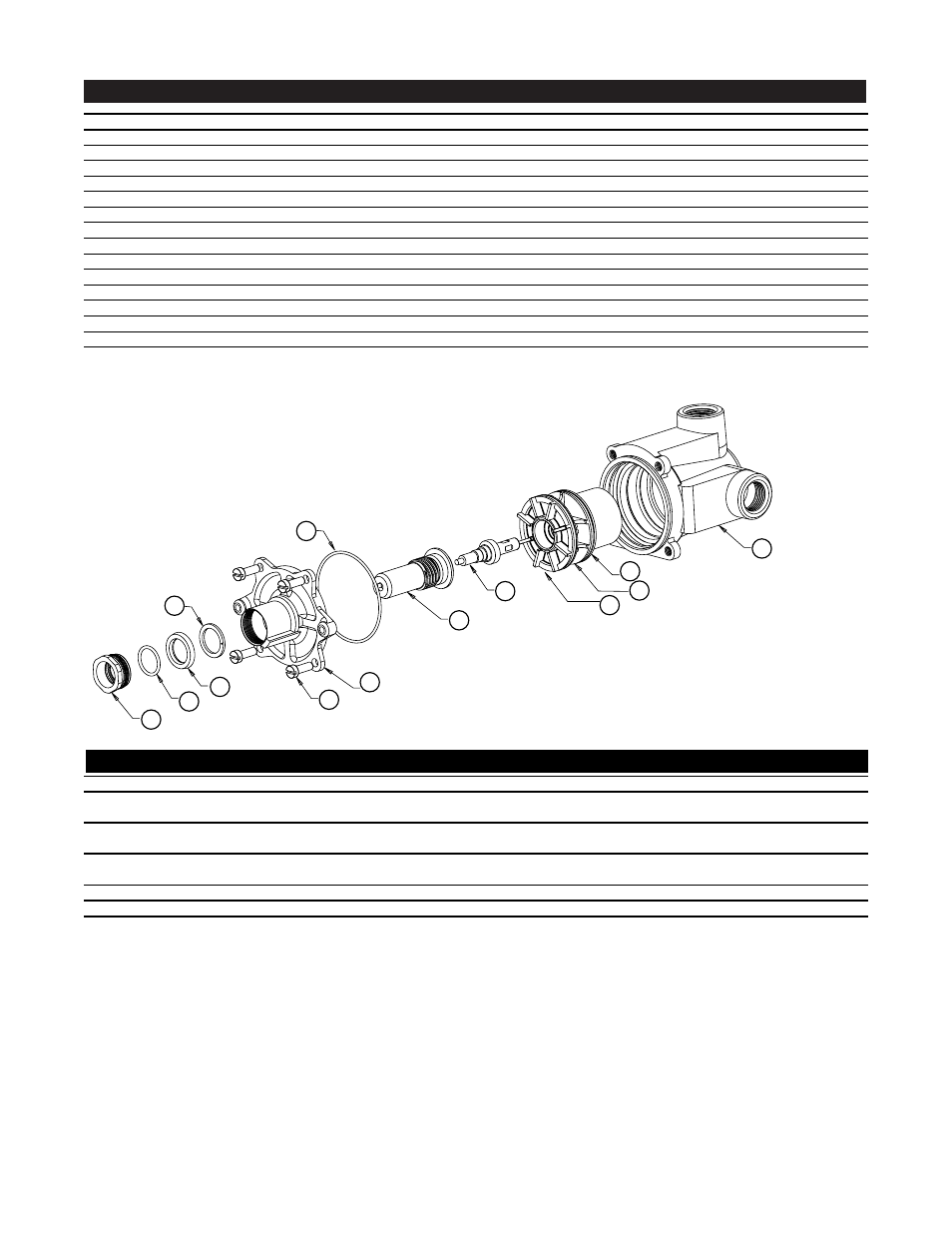

PARTS LIST
REPAIR KIT PART NUMBERS
Problem Recommended Kit Type Repair Kit No. Includes Items
Variable or untempered Thermal Actuator 420-453 Thermal Motor, Bonnet O-Ring,
discharge temperature (21, 23)
Water leaks at bonnet/body Soft Parts Kit 420-456 Stem O-Ring, Bonnet O-Ring,
Shutoff Disc
Variable or untempered discharge temperature Cartridge Kit 420-452 Cartridge, O-Rings,
continues after motor replacement
Bonnet Kit 420-610 Bonnet O-Ring
Models 8-9 Upgrade Kit 420-611 All items except 27
227-258
047-129
047-029
420-140
420-024
420-139A
420-210
030-887
225-404
420-508
420-578 16
14
17
18
4
20
21
22
23
25
27
26
24
Item # Product # Description Material
4 420-214 Screw Kit (12 pcs.) Stainless Steel
4A 080-050 Vandal Resistant Screw Kit (12 pcs) Stainless Steel
14 084-014 Stem “O” Ring Buna N
16 420-578 Packing Gland Brass
17 225-404 Huva Cup Buna N
18 420-210 Packing Stop Ring Brass
20 * Bonnet (use 420-610 kit)
21 047-128 Bonnet “O” Ring
22 * Stem (use 420-610 bonnet kit) Brass
23 * Thermal Actuator (use 420-453 kit)
24 * Cartridge (use 420-452 kit)
25 * “O” Ring (use 420-610 bonnet kit) Buna N
26 * “O” Ring (use 420-610 bonnet kit) Buna N
27 N/A Body Brass
N/A = item not available as an individual commercial part.
