The packing on a Flowrite valve or #11 Regulator provides

a seal around the valve stem to prevent loss of the controlled

medium (i.e., steam, water, ethylene glycol solutions, etc.),

while allowing the valve stem to pass through the packing for

functional opening and closing of the valve.

V-RING PACKING

All Flowrite Valves and #11 Regulators now utilize the

spring loaded V-ring packing, choose the proper and V-ring

packing kit from Table 1. The teflon V-ring packing does not

require lubricant. The EP V-ring packing must be lubricated

with silicone grease (part #590-165A) prior to installation.

Use of lubrication in service is optional. The packing rings

are not split and disassembly of the valve is required to

install or replace this packing.

Repacking Procedure...

CAUTION: Isolate the valve so medium (water, steam,

etc.) will not leak out of the valve body when disassembled.

1. For Flowrites, remove and cap airline to valve actuator.

2. Remove actuator and disassemble valve body.

3. Check the stem. It must have a polished surface that

is free of roughness or pitting, Replace the stem if

necessary(see applicable Product Manual for stem

part number).

4. Remove the old packing and clean packing chamber.

Be sure it is free of dirt and grease.

5. On valves with removable stem bearing (ST, SD),

examine it and replace if damaged. If replaced use epoxy

type adhesive (required only on ST valve)to hold the new

bearing in place.

6. Slide the stem assembly into the bonnet.

7. The packing parts must be installed in the exact order

shown in Figure 1. Place split ring (split ring must be

lubricated), washer, and spring over the stem and gently

push each piece into the packing chamber.

8. Slide each V-ring (EPV-rings must be lubricated) over

the stem and carefully push it into the packing chamber.

9. Place gland spacer on top of bonnet.

10.Thread the packing gland assembly into the bonnet.

Finger tighten the gland assembly against the spacer.

11. On valves with an “O”-ring seal(Reverse acting ST type

valves, 1-1/2 - 2"), located on the bottom guide, remove

old seal and replace it with a new one.

12. Reassemble the valve body and attach the actuator.

IMPORTANT: Set stem length correctly

13. For Flowrites, connect the air line to the actuator.

Form TB-237 v4 0510

Page 2

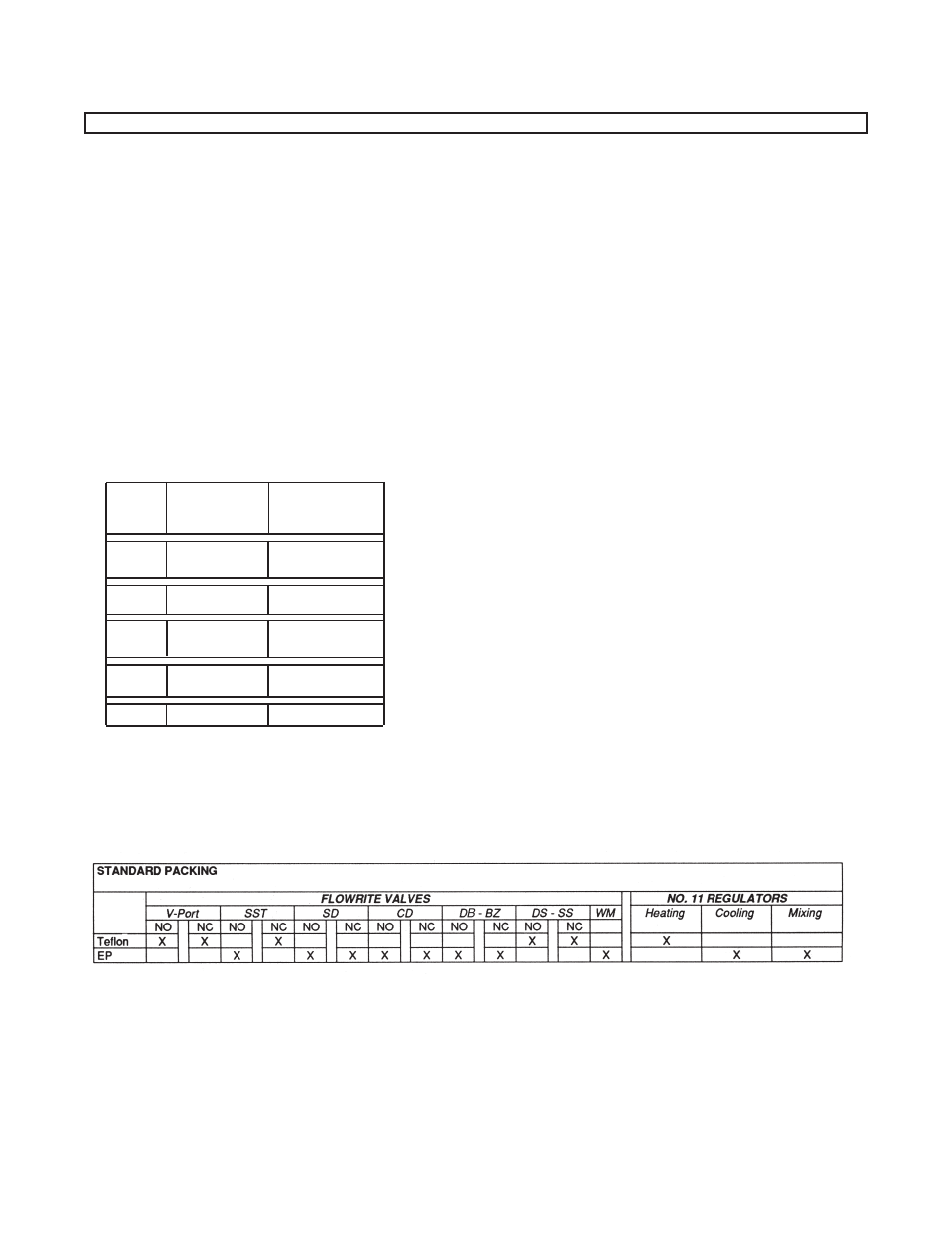

PACKING APPLICATIONS

TYPE

SIZE

STEM DIAMETER

OF inches

AT

PACKING

VALVE

inches (mm)

CD

1/2 thru 1-1/2

1/4 (6.4)

WM

1/2 thru

3/8 (9.5)

DB/DS

1 thru 2

1/4 (6.4)

SD

3/4 thru 1

1/4 (6.4)

1-1/4 yhru 2

3/8 (9.5)

SS

1/2 thru 1

1/4 (6.4)

V-PORT

1/2 A,B,C,D

1/4 (6.4)

Table 2. Valve Stem Sizes
