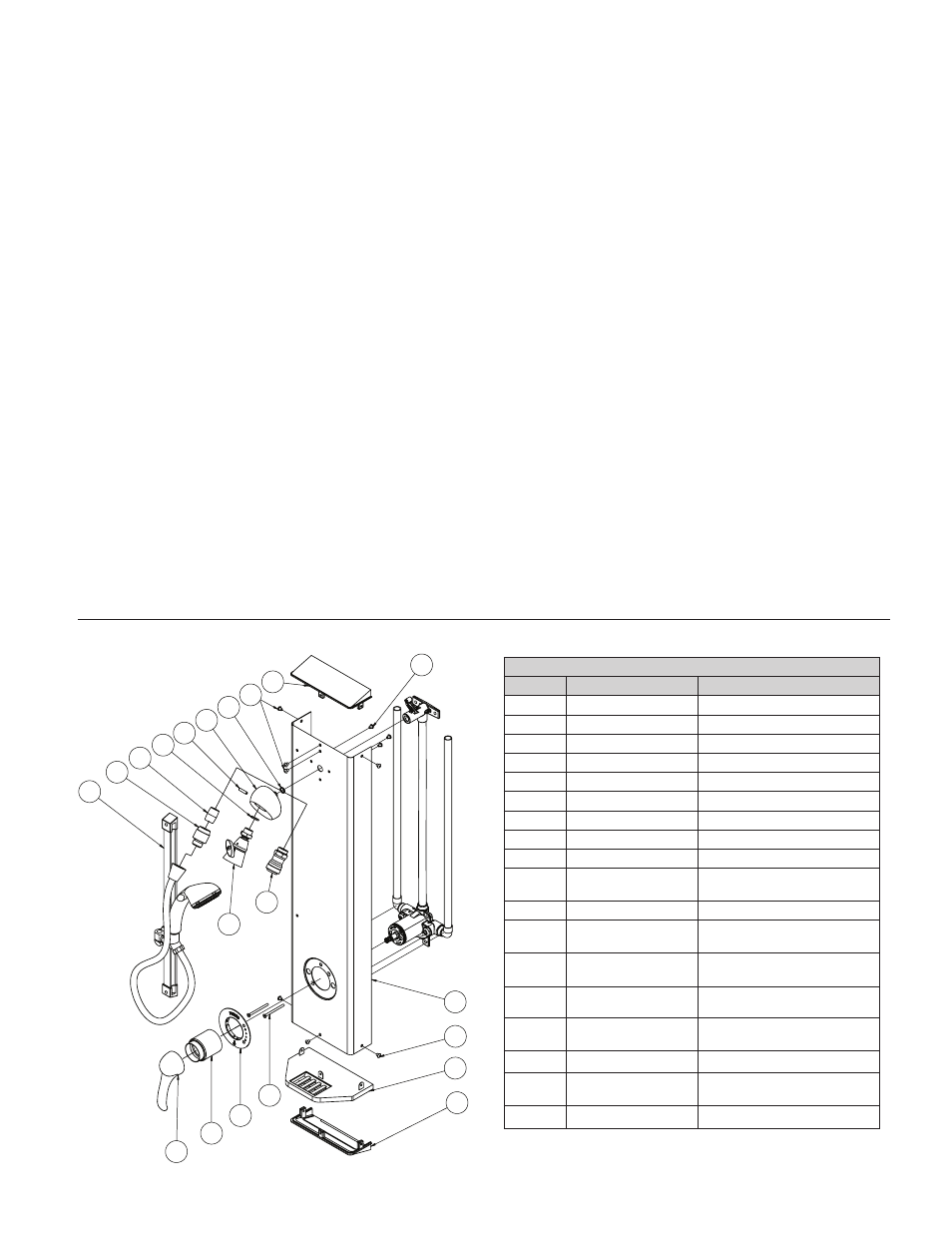

Parts List

Item

Part Number

Description

1

450-280

SHROUD (showerhead)

1

450-280A

SHROUD (handshower)

2

450-273A

SCREW 10-32 UNF x 1/4

3

450-268

SOAP DISH

4

450269G

CAP, END CHROME PLATE

5

450-272

SCREW 8-32 X 1-1/4

6

410-017A

TRIM PLATE COVER

7

220-054

SLEEVE KIT

8

420-049

HANDLE KIT

9

141-379

SHOWERHEAD - ADJUSTABLE

SWIVEL

10

141-816

SHOWERHEAD - FIXED

11

141-837

PUSHBUTTON SHOWER

HAND SPRAY

12

141-319

IN-LINE VACUUM BREAKER

(handshower)

13

042-672G

NIPPLE - 12" 'NPT X 1-1/8" LG

(handshower)

14

450-277

GASKET - SHOWERHEAD

BASE

15

450-276

SET SCREW 10-32 UNF X 7/8

16

450-267G

BASE, SHOWERHEAD

CHROME PLATE

17

047-013

QUAD RING 3/8" ID X 1/2" OD

3

What to look for if:
1. The fl ow of the water is less then desired.

a. Valves upstream from supply not fully open.
b. Low supply pressure.
c. Accumulation of lime deposit in hot water pipes, restrict-
ing the fl ow of the hot water
d. Showerhead clogged. Remove and clean.
e. Checkstops may not be fully open.

2. Flow of water is completely shut off.

a. Valves upstream from supply completely closed.
b. Failure of hot or cold water supply pressure.
c. Checkstops closed.

3. Flow is untempered hot or cold water.

a. The water supplies are connected to wrong ports.
b. Check for foreign material that may be clogging the car-

tridge.

4. Flow of water continues when valve is shut off.

a. Worn shut off disc. Replace cartridge.
b. Scratched mixing plate. Replace with bonnet/stem kit.

5. Checkstops leak or they won't shut off.

a. The checkstops may be damaged. Replace with check-

stops replacement kit.

6. Maximum temperature is too low.

a. Accumulation of lime deposit in hot water pipes, restrict-
ing the fl ow of the hot water
b. The concealed maximum temperature limit stop is not at

its maximum adjustment. Set the maximum temperature
limit stop.

c. Hot water is too low.

Troubleshooting

Parts List

1

2

3

4

2

4

2

17

15

14

13

12

11

10

9

5

16

6

7

8
