入力コネクタに接続された入力信号の種類にしたがって、前面パネルの入力切替ボタンを押して選択します。

Select the input mode by pressing the INPUT select button on the front panel according to the input

signal connected to the input connectors.

Adjustments and Settings

1

Front Panel

COLOR INPUT

RGB

MARKER

MONO

16:9

4:3

PEAKING

Function Setting

2

By pressing each function button, select the setting of each function in sequence as follows.

PEAKING

16:9 / 4:3

MARKER

RGB

COLOR/MONO

ON
OFF

16:9
4:3

no marker
16:9
16:9 with +
4:3

4:3 with +

all markers

Full color
BLUE ONLY

GREEN ONLY

RED ONLY

COLOR
MONOCROME

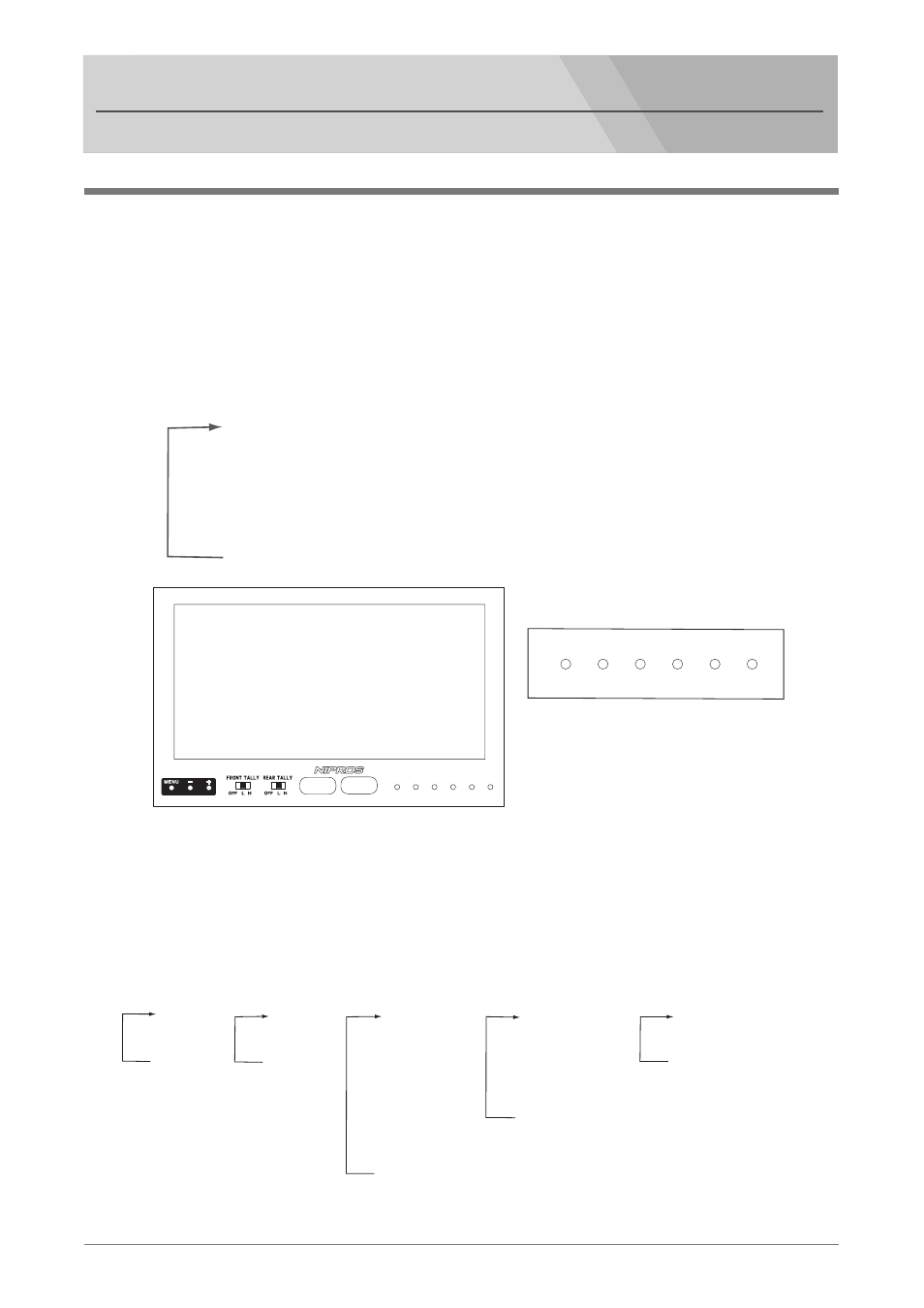

各々の機能のボタンを順次押して、必要な機能を選択して表示させます。

Function buttons

Input Signal Selection

INPUT select button

COMP 1

COMP 2

CVBS 1

CVBS 2

HDMI



HD component : HD/Y, HD/B-Y, HD/R-Y

NC

composite : CMP IN (BNC) connector

HDMI : HDMI connector

(BNC) connectors

mode(in sequence)

signal : input connector

COLOR INPUT

RGB

MARKER

MONO

16:9

4:3

PEAKING

Settings for LVM-89W

Multi-core Studio System NIPROS/S26

NC
