33

インターカムの接続

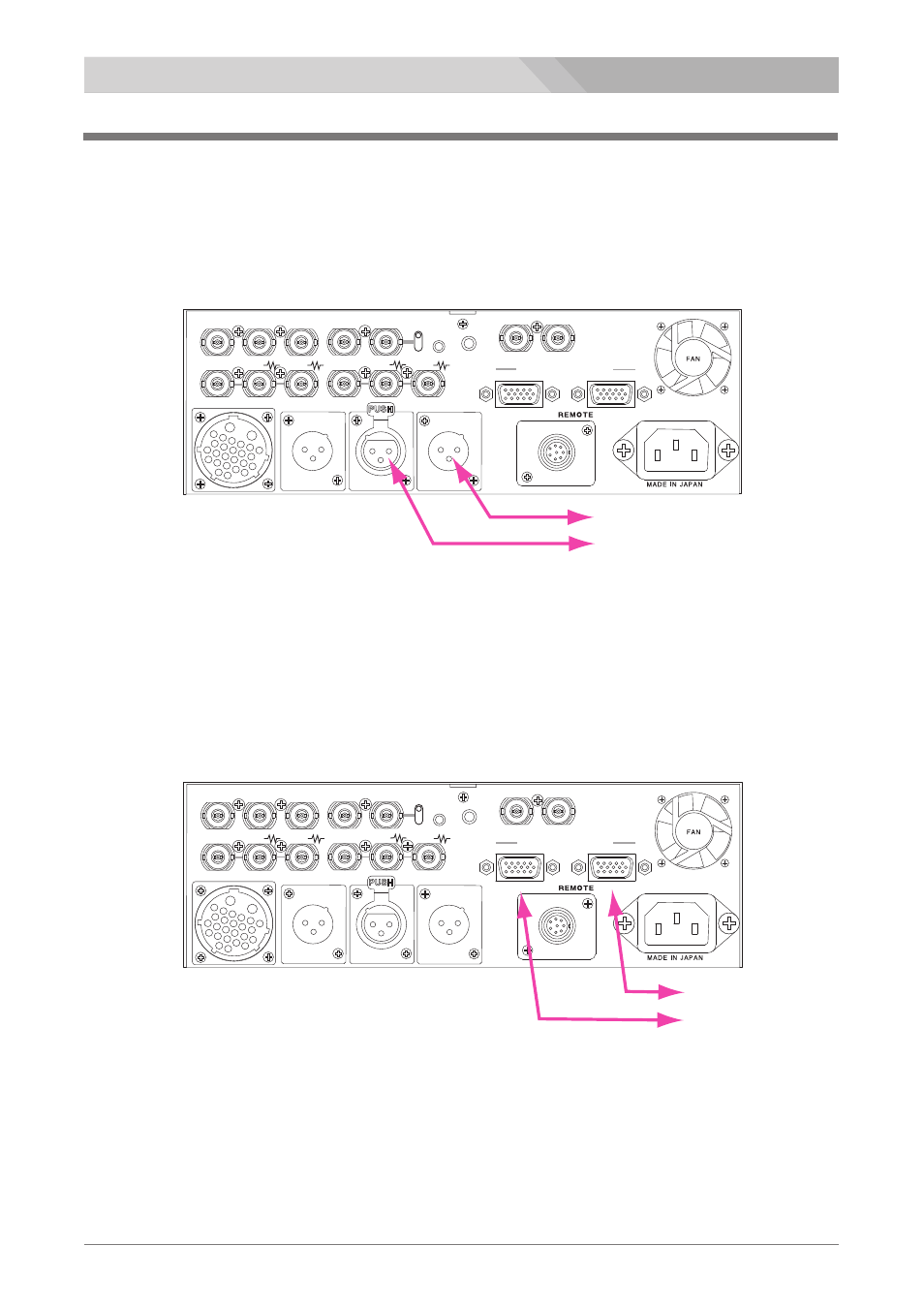

INTERCOM 2W line/4W line connection

2

インターカム 4W ラインに接続する場合は、TALLY EXT LINE (4W I/O) IN/OUT コネクタ (D-sub 15-pin) に接続します。

INTERCOM 4W line :

Connect the TALLY EXT LINE (4W I/O) IN/OUT connectors (D-sub 15-pin, female) to the an external

intercom 4W line with a D-sub 15-pin cable.

CAMERA

AUDIO OUT

EXT LINE (2W I/O) EXT LINE (2W I/O)

HD/SD COMPONENT OUT

VIDEO OUT

VIDEO IN

AUX

LANC

TC OUT

EXT.

AUDIO IN

SDI IN

OUT 1

OUT 2

OUT 1

OUT 2

SDI RET IN

TC IN

RET IN

TALLY EXT LINE (4W I/O)

IN

OUT

Y

Pb

Pr

AC IN

INTERCOM 4-wire line

CAMERA

AUDIO OUT

EXT LINE (2W I/O) EXT LINE (2W I/O)

HD/SD COMPONENT OUT

VIDEO OUT

VIDEO IN

AUX

LANC

TC OUT

EXT.

AUDIO IN

SDI IN

OUT 1

OUT 2

OUT 1

OUT 2

SDI RET IN

TC IN

RET IN

TALLY EXT LINE (4W I/O)

IN

OUT

Y

Pb

Pr

AC IN

インターカム 2W ラインに接続する場合は、EXT LINE (2W I/O) コネクタにキャノン 3P ケーブルで接続します。

INTERCOM 2W line :

Connect the EXT LINE (2W I/O) connectors (XLR 3-pin, female and male) to an external intercom 2W line

with a XLR 3-pin cable.

1

INTERCOM 2-wire line

Multi−core Studio System NIPROS ES−300 & ES−600
