インターカムヘッドセットの接続
INTERCOM HEADSET connection

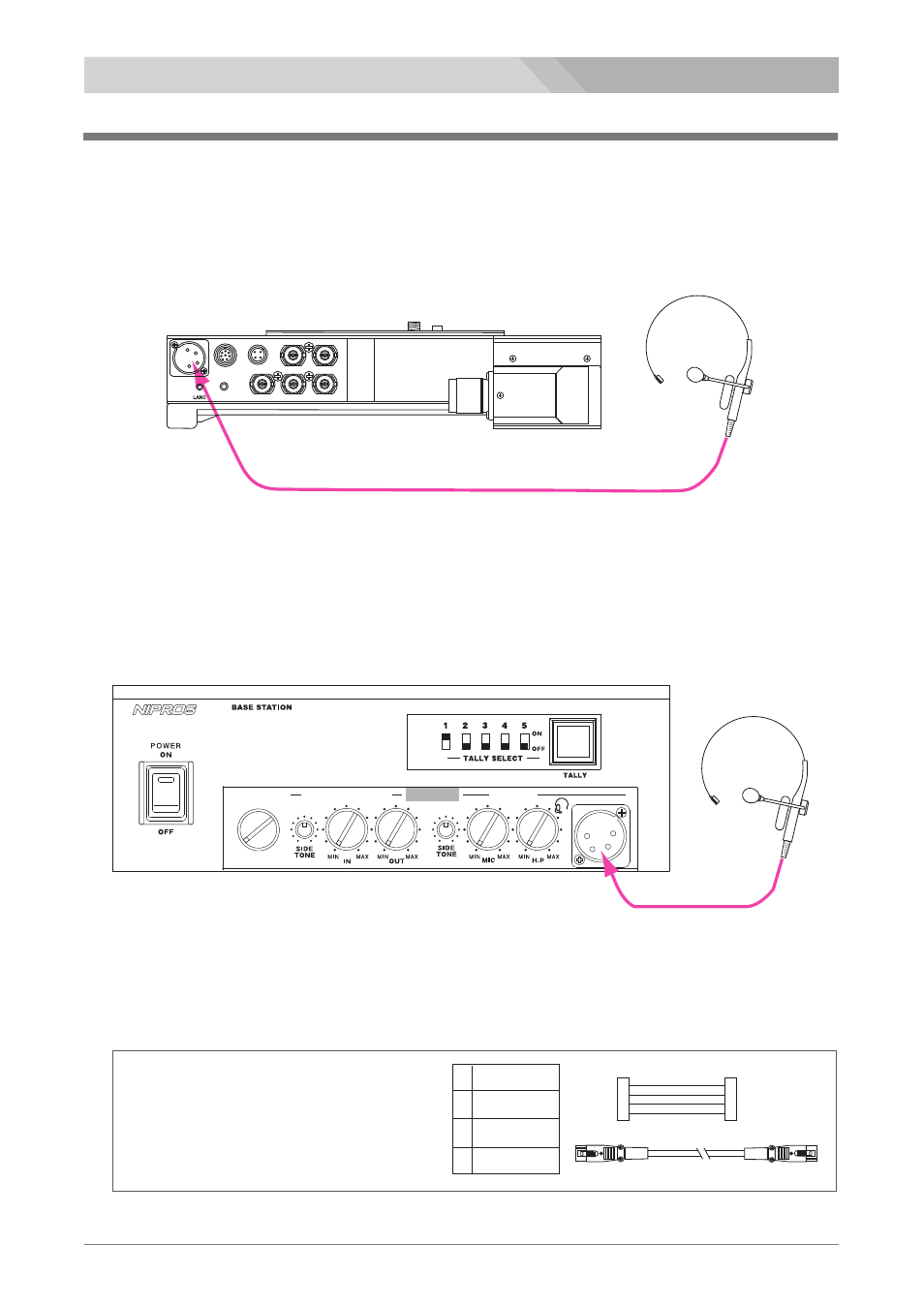

付属のヘッドセット DL-400 を INTERCOM HEADSET コネクタ ( キャノン 4 ピン , オス ) へ接続します。
DS-260 :
Connect the supplied headset DL-400 to the INTERCOM HEADSET connector(XLR 4-pin, male) on the
connector panel.
1
2
NIPROS/S26
キャノン4P オスコネクタのヘッドセットを使用される場合
は、キャノン4P メス-メスのケーブルをご用意下さい。
1
2
3
4
MIC(G)
MIC(H)
H.PHONE(G)
H.PHONE(H)
1
2
3
4
1
2
3
4
In case using a headset with the XLR 4-pin
male connector, prepare the cable with the
XLR 4-pin female connectors.
Multi−core Studio System NIPROS ES−300 & ES−6006
DS-560 :
Connect the supplied headset DL-400 to the INTERCOM HEADSET connector (XLR 4-pin, male) on the
front panel.
25
50
75
100
EXT LINE (4W I/O)
INTERCOM
HEADSET
ES-600
DL-400
CABLE
付属のヘッドセット DL-400 を INTERCOM HEADSET コネクタ ( キャノン 4 ピン , オス ) へ接続します。
ES-300
ES-600
DL-400
INTERCOM
HEADSET
EXT.AUDIO OUT
REMOTE
DC OUT
AUX
VIDEO IN
(VIDEO OUT/TC IN)
Pr IN
Pb IN
Y IN
