29
TC信号の接続

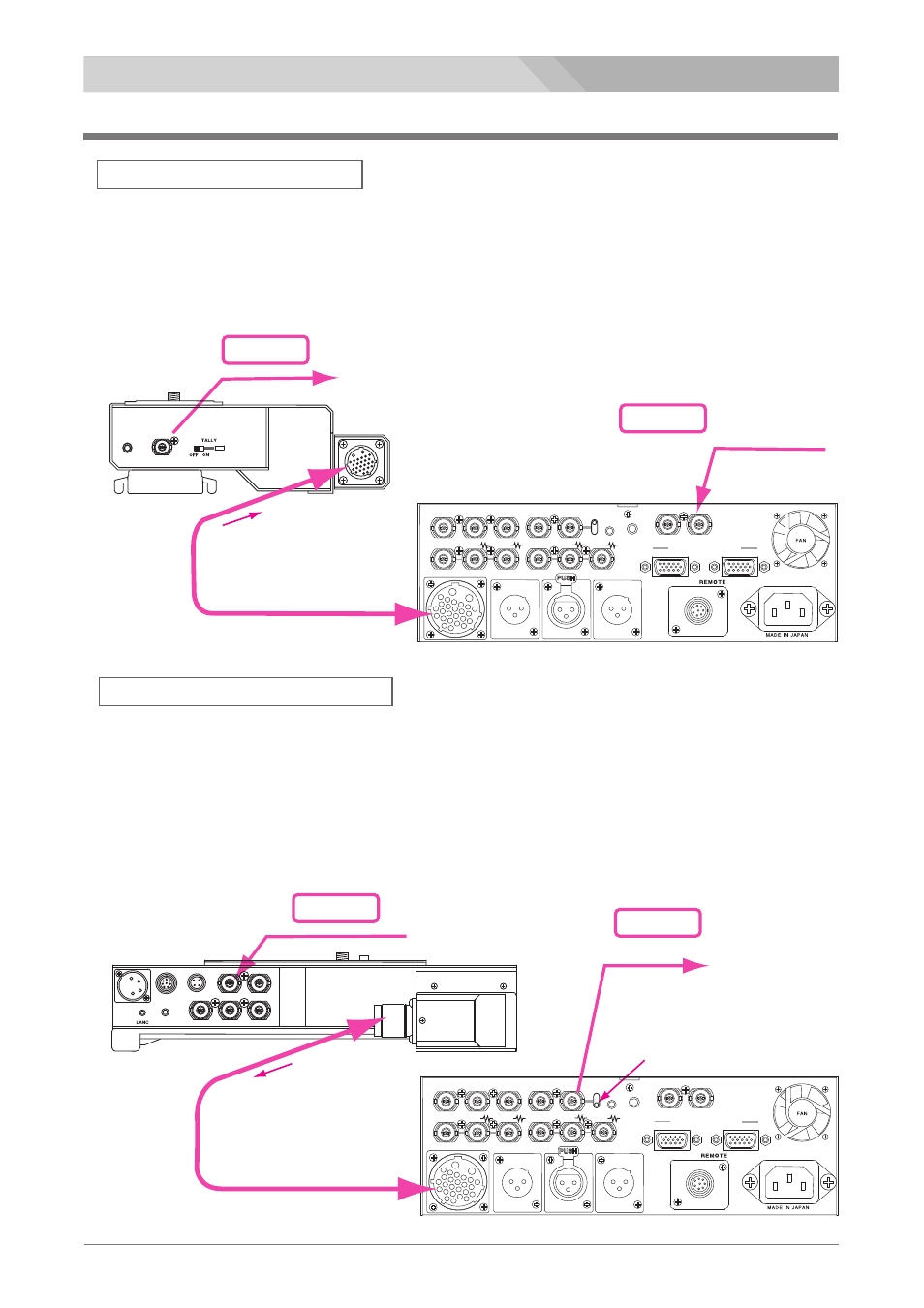

Time code signal connection
TC 信号を出力する場合は、DS-260 の TC OUT コネクタからカムコーダーへ BNC ケーブルで接続します。
Connect the TC OUT connector of ES-300 to a camcorder with a BNC cable.
1
TC signal
2
TC OUT
Connect the time code output signal from a camcorder to the AUX connector of ES-300 with a BNC cable.
TC 信号をカムコーダーから入力する場合は、DS-260 の AUX コネクタへカムコーダーから BNC ケーブルで接続します。
AUX
(VIDEO OUT/TC IN)
from
camcorder
ES-600
Select switch is set to
TC OUT position.
TC OUT
AUDIO IN
MADE IN JAPAN
CAMERA
AUDIO OUT
EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT
VIDEO OUT
VIDEO IN
AUX
LANC
TC OUT
EXT.
AUDIO IN
SDI IN
OUT 1
OUT 2
OUT 1
OUT 2
SDI RET IN
TC IN
RET IN
TALLY EXT LINE (4W I/O)
IN
OUT
Y
Pb
Pr
AC IN
CAMERA
AUDIO OUT
EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT
VIDEO OUT
VIDEO IN
AUX
LANC
TC OUT
EXT.
AUDIO IN
SDI IN
OUT 1
OUT 2
OUT 1
OUT 2
SDI RET IN
TC IN
RET IN
TALLY EXT LINE (4W I/O)
IN
OUT
Y
Pb
Pr
AC IN
Multi−core Studio System NIPROS ES−300 & ES−600
Time code signal to a camcorder :
to
camcorder
TC IN コネクタへ TC 信号発生器から BNC ケーブルで接続します。
Connect the time code output signal from a time code signal generator to the TC IN connector of ES-600
with a BNC cable.
2
Time code signal from a camcorder :
1
Connect the AUX connector of ES-600 to an external video equipment with a BNC cable and set the
VIDEO IN/TC OUT select switch to the TC OUT position.
TC 信号を出力する場合は、ES-600 の AUX コネクタから外部ビデオ機器へ BNC ケーブルで接続し、VIDEO IN/TC OUT 切替
スイッチを TC OUT にセットします。
ES-600
ES-300
ES-300
to external
video equipment
TC signal
TC signal
TC signal
from
Time code signal
generator
INTERCOM
HEADSET
EXT.AUDIO OUT
REMOTE
DC OUT
AUX
VIDEO IN
(VIDEO OUT/TC IN)
Pr IN
Pb IN
Y IN
