40

3

INTERCOM EXT LINE (4W I/O) IN/OUT/SIDE TONE volume adjustment

インターカム4W ライン入出力レベルの調整

4

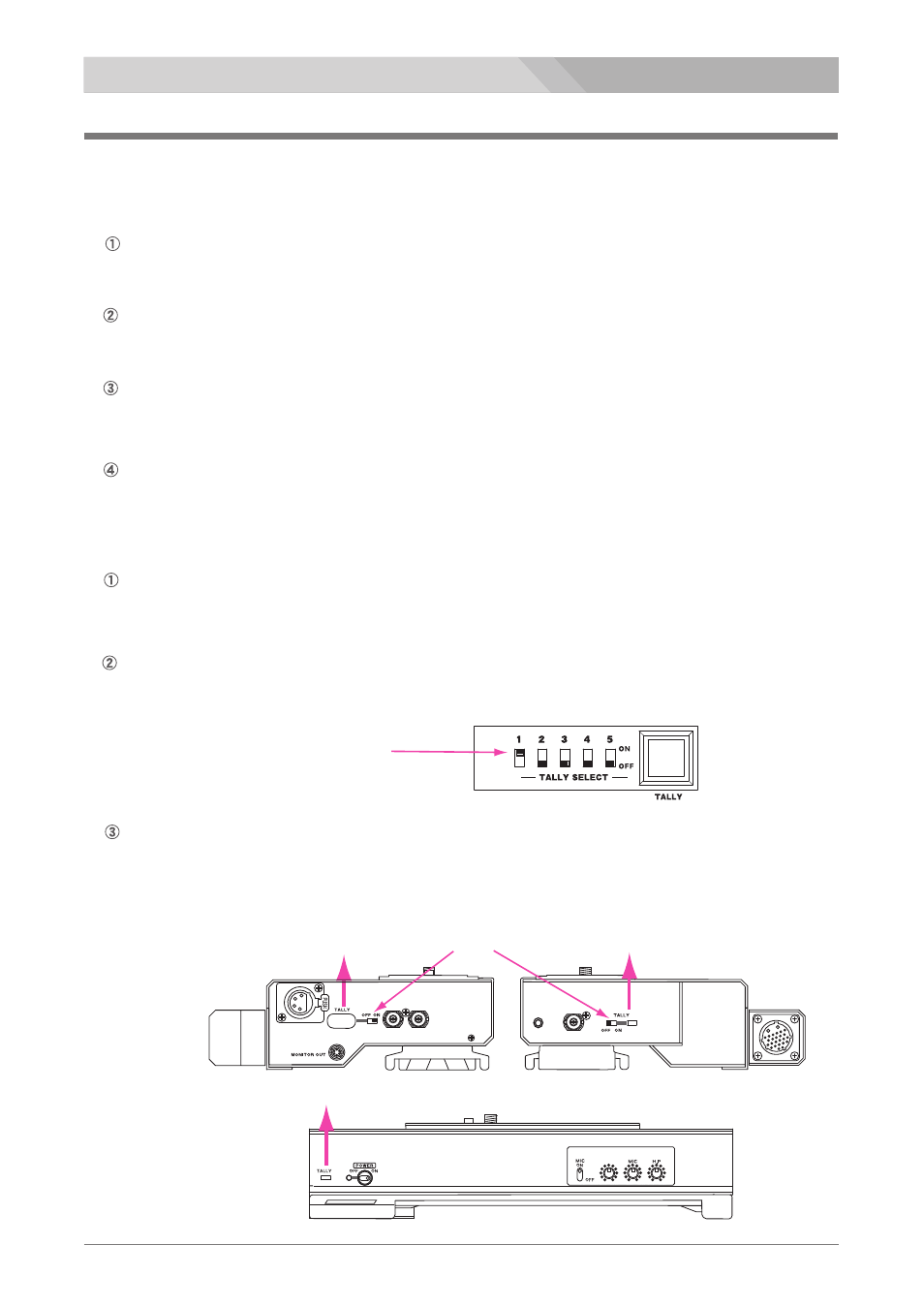

TALLY Indicator Setting

タリーの設定

前面パネルのタリーセレクトスイッチを点灯するように設定したいチャンネルのみONにします。

点灯させたいCHをONにします。

Set the switch to ON

to light up the TALLY indicator.

Select the TALLY channel and set the TALLY SELECT switch to the ON position to light up the TALLY

indicator.

Make sure that the TALLY indicator lights up when the corresponding tally channel of a switcher is

selected.

スイッチャーで選択されたチャンネルのタリー信号に対応して正しく点灯することを確認します。

Adjustments and settigs for DS-560

Multi−core Studio System NIPROS ES−300 & ES−600

H.P.を徐々に上げていきます。お互いの声がよく聞こえるようにEXT LINE 4W IN および OUTのボリュームを調整します。

外部インターカムライン(4W)を EXT LINE (2W I/O)コネクタに接続します。

Connect an external 4-wire intercom line to the TALLY EXT LINE (4W I/O) connector.

While listening to your own voice and the other operators voice, turn up the EXT LINE (4W

I/O) IN and OUT volumes gradually so that both the voices can be heard clearly.

自分の声が適当に聞こえるようにSIDE TONEで調整します。

Adjust the SIDE TONE volume to hear your own voice properly.

Put on the headset DL-400

ヘッドセットDL-400を装着します。

フロントタリー、リアタリー表示灯およびメインパネルのタリー表示灯が点灯することを確認します。

フロントとリアタリーにはそれぞれ ON/OFF スイッチが装備されていて、それぞれ独立で ON/OFF できます。

Make sure that the TALLY indicators on the front, rear, and main panel of the camera adaptor ES­300

light up. The TALLY ON/OFF switch is equipped for each of front and rear indicators to turn on or off

the lighting independently.

TALLY indicator

DC 12VOUT (MAX3.0A)

CAMERA ADAPTOR

DS-260

TALLY OUT

RET OUT

TC OUT

AUDIO IN

MADE IN JAPAN

TALLY indicator

front

rear

ON/OFF switch

INTERCOM

SIDE

TONE

CAMERA ADAPTOR

DS-260

TALLY indicator

main panel
