電源の接続

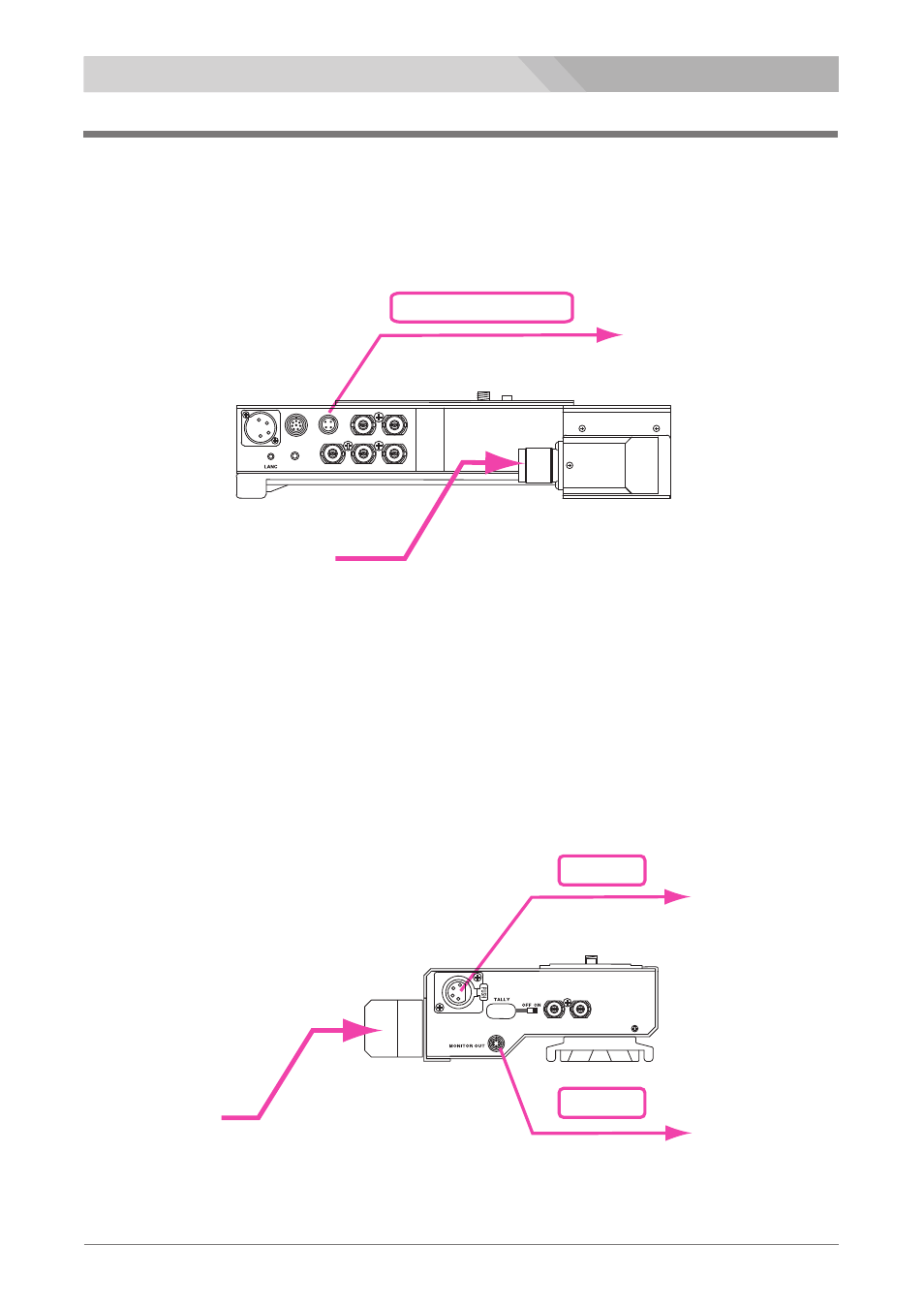

POWER supply connection
DC OUT コネクタ(4 ピン)からカムコーダーへ接続します。DC 12V および DC8.4V を供給します。
DC power supply to a camcorder :
Connect the DC OUT connector (4-pin) on the connector panel to a camcorder for the DC 12V and
8.4V power supply.
2
DC 12V OUT コネクタから、モニター、カメラライト、プロンプター、等へキャノン 4 ピンケーブルで接続します。
DC 電源を外部へ最大 30W 供給できます。
DC power supply to other equipment :
Connect the DC 12V OUT connector on the front panel of ES-300 to a monitor, a camera light, a prompter,
etc. with a XLR 4-pin cable. Maximum supply power is 30W.
3
DC 12VOUT
(MAX3.0A)
CAMERA ADAPTOR
DS-260
TALLY OUT
RET OUT
DC 12V
to
monitor,
camera light,
prompter,
etc.
to
camcorder
(26-pin cable)
(26-pin cable)
Multi−core Studio System NIPROS ES−300 & ES−6006
ES-300
ES-300
from ES-600
from ES-600
DC 12V
to
LVM-89W
(6-pin cable, VC-450)
(XLR 4-pin cable)
NOTE: DC 12V power can be supplied to the monitor LVM-89W via the supplied 6-pin cable(VC-450).
( 注 ) DC 12V 電源は、 LVM-89W へは付属の 6 ピンケーブル (VC-450) で供給することができます。
DC 12V and DC 8.4V
INTERCOM
HEADSET
EXT.AUDIO OUT
REMOTE
DC OUT
AUX
VIDEO IN
(VIDEO OUT/TC IN)
Pr IN
Pb IN
Y IN
