28

AUXコンポジットビデオ信号の接続

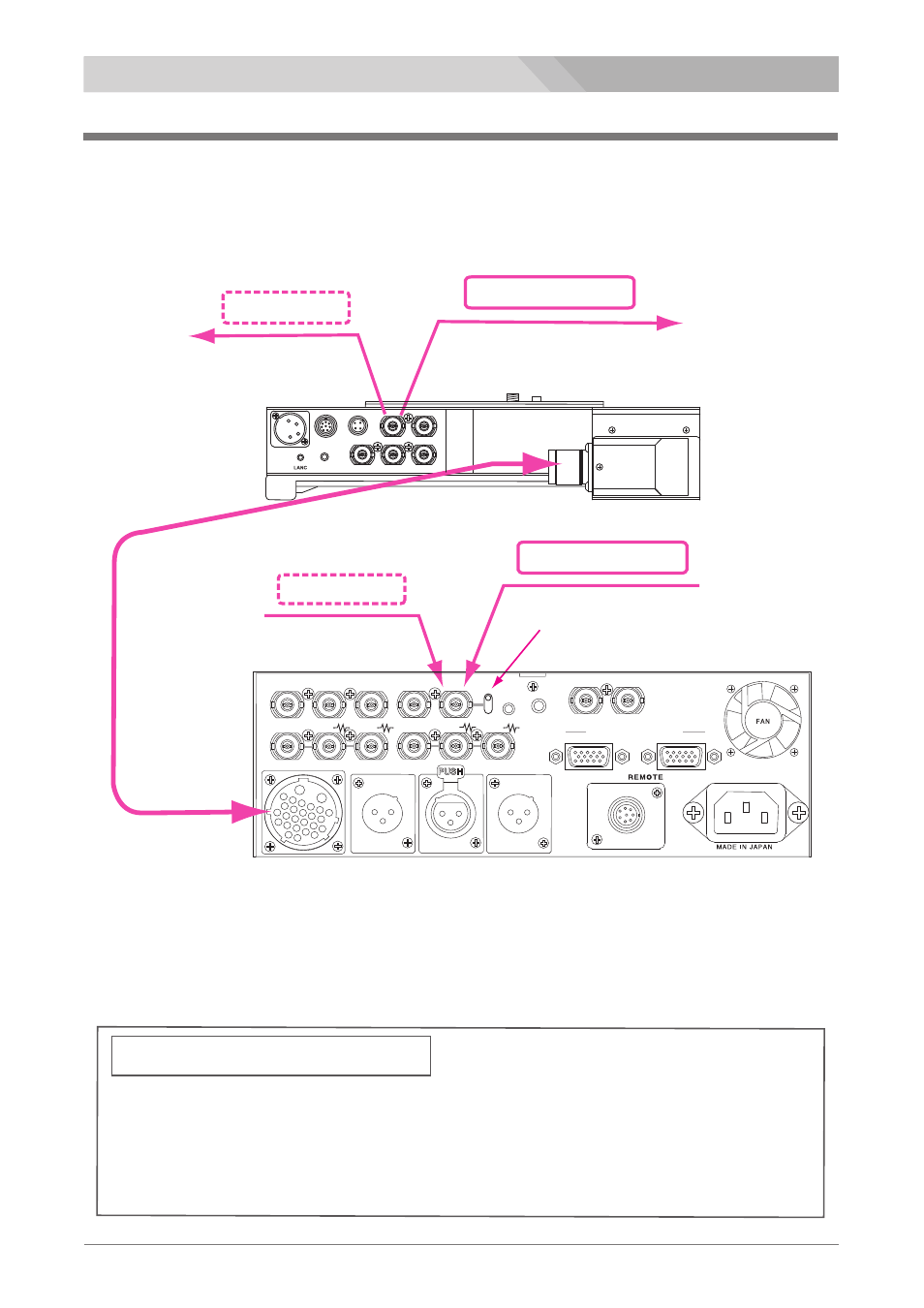

AUX composite video signal connection

ビデオコンポジット信号を出力する場合は、AUX (VIDEO OUT) コネクタへ BNC ケーブルで接続します。

( 注 : ベースステーション DS-560 の VIDEO IN/TC OUT 切替スイッチを VIDEO IN にセットします。)

Connect the AUX (VIDEO OUT/TC IN) connector to

a prompter, etc.

with a BNC cable.

(NOTE : Set the

VIDEO IN

/TC OUT select switch of the base station ES-600 to VIDEO IN position.)

1

composite video signal

2

AUX

(VIDEO OUT

/TC IN

)

ES-600

Select switch is set to VIDEO IN position.

CAMERA

AUDIO OUT

EXT LINE (2W I/O) EXT LINE (2W I/O)

HD/SD COMPONENT OUT

VIDEO OUT

VIDEO IN

AUX

LANC

TC OUT

EXT.

AUDIO IN

SDI IN

OUT 1

OUT 2

OUT 1

OUT 2

SDI RET IN

TC IN

RET IN

TALLY EXT LINE (4W I/O)

IN

OUT

Y

Pb

Pr

AC IN

外部ビデオ機器からのコンポジットビデオ信号は、AUX コネクタへ BNC ケーブルで接続し、VIDEO IN/TC OUT 切替スイッチ

を VIDEO IN にセットします。

Connect a commposite video output signal from an external video equipment to the AUX connector with

a BNC cable and set the VIDEO IN/TC OUT select switch to the VIDEO IN position.

to

prompter,

etc.

GENLOCK 信号を使用する場合は、DS-560 の AUX コネクタへ BNC ケーブルで接続し、切替スイッチを VIDEO IN に

セットします。

GENLOCK 信号の出力は、DS-260 の AUX (VIDEO OUT/TC IN) からカムコーダーへ BNC ケーブルで接続します。

In case of using the GENLOCK signal :

GENLOCK signal

GENLOCK signal

to

camcorder

Multi−core Studio System NIPROS ES−300 & ES−6006

composite video signal

Connect a GENLOCK signal from an external GENLOCK signal generator to the AUX connector of

DS-560 with a BNC cable and set the VIDEO IN/TC OUT select switch to the VIDEO IN position.

And connect the AUX (VIDEO OUT/TC IN) connector of DS-260 to a camcorder with a BNC cable.

ES-260

from

GENLOCK signal

generator

from

video equipment

INTERCOM

HEADSET

EXT.AUDIO OUT

REMOTE

DC OUT

AUX

VIDEO IN

(VIDEO OUT/TC IN)

Pr IN

Pb IN

Y IN
